CONSULT-II Reference Values

For CONSULT-II reference values, see Fig 1 .

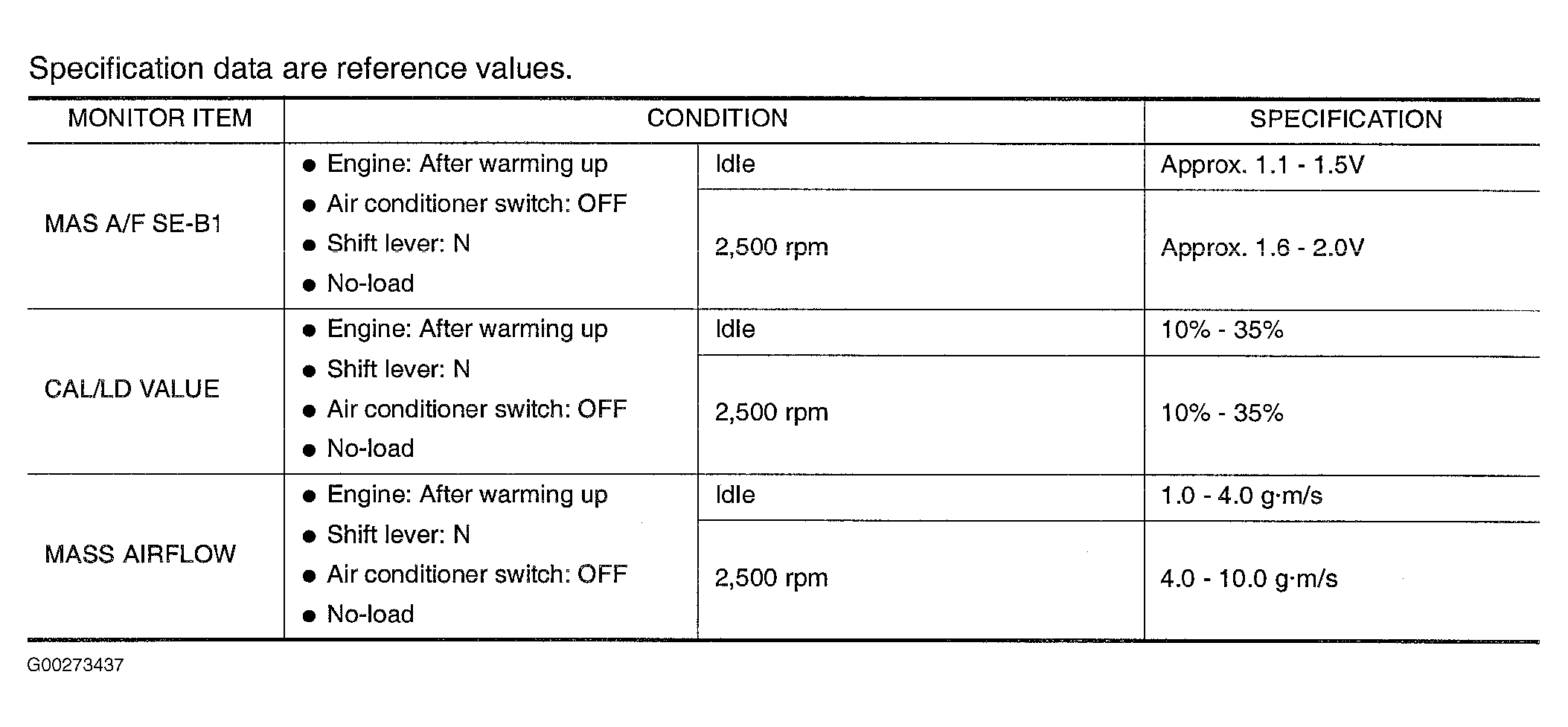

Fig 1: DTC P0101 CONSULT-II Reference Value In Data Monitor Mode
G00273437Courtesy of NISSAN MOTOR CO., U.S.A.
