Double-Cone Synchronizer

Double-cone synchronizer is used for 1st and 2nd gears to reduce operating force of the shift lever as shown.

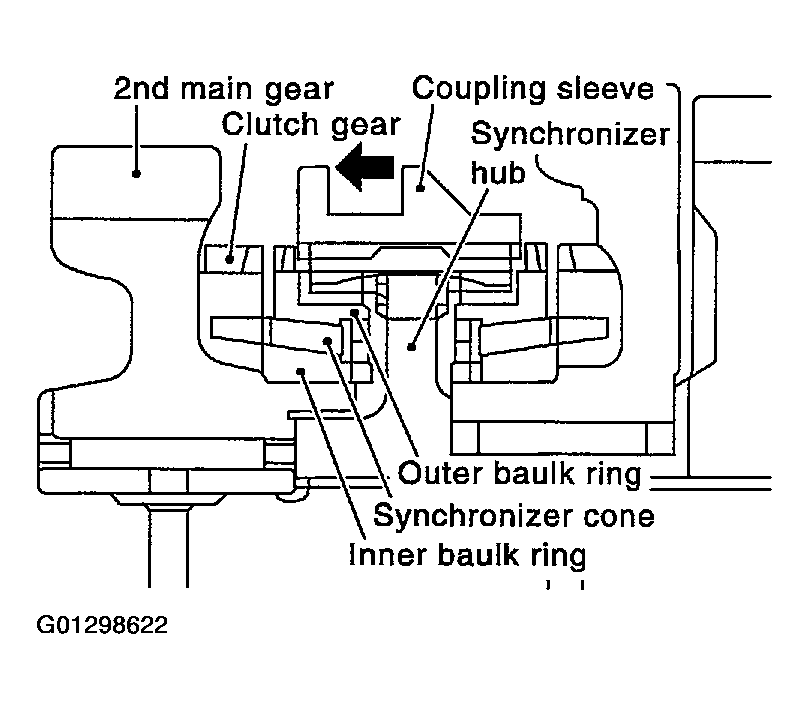

Fig 1: Locating Synchronizer Hub, Synchronizer Sleeve And 2nd Main Gear
G01298622Courtesy of NISSAN MOTOR CO., U.S.A.
