On Board Diagnosis Logic

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This self-diagnosis has the one trip detection logic.

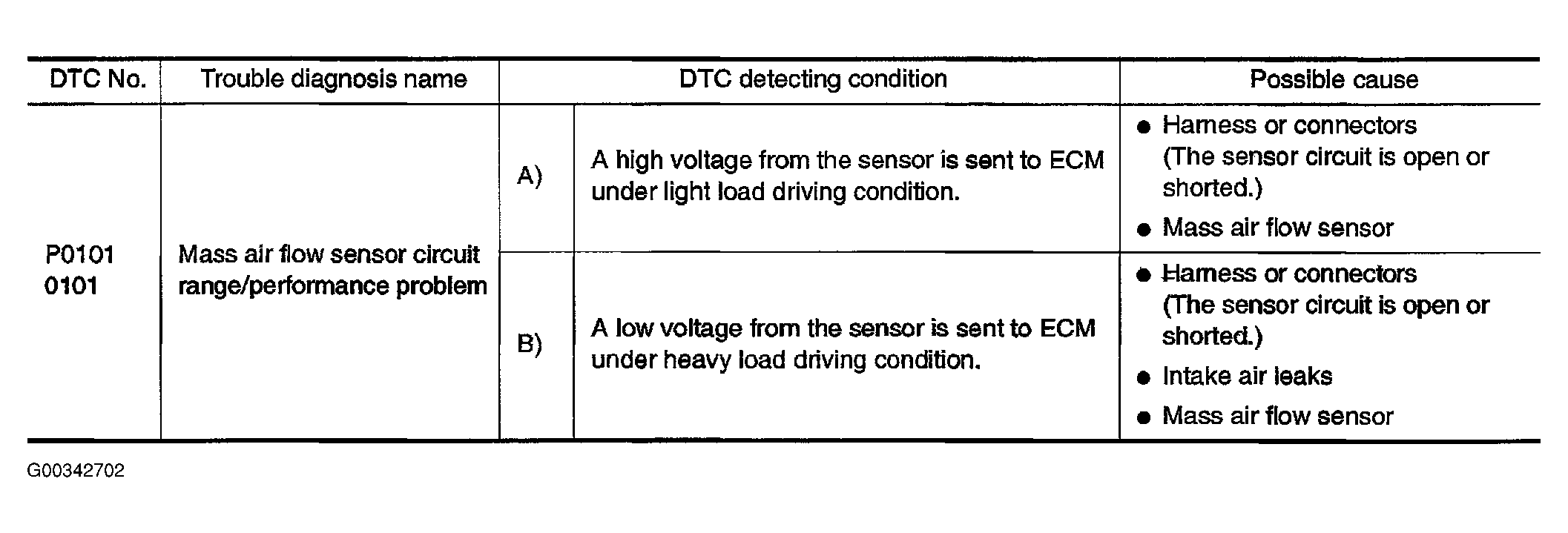

Fig 1: Diagnosis Logic
G00342702Courtesy of NISSAN MOTOR CO., U.S.A.
