Component Inspection

For component inspection, see Fig 1 .

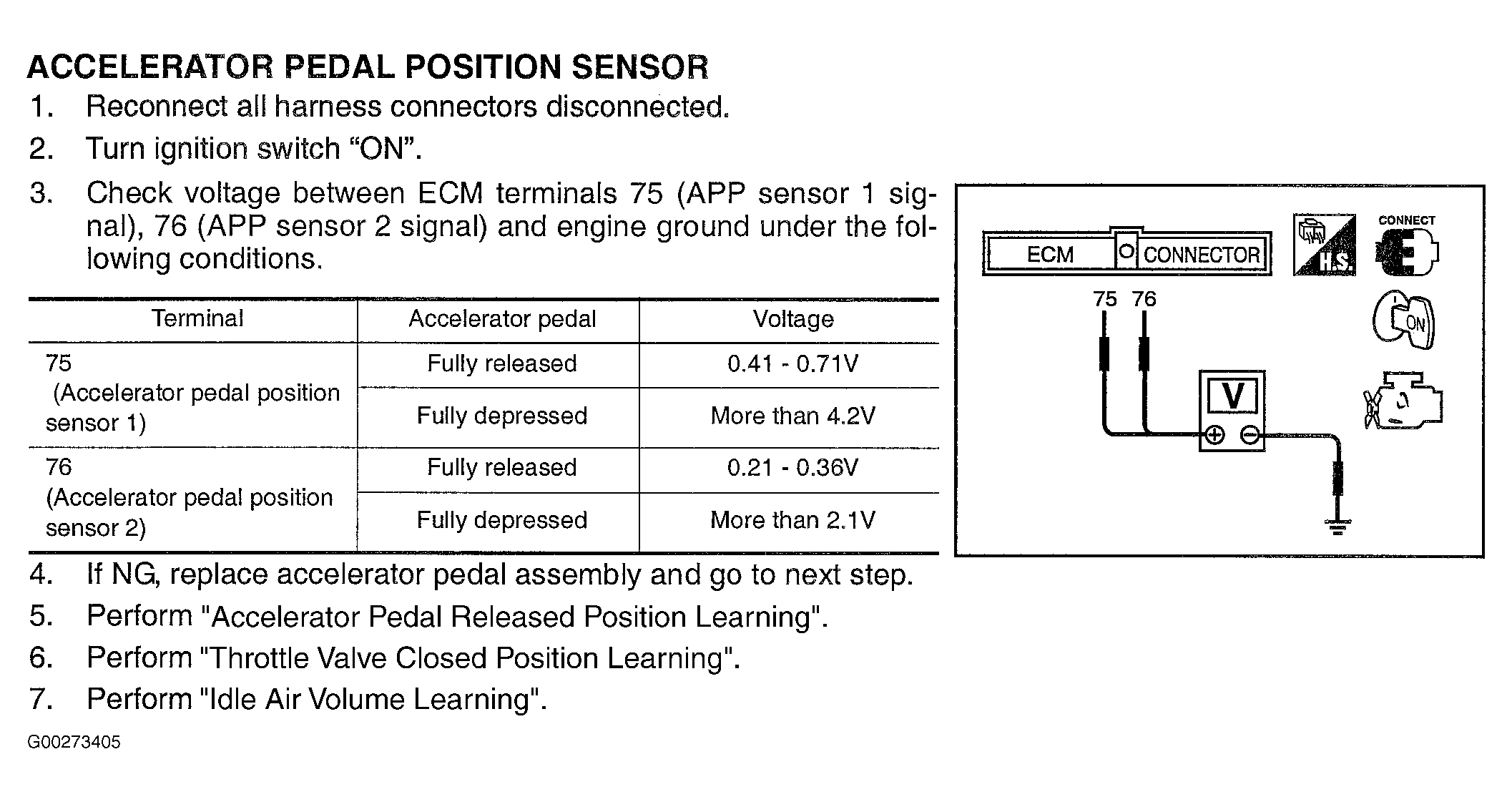

Fig 1: DTC P2138 Component Inspection
G00273405Courtesy of NISSAN MOTOR CO., U.S.A.
