Data Monitor

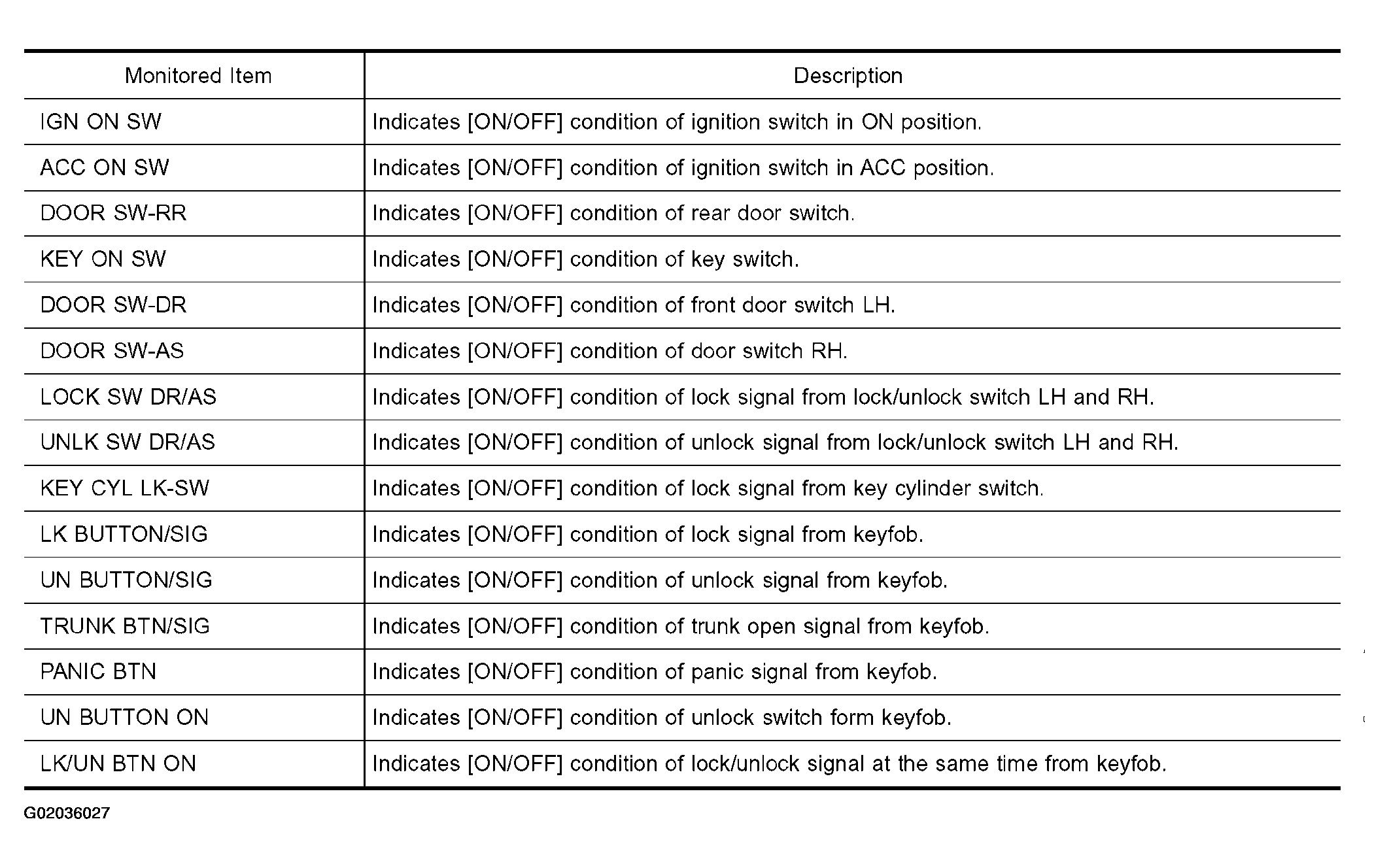

Fig 1: MULTI REMOTE ENT - Data Monitor - Monitored Item Description
G02036027Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Even though TRUNK BTN/SIG is actually displayed on the CONSULT-II screen, it is not equipped, therefore, they cannot be activated.
