Control Cable

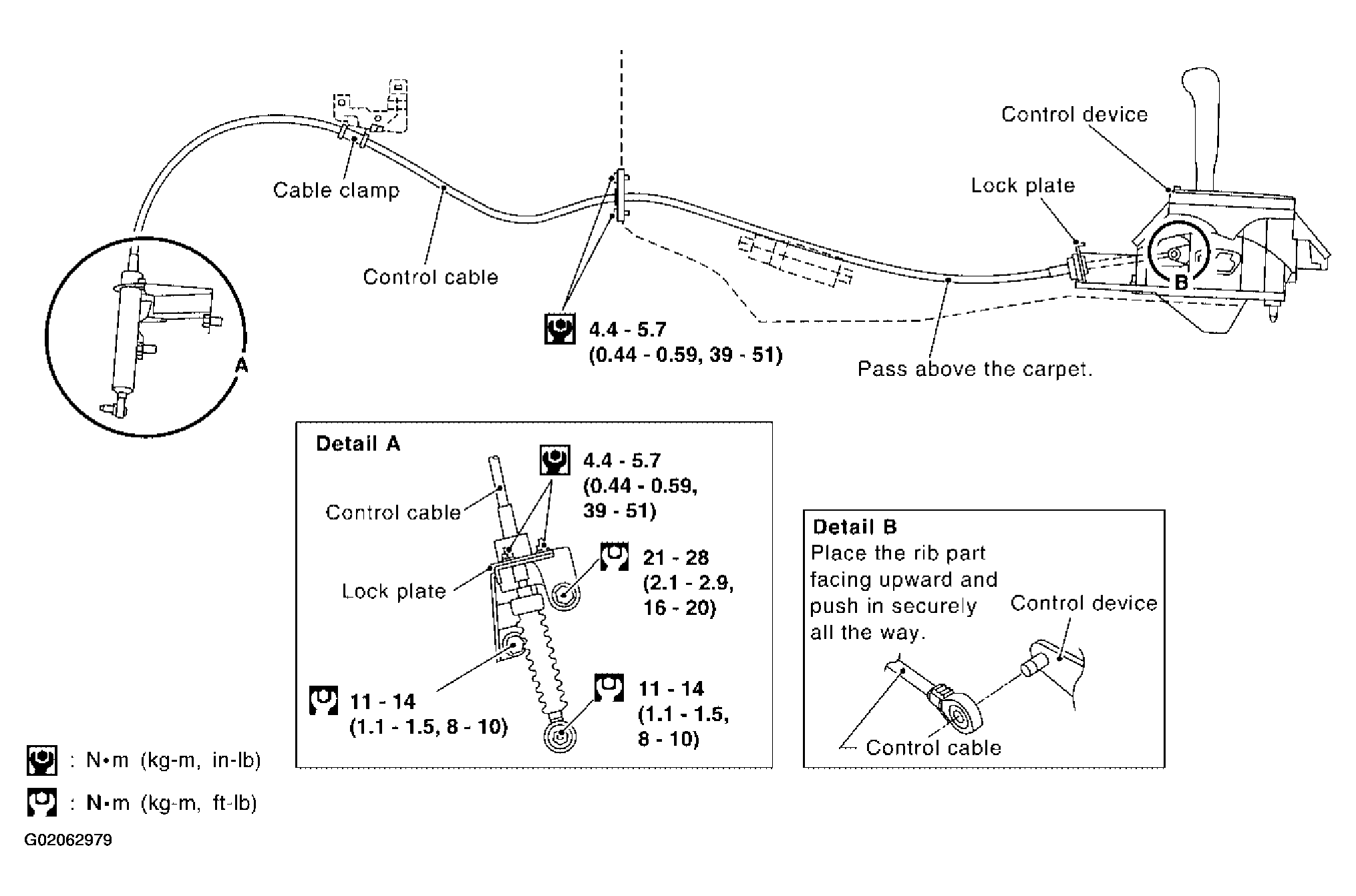

Fig 1: Identifying Control Cable
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
