Control Valve Assembly: Components

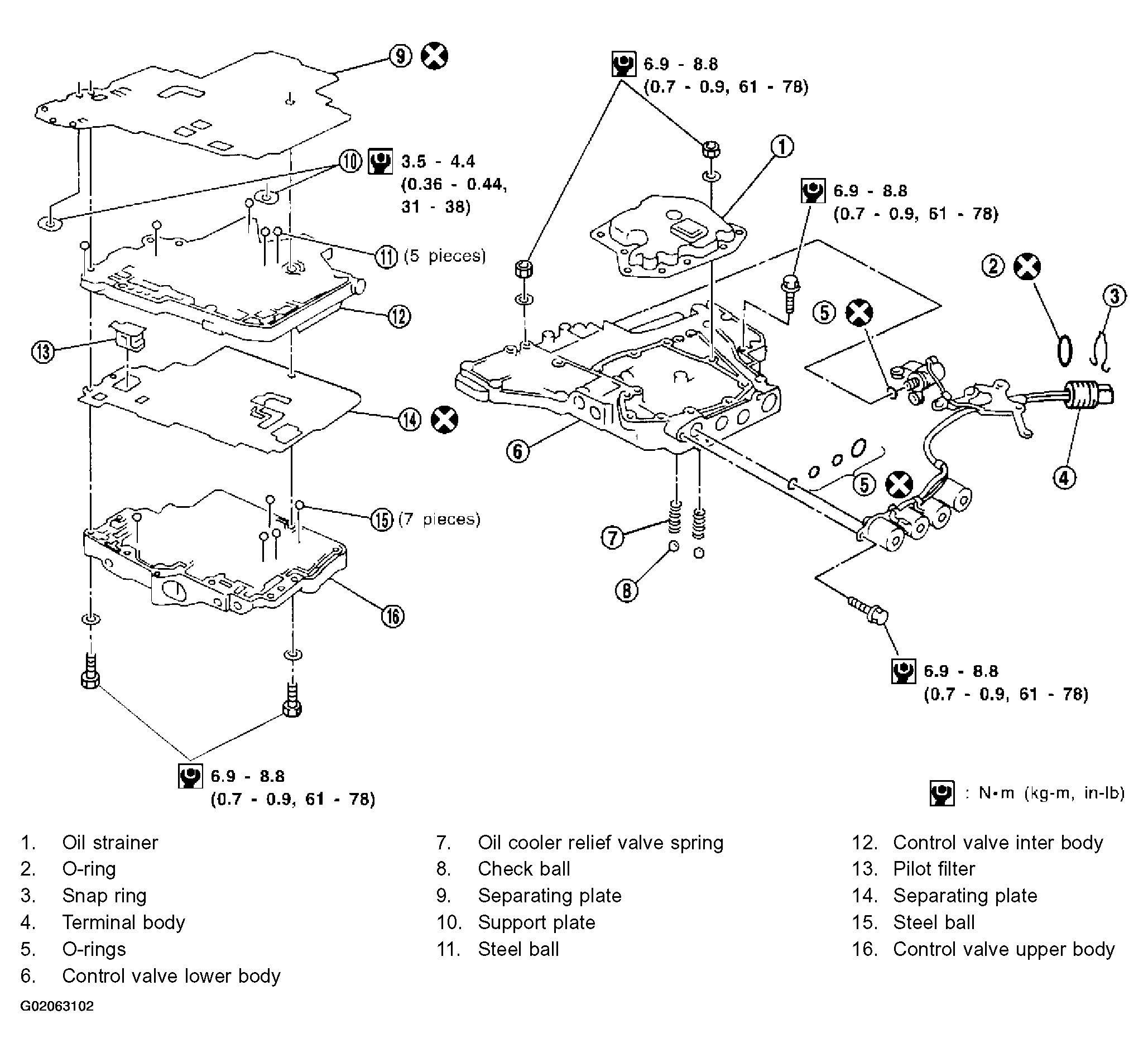

Fig 1: Identifying Control Valve Assembly Components
G02063102Courtesy of NISSAN MOTOR CO., U.S.A.
