Work Flow For Navigation Inspection

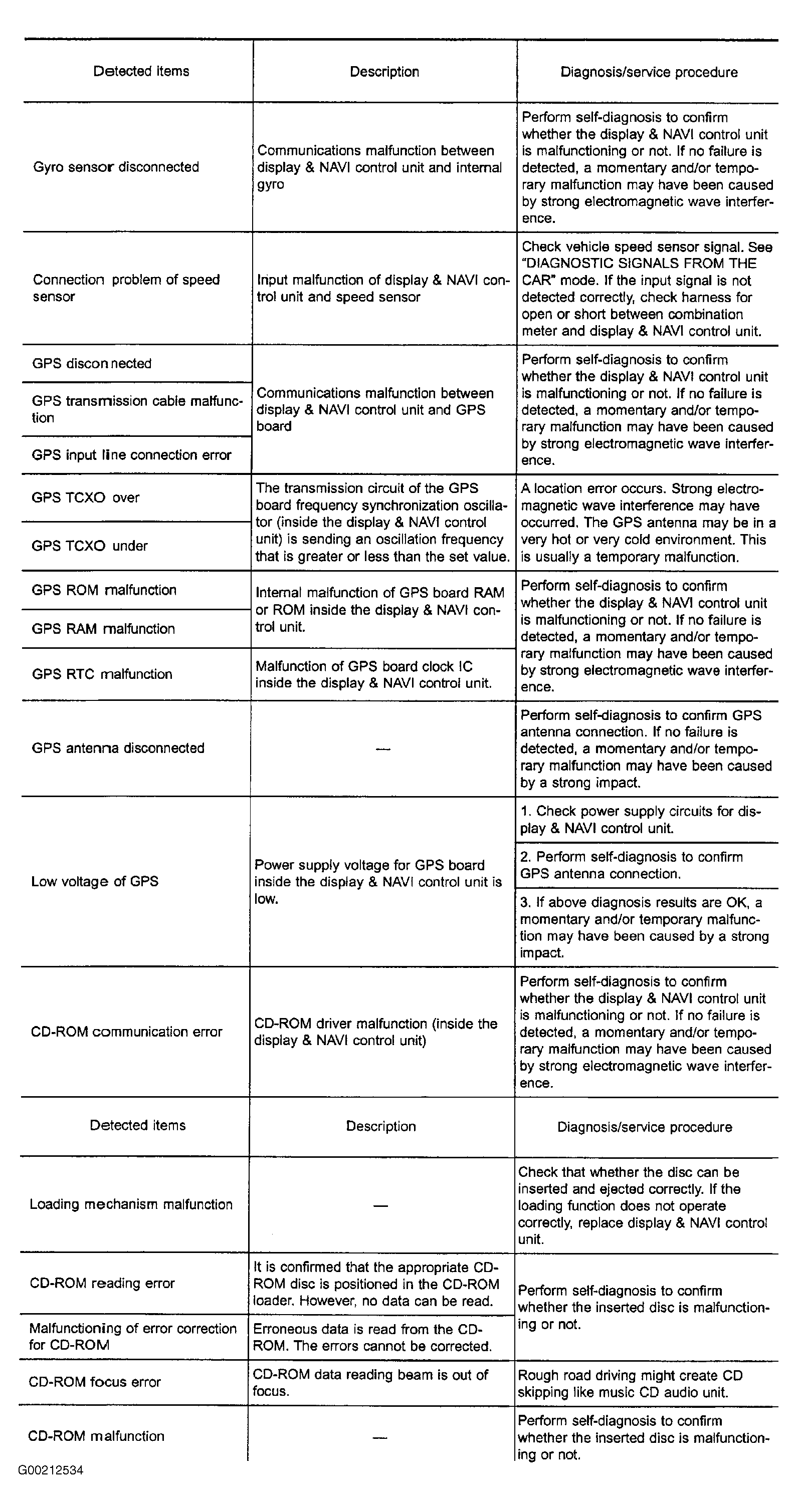

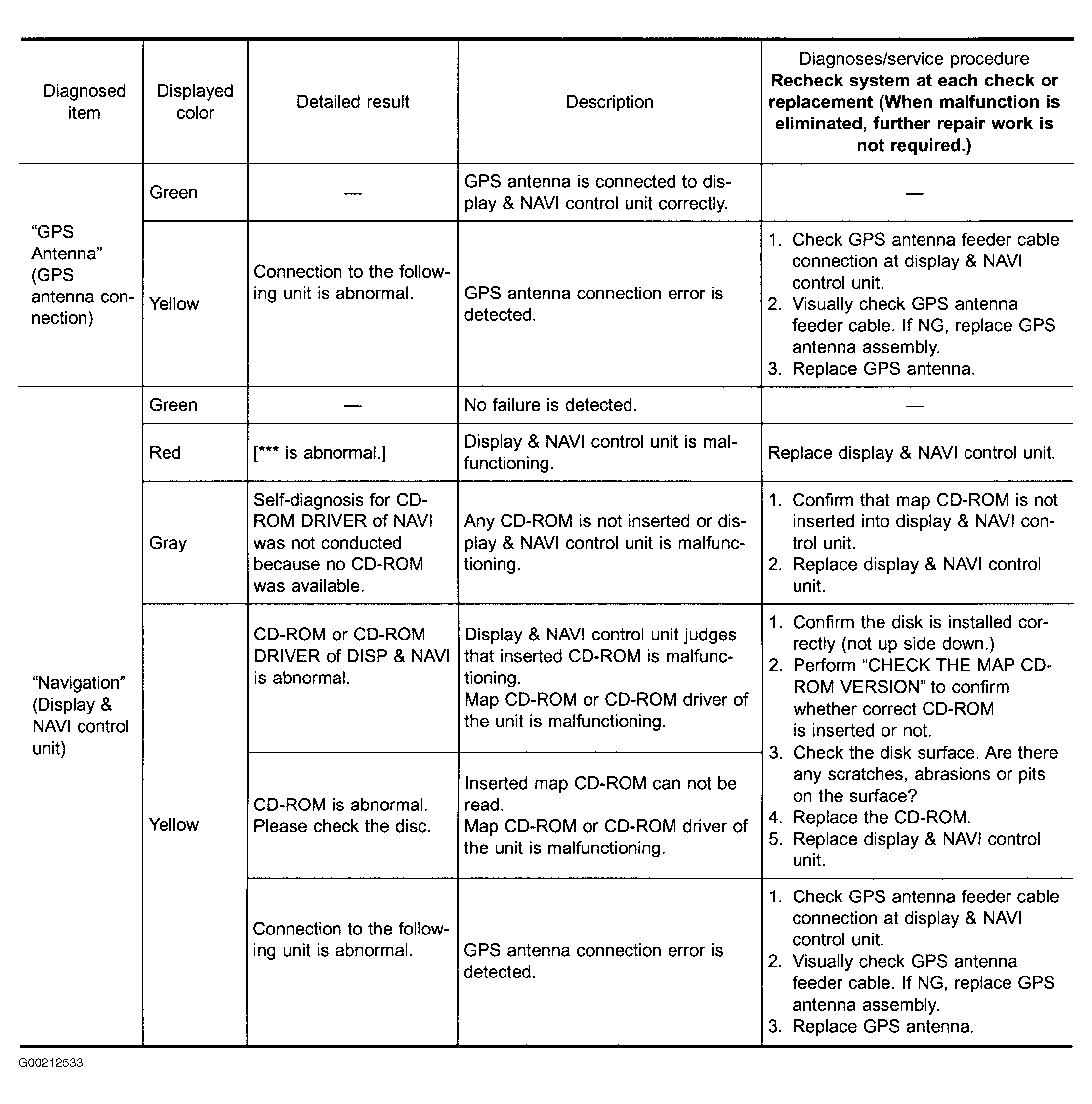

NOTE: For system might not be malfunctioning, see THIS CONDITION IS NOT ABNORMAL , for self-diagnosis, see SELF-DIAGNOSIS , for history of errors, see HISTORY OF ERRORS MODE , for diagnosis of signals from the car, see "DIAGNOSTIC SIGNALS FROM THE CAR" MODE , for driving test, see DRIVING TEST , for self diagnosis results, see Figure in self-diagnosis and for history of errors table, see Figure in history of errors mode.

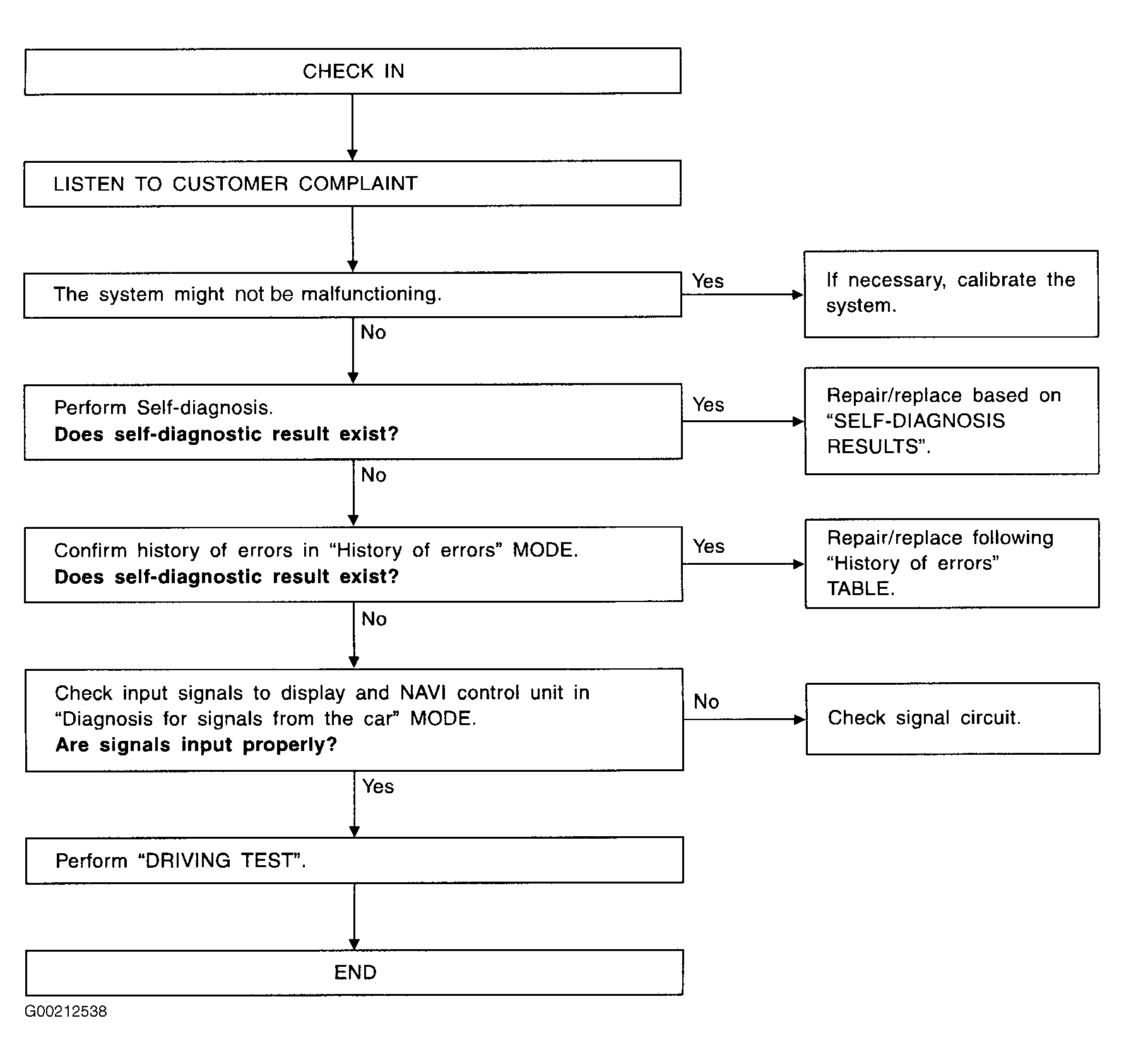

Fig 1: Identifying Work Flow For Navigation Inspection
G00212538Courtesy of NISSAN MOTOR CO., U.S.A.
