Circuit Identification

For circuit identification, see Fig 1-Fig 2 .

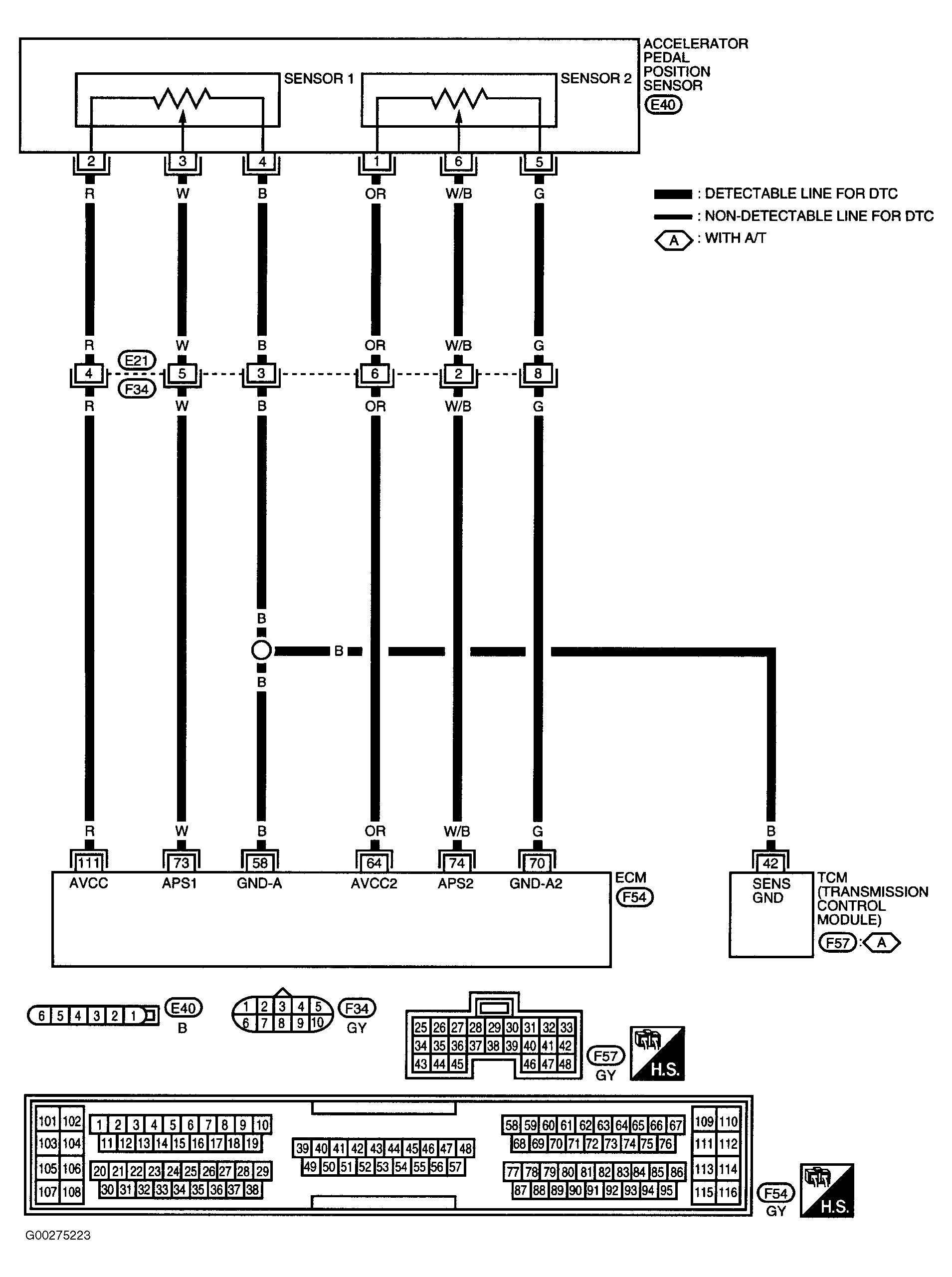

Fig 1: Circuit Identification For DTC P2138: APP Sensor (2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

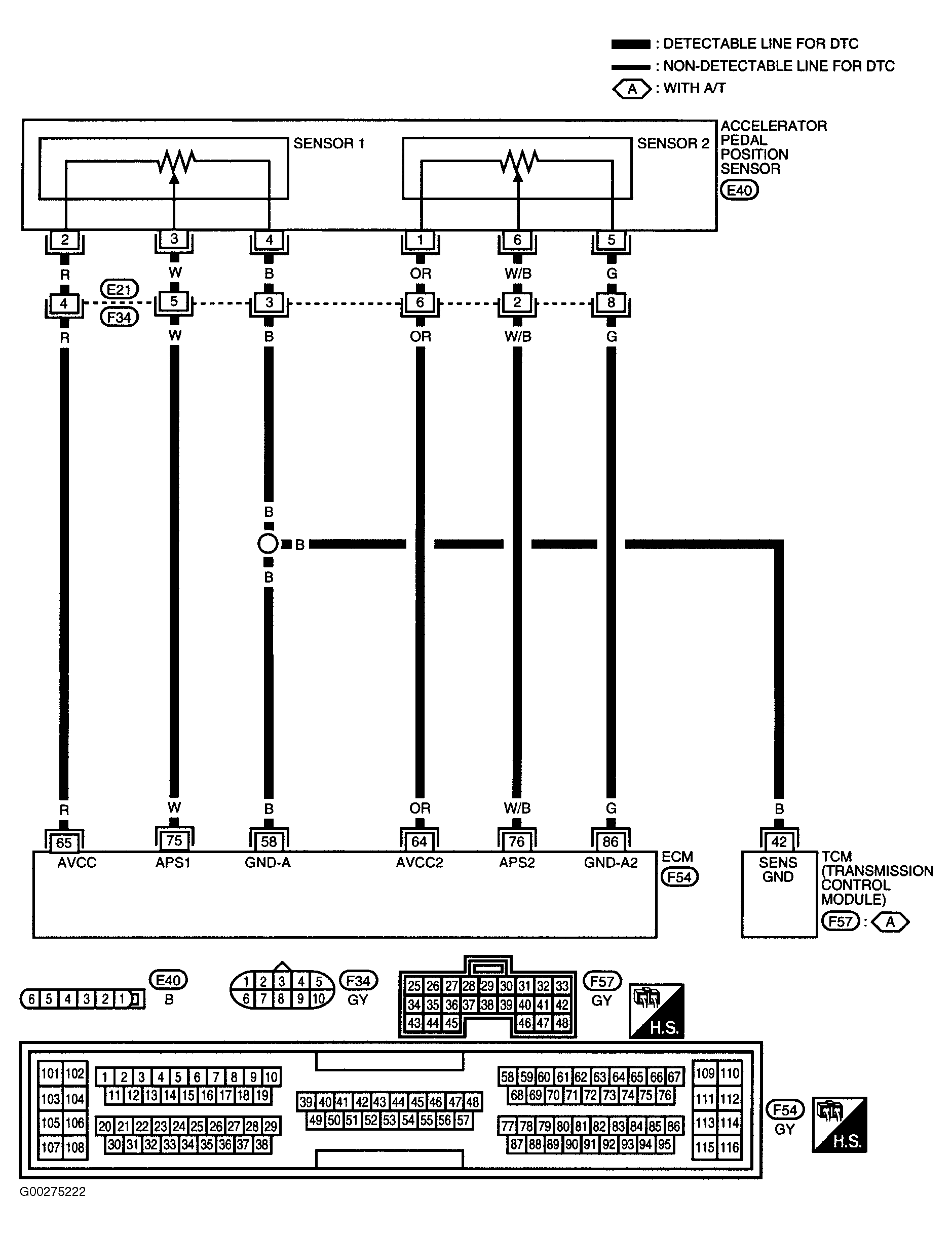

Fig 2: Circuit Identification For DTC P2138: APP Sensor (3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
