DTC P1572: Automatic Speed Control Device (ASCD) Brake Switch
>>
CONSULT-II Reference Value In Data Monitor Mode
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
CONSULT-II Reference Value In Data Monitor Mode
For CONSULT-II reference value in data monitor mode, see
Fig 1
.

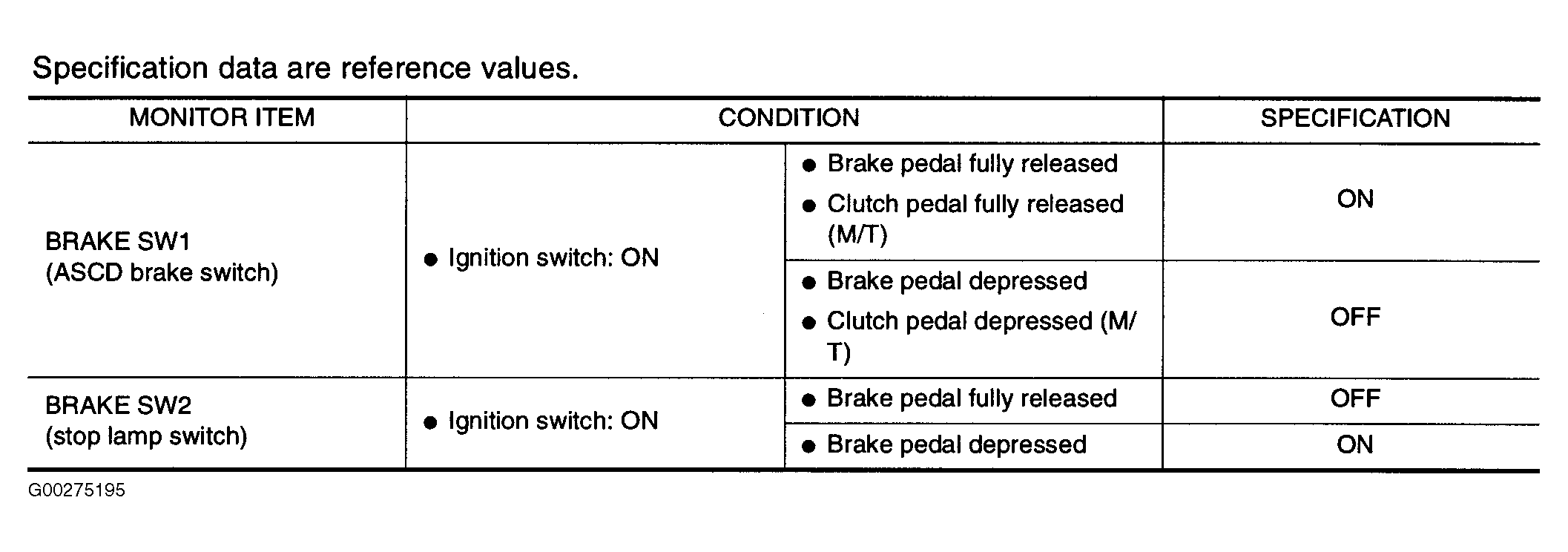

Fig 1: CONSULT-II Reference Value In Data Monitor Mode For DTC P1572: ASCD Brake Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
