Component Inspection

For component inspection, see Fig 1.

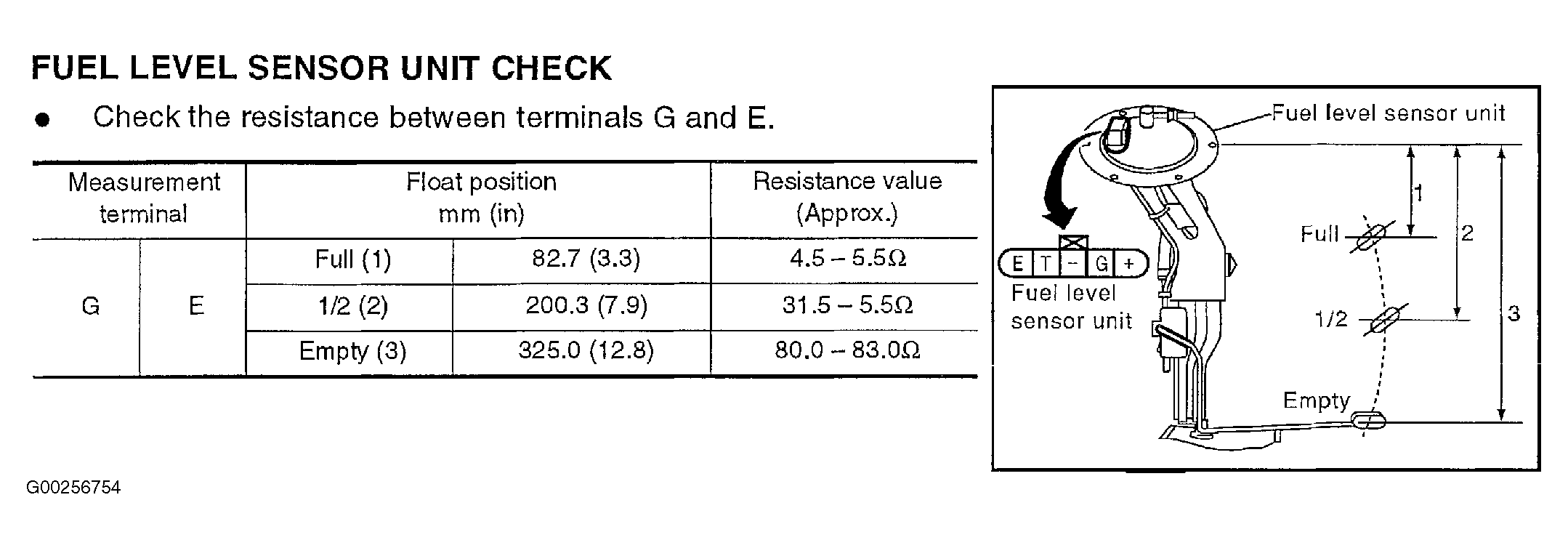

Fig 1: Component Inspection For DTC P0460: Fuel Level Sensor
G00256754Courtesy of NISSAN MOTOR CO., U.S.A.
