Diagnostic Procedure

NOTE: For component inspection, see COMPONENT INSPECTION  and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure, see Fig 1 - Fig 2 .

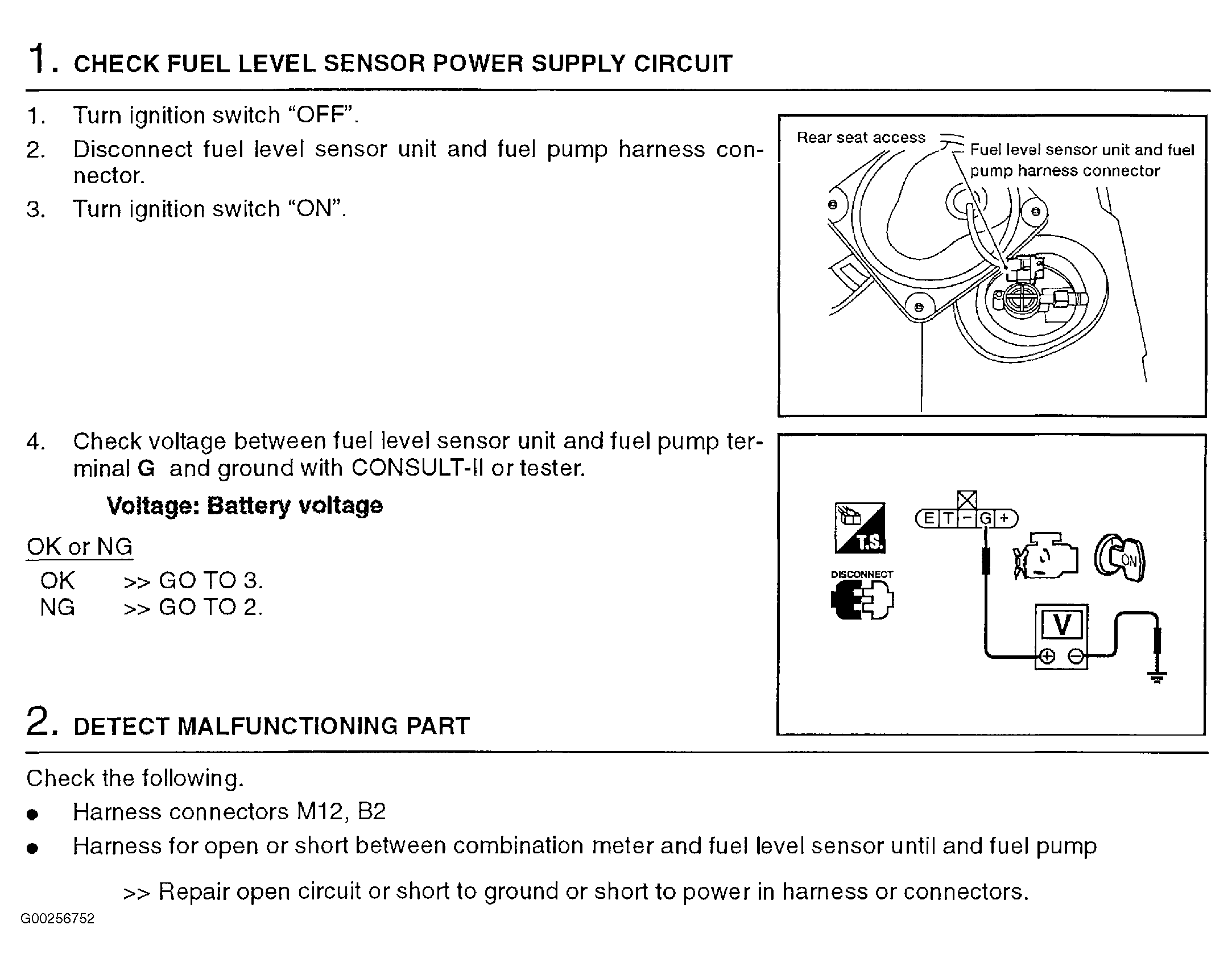

Fig 1: Identifying Diagnostic Procedure For DTC P0460: Fuel Level Sensor (Steps 1-2 Of 8)
G00256752Courtesy of NISSAN MOTOR CO., U.S.A.

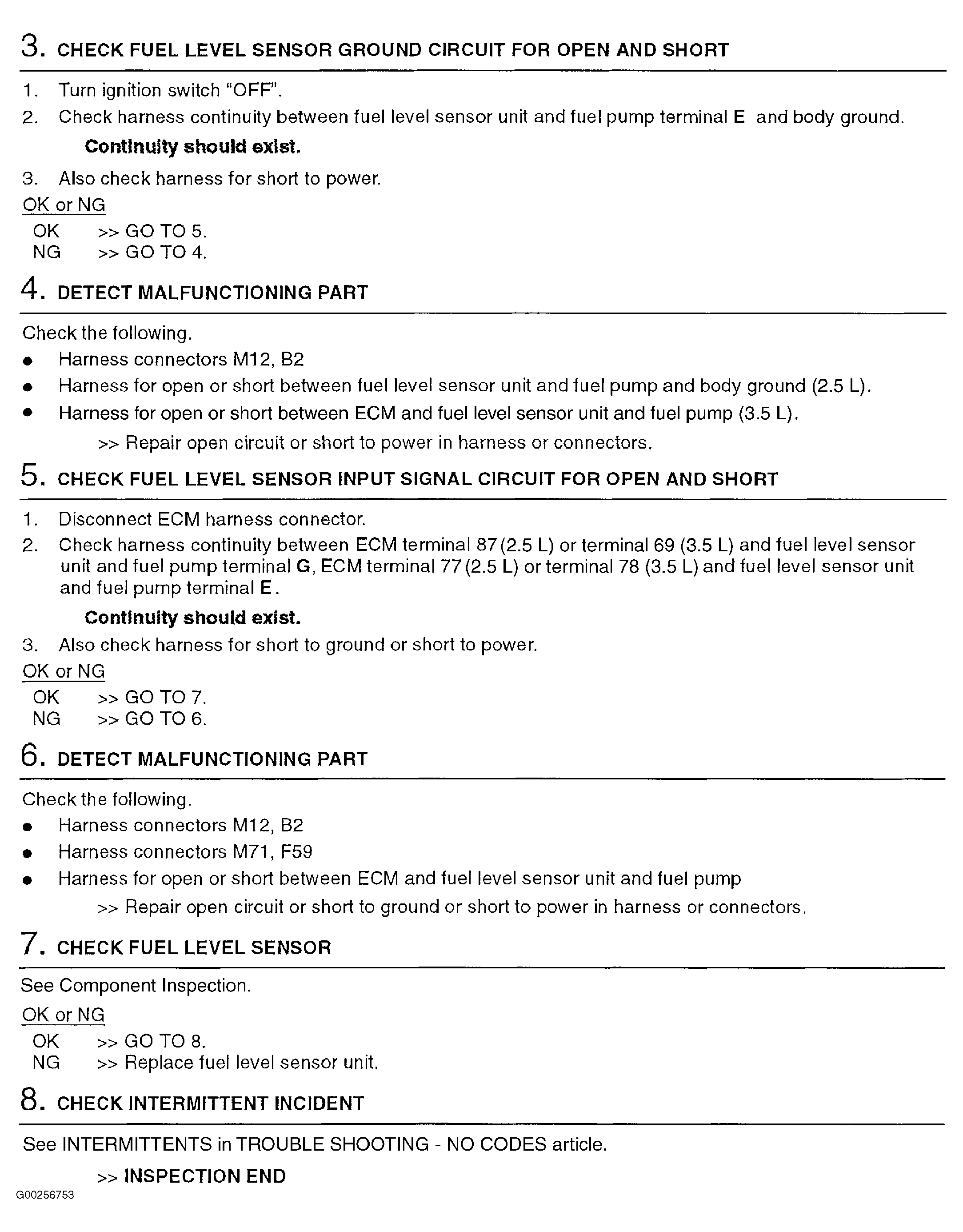

Fig 2: Identifying Diagnostic Procedure For DTC P0460: Fuel Level Sensor (Steps 3-8 Of 8)
G00256753Courtesy of NISSAN MOTOR CO., U.S.A.
