Component Inspection

ASCD Brake Switch, ASCD Clutch Switch & Stop Lamp Switch

For component inspection, see Fig 1.

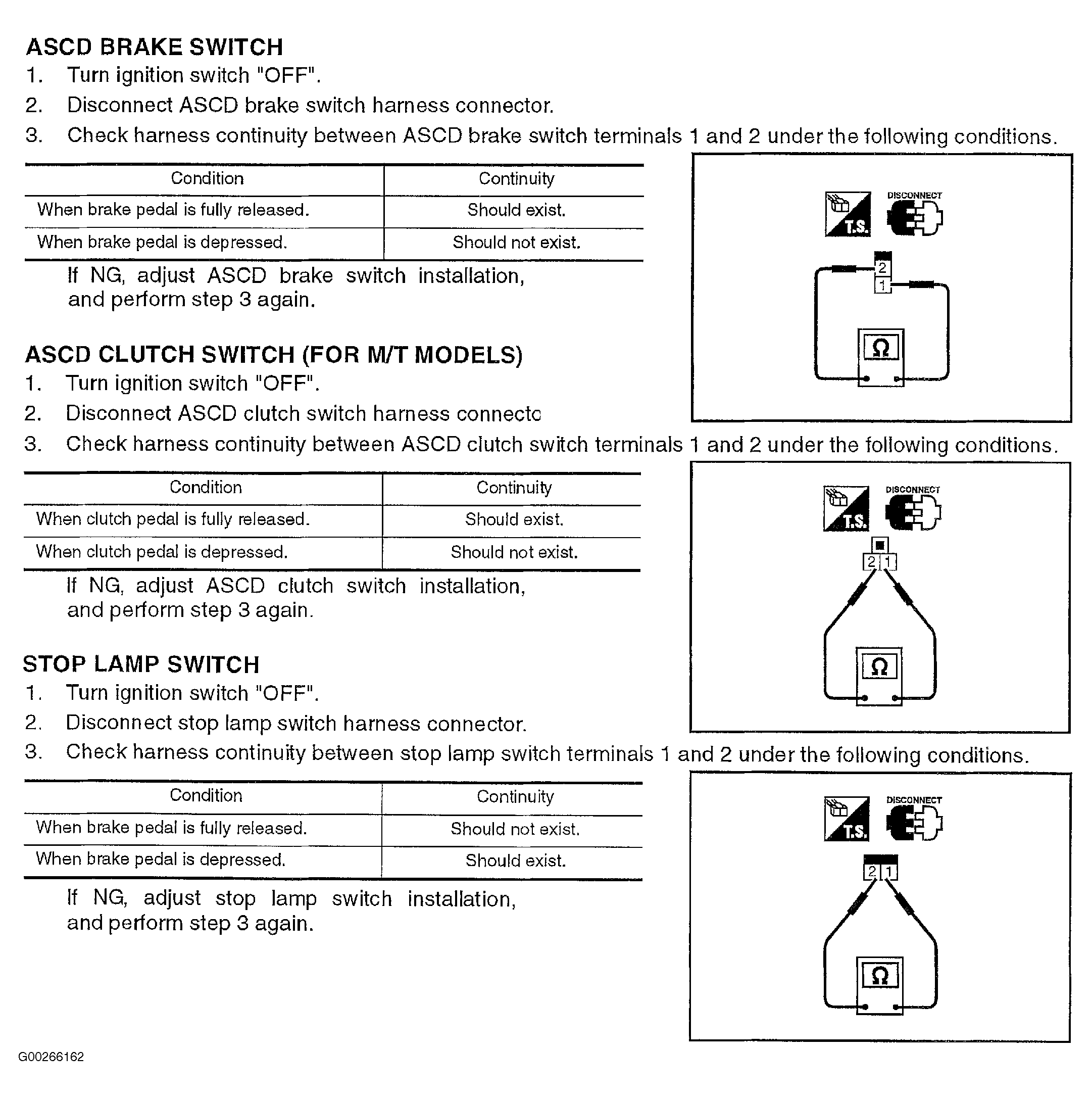

Fig 1: Component Inspection For DTC P1572
G00266162Courtesy of NISSAN MOTOR CO., U.S.A.
