DTC P0453: EVAP Control System Pressure Sensor
>>
Component Inspection (2.5L)
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.
Component Inspection (2.5L)
EVAP Control System Pressure Sensor
For component inspection, see
Fig 1
.

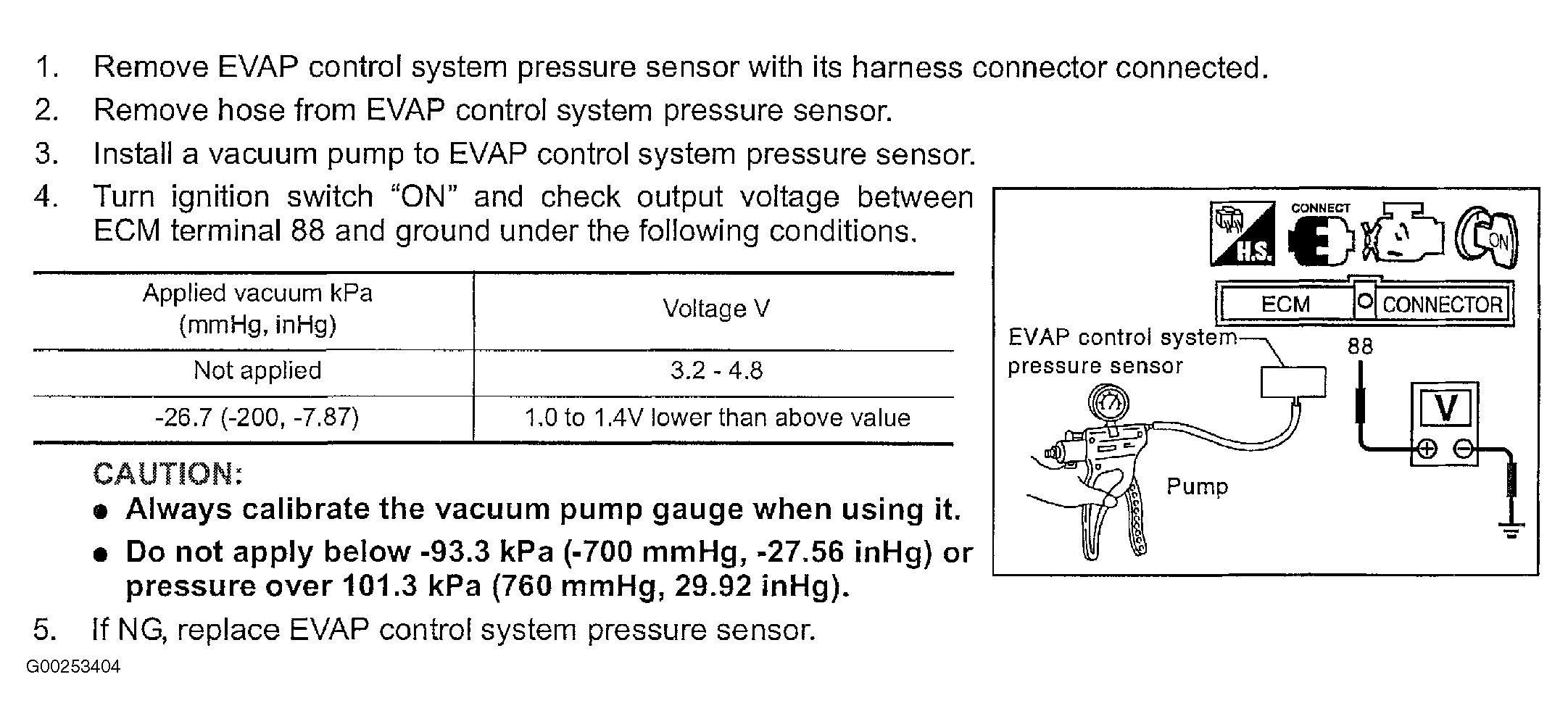

Fig 1: Component Inspection For DTC P0453: EVAP Control System Pressure Sensor (2.5L)
Courtesy of NISSAN MOTOR CO., U.S.A.
