DTC P0462: Fuel Level Sensor Circuit Low Input

NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

NOTE: If DTC U1000 or DTC U1001 is also set, perform diagnosis for DTC U1000 or DTC U1001 first. See DTC U1000 OR DTC U1001: CAN COMMUNICATION LINE .

For diagnostic procedures, see Fig 1 and Fig 2 .

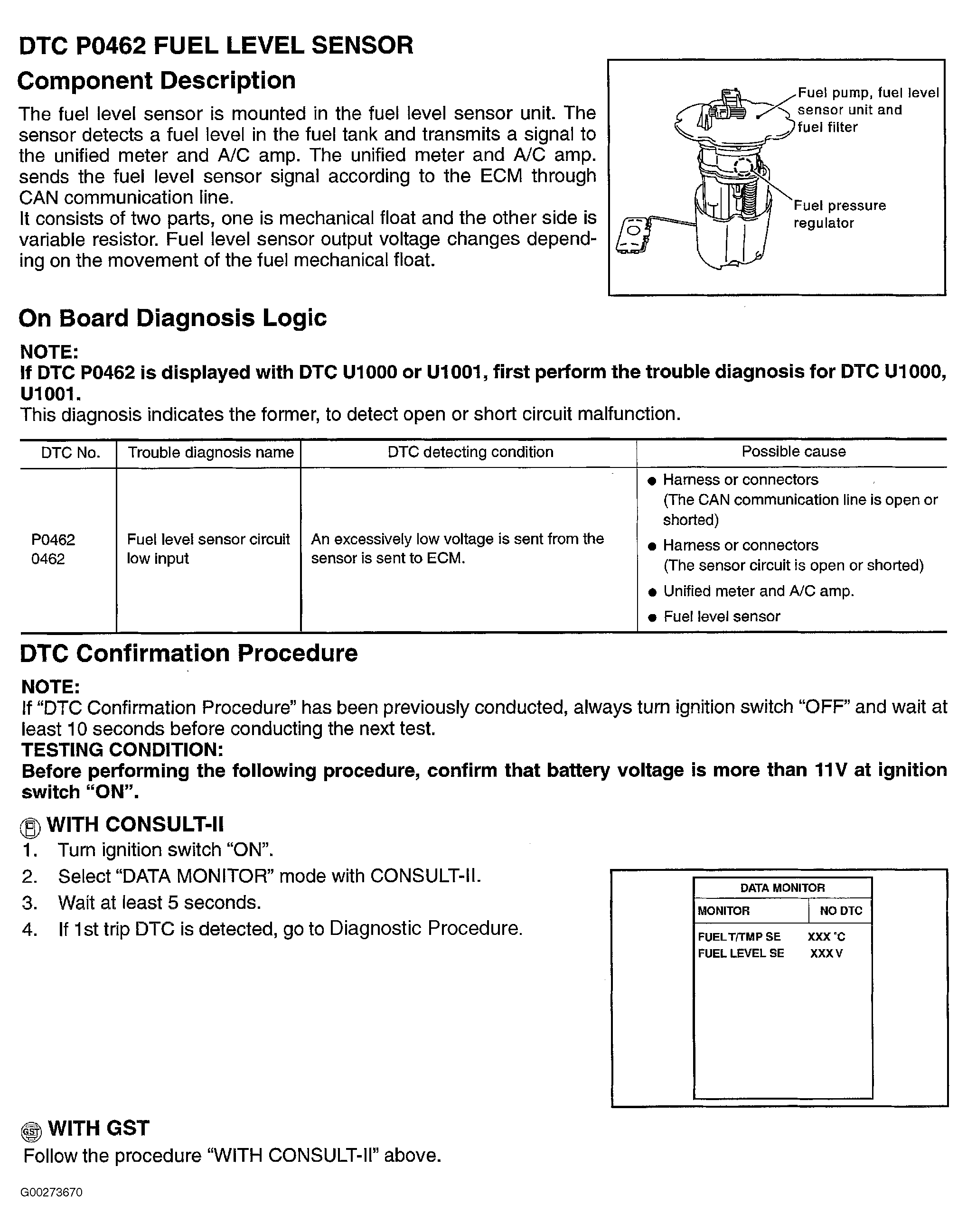

Fig 1: DTC P0462 (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

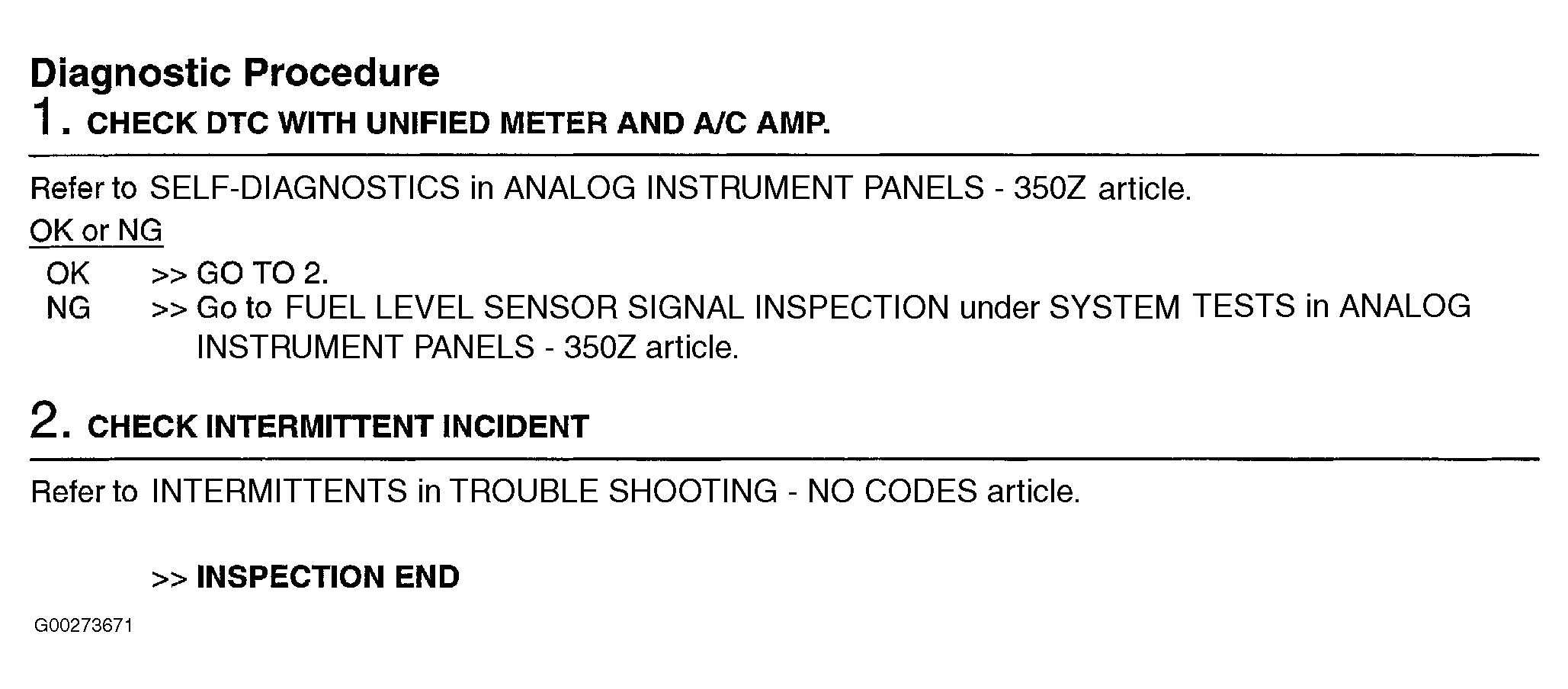

Fig 2: DTC P0462 (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
