Power Window System: Schematic

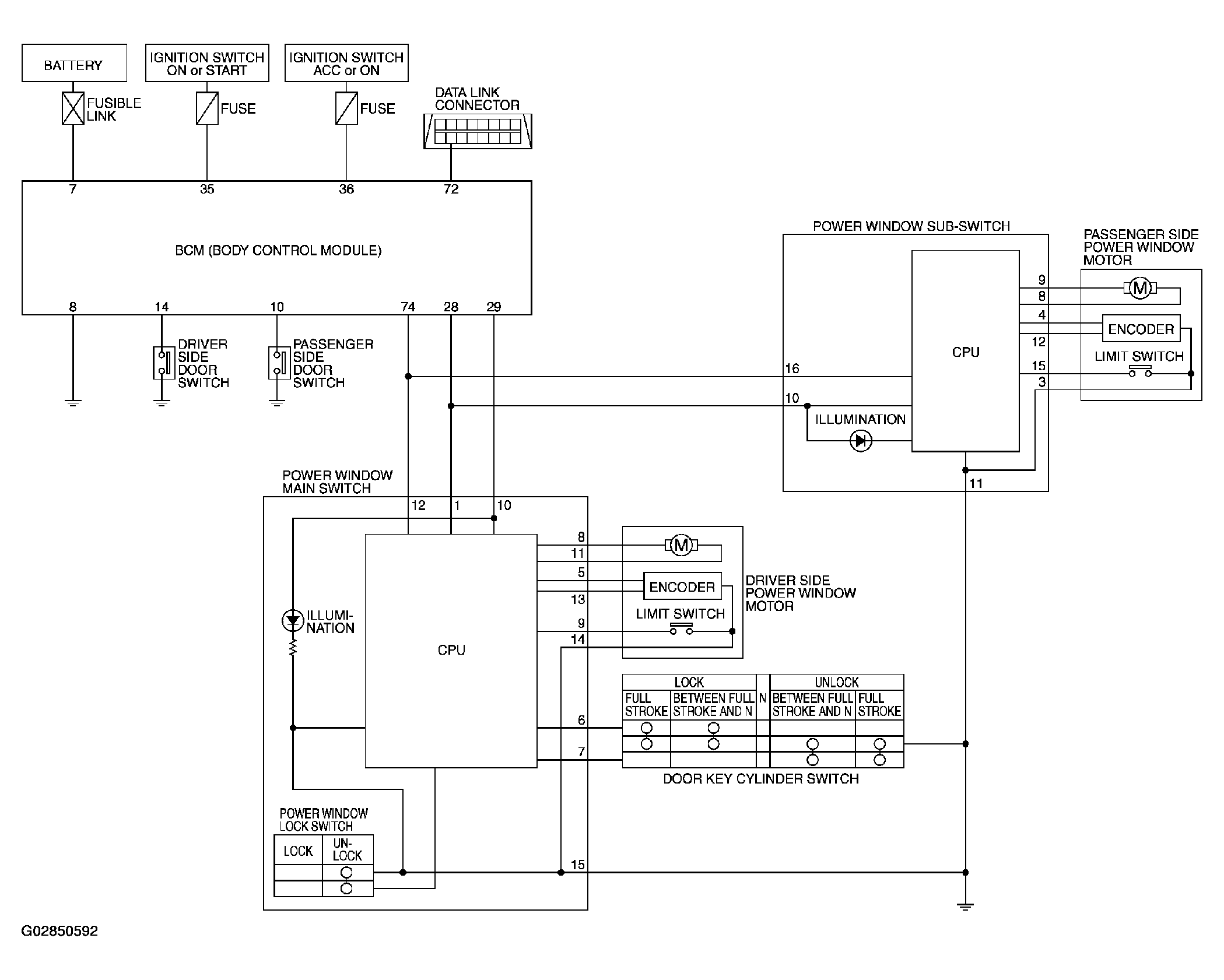

Fig 1: Identifying Power Window System Schematic Diagram
G02850592Courtesy of NISSAN MOTOR CO., U.S.A.
