ABS Actuator And Electric Unit (Control Unit) Connector End View (E55)

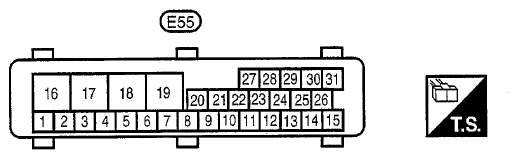

Fig 1: ABS Actuator And Electric Unit (Control Unit) Connector End View (E55)
G10875870Courtesy of NISSAN NORTH AMERICA, INC.
