Bank 1

WARNING: This page is about a different car, the 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

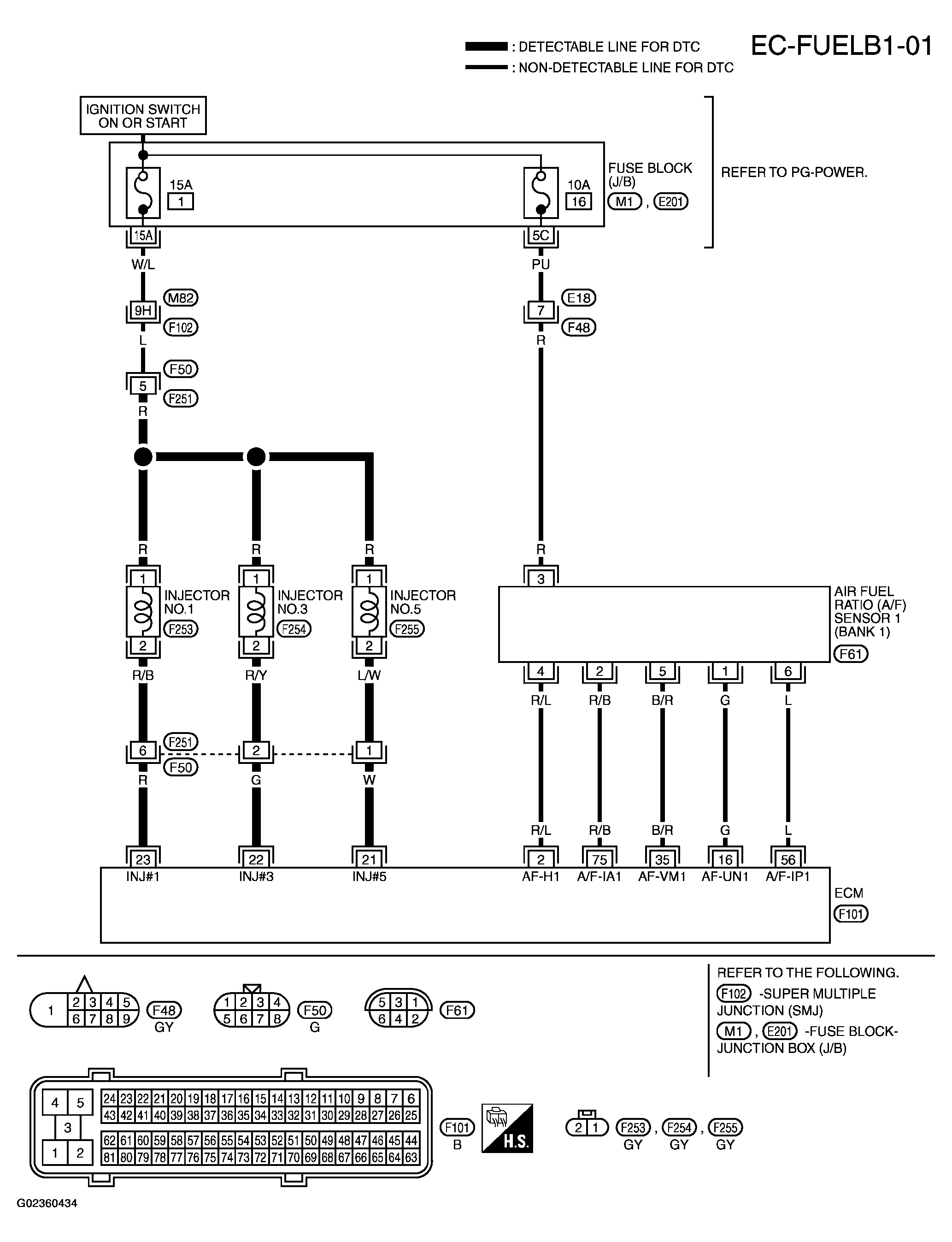

Fig 1: Wiring Diagram - EC-FUELB1-01

Courtesy of NISSAN MOTOR CO., U.S.A.
