Evaporative Emissions System Diagrams

Fig 1: On Board Refueling Vapor Recovery Vacuum Diagram (All Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

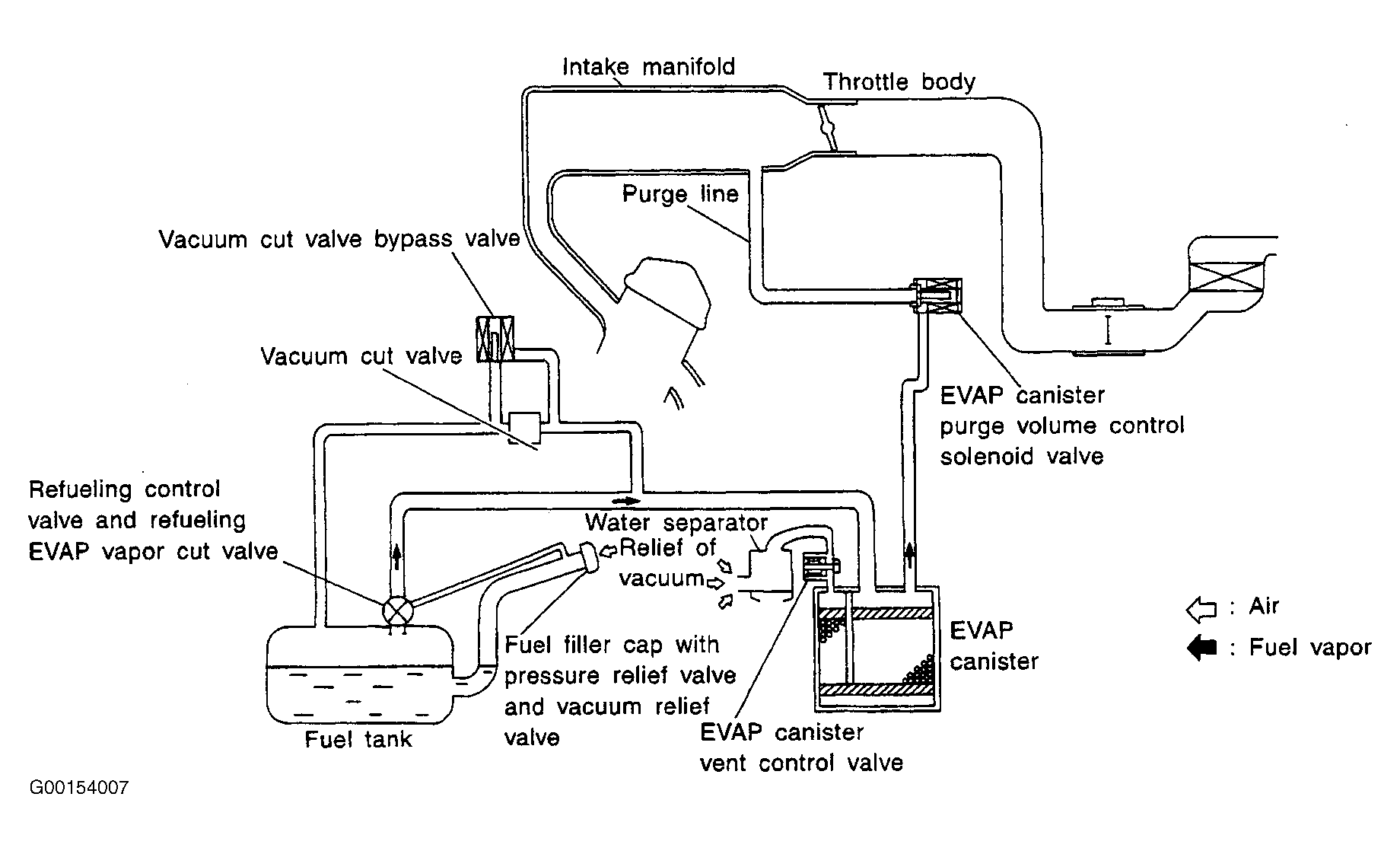

Fig 2: Evaporative Emissions System Vacuum Diagram (All Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

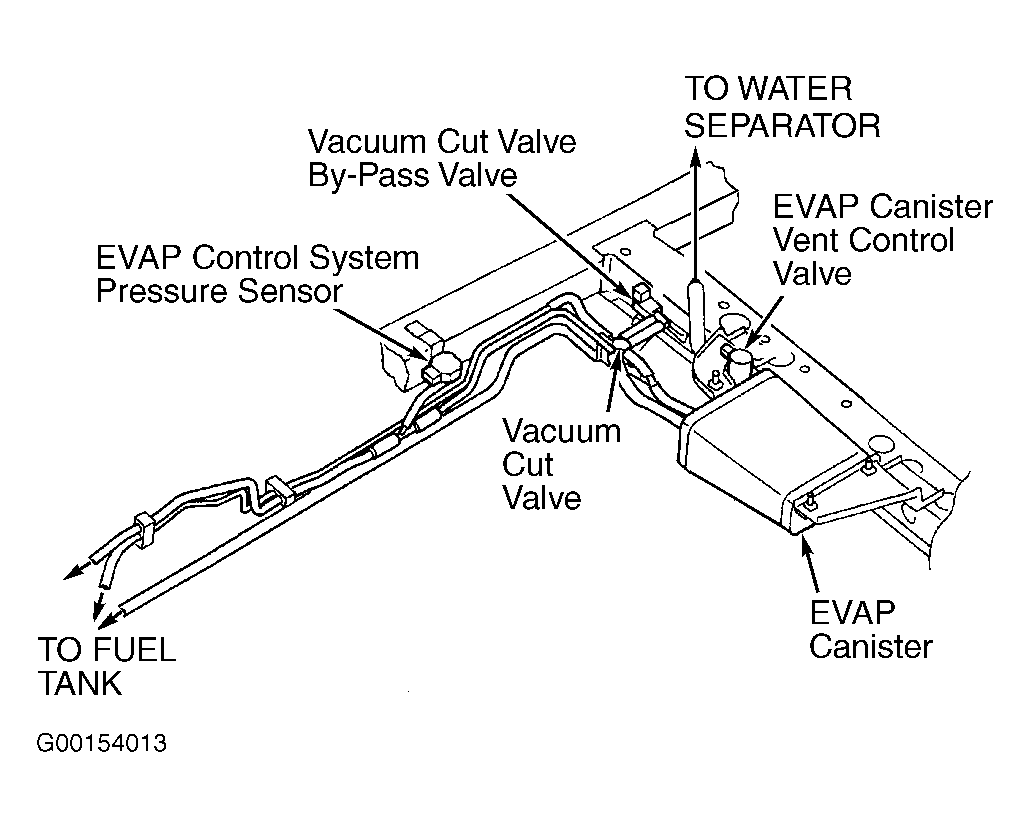

Fig 3: Evaporative Emissions Control Under Vehicle View (Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

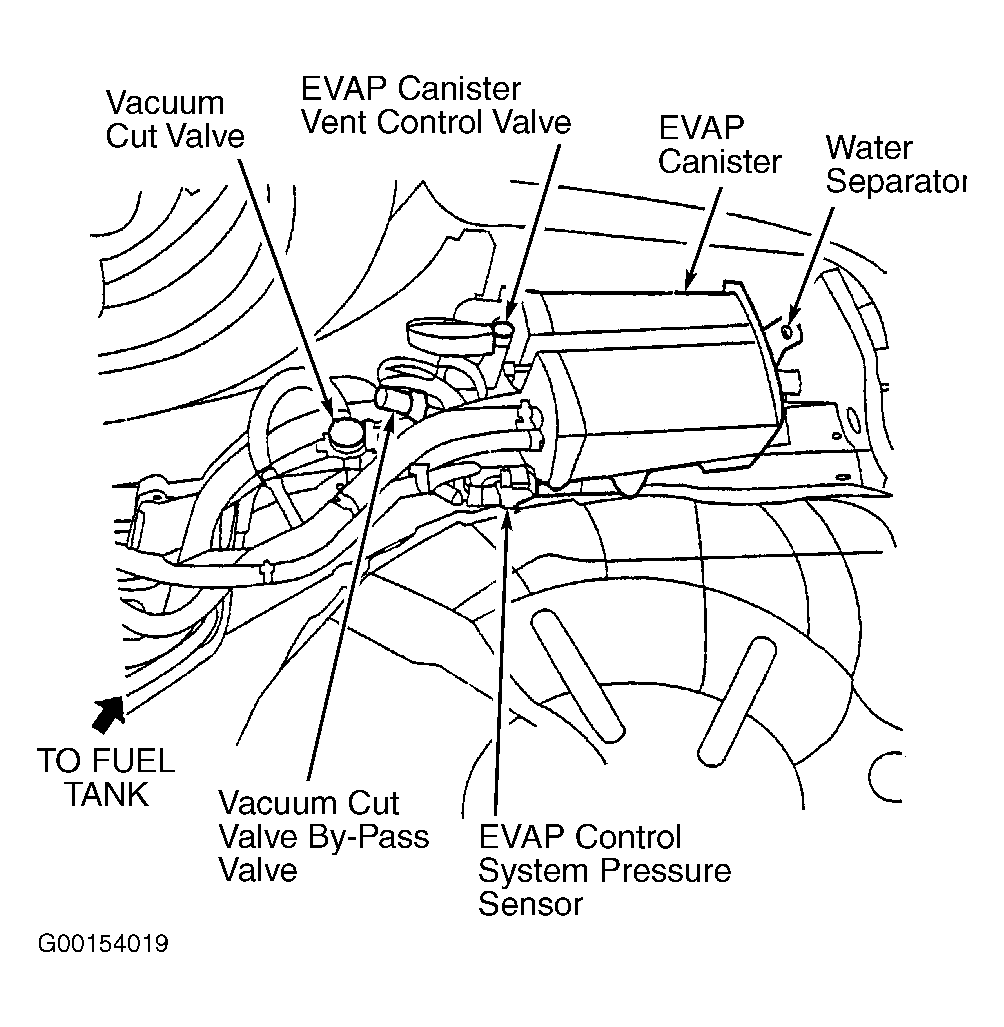

Fig 4: Evaporative Emissions System Under Vehicle View (Frontier & Xterra)

Courtesy of NISSAN MOTOR CO., U.S.A.

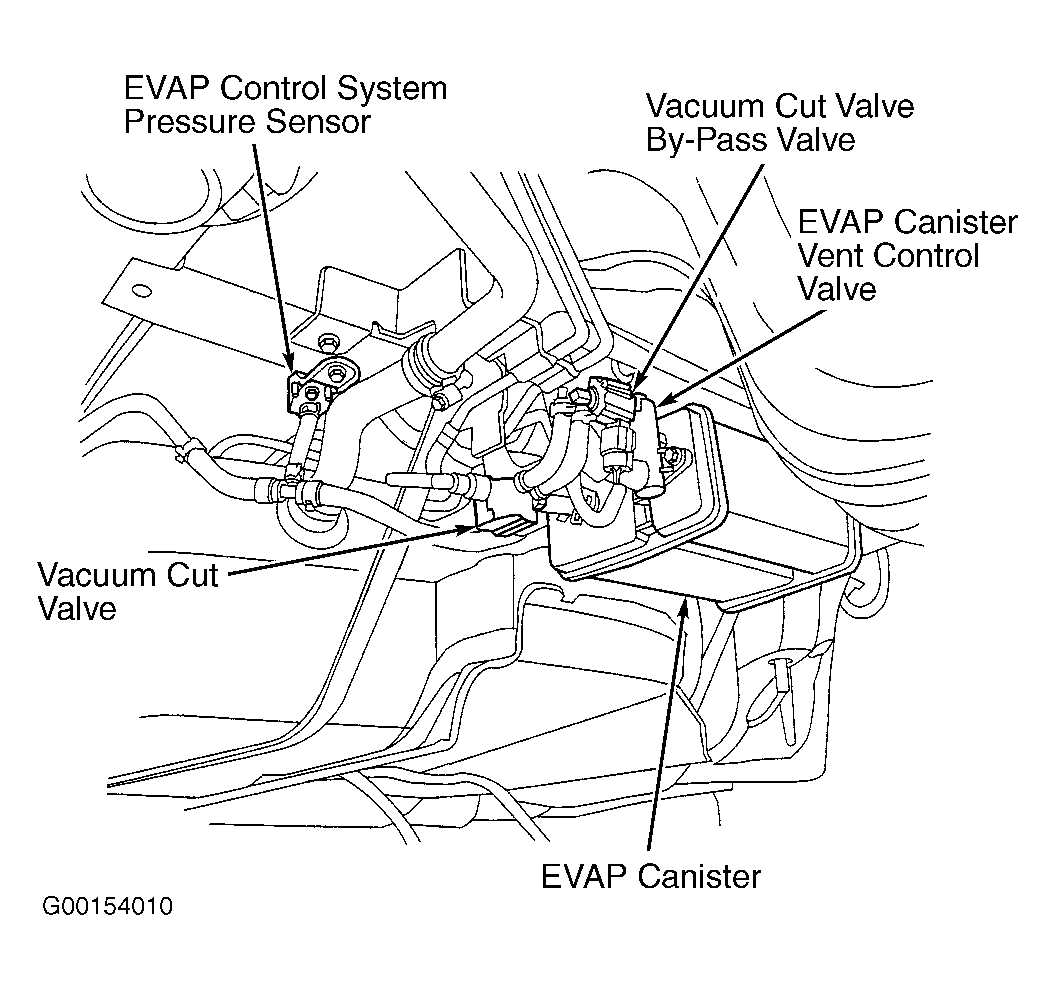

Fig 5: Evaporative Emissions System Under Vehicle View (Pathfinder & QX4)

Courtesy of NISSAN MOTOR CO., U.S.A.

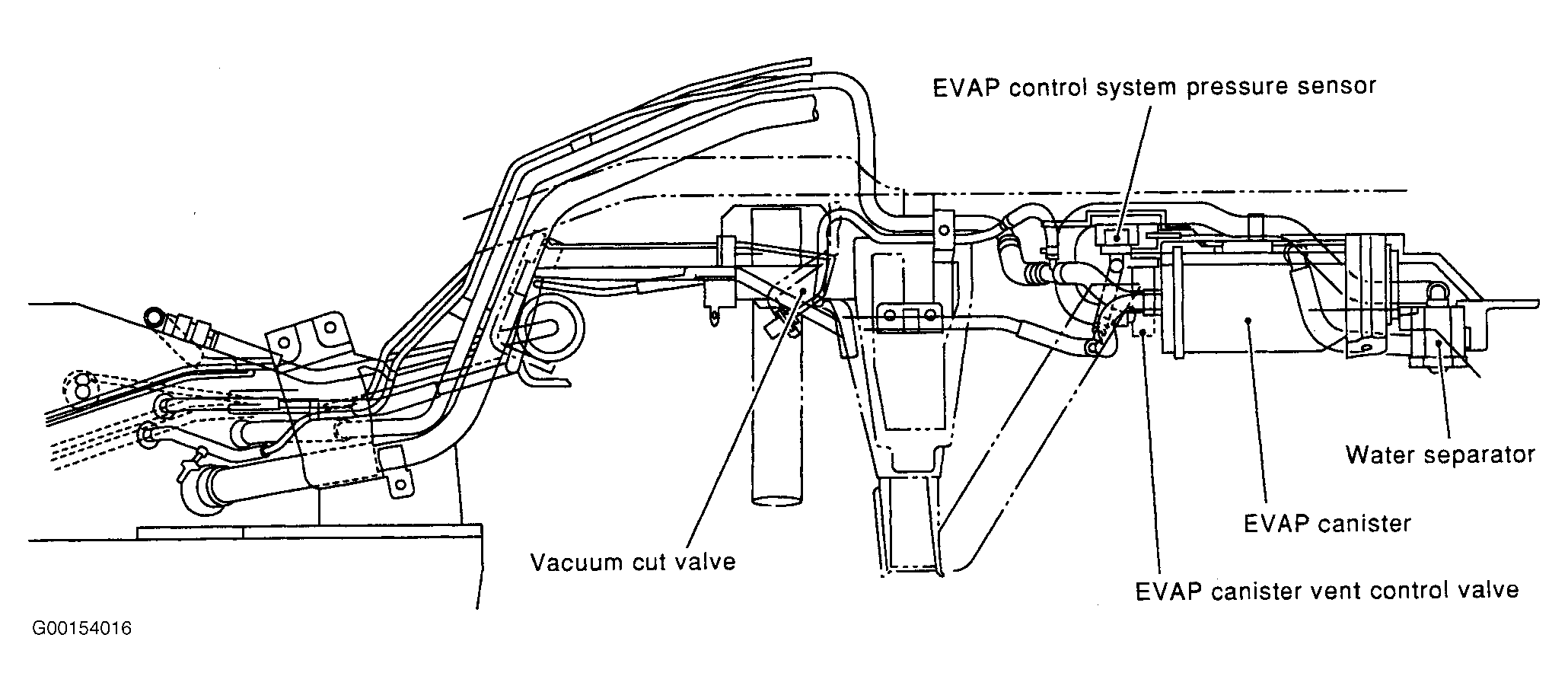

Fig 6: Evaporative Emissions System Under Vehicle View (I35 & Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Evaporative Emissions System Under Vehicle View (Quest)

Courtesy of NISSAN MOTOR CO., U.S.A.

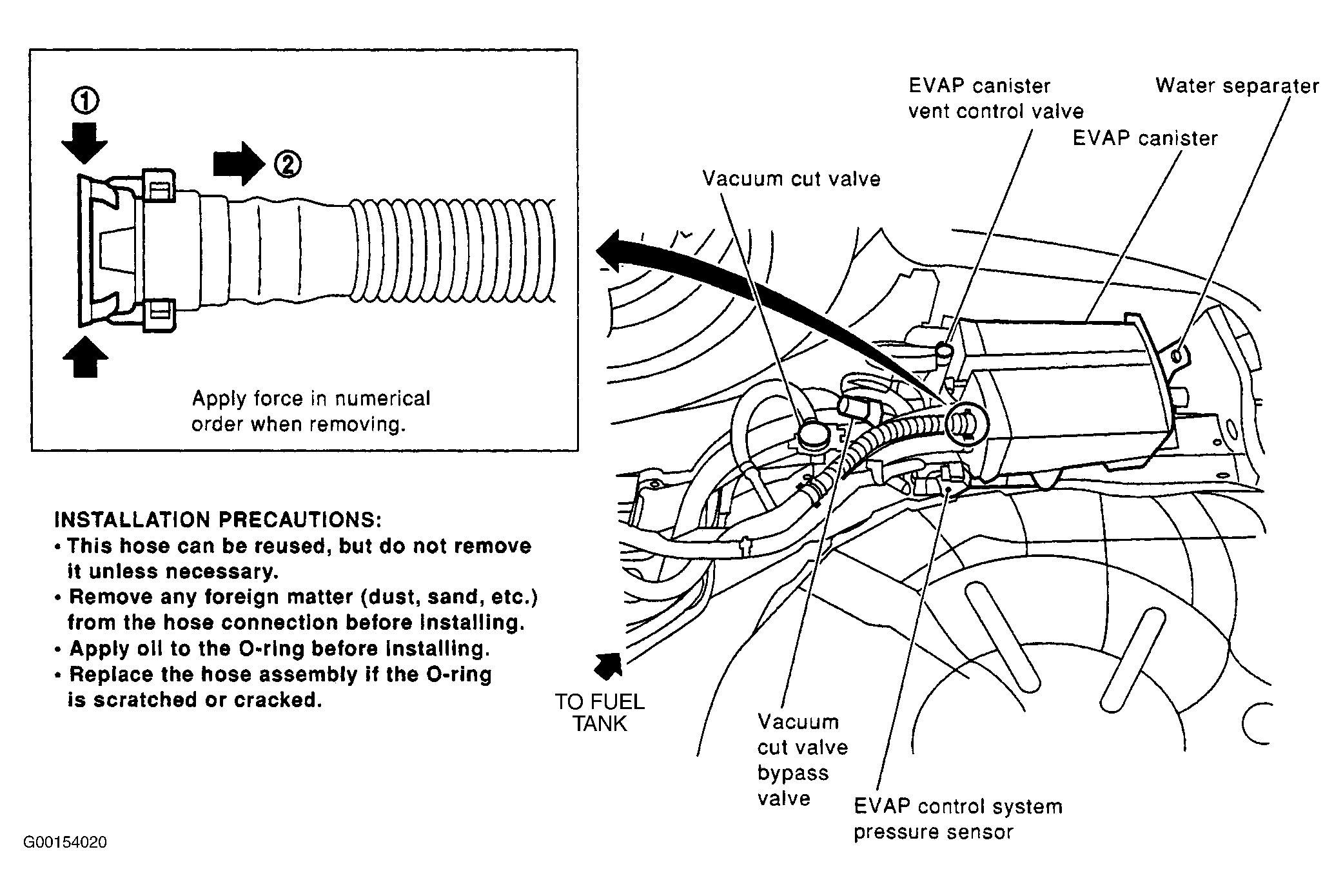

Fig 8: Evaporative Emissions System Under Vehicle View (Sentra 1.8L)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Evaporative Emissions System Under Vehicle View (Sentra 1.8L California CA)

Courtesy of NISSAN MOTOR CO., U.S.A.
