Fuse & Fusible Link Box

NOTE: For fuse and fusible link box fuse and link arrangement, see Fig 1 and Fig 2 .

The fuse and fusible link box is located within the relay box, passenger side of engine comparment.

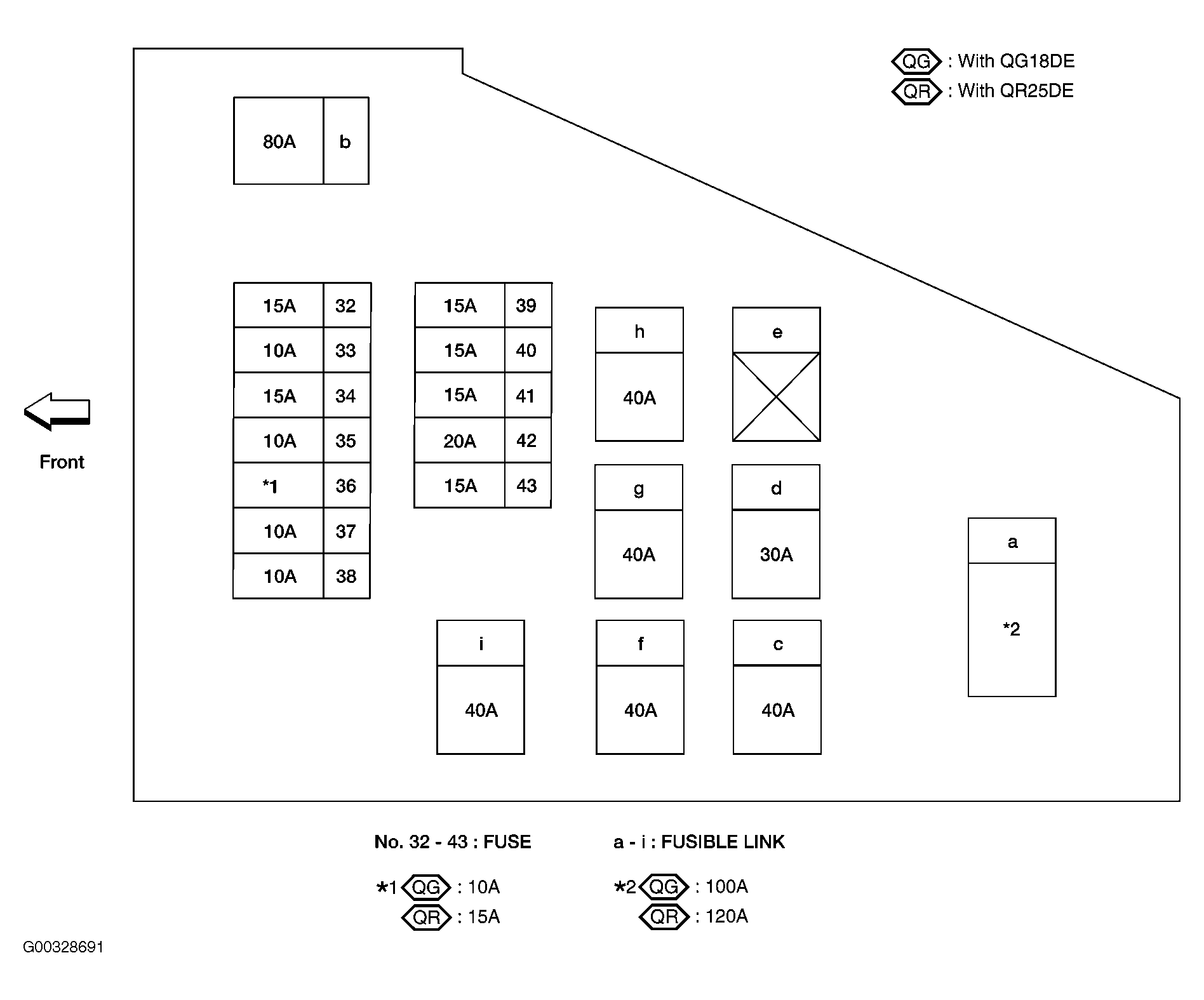

Fig 1: Identifying Fuse & Fusible Link Arrangement (2000-01 Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

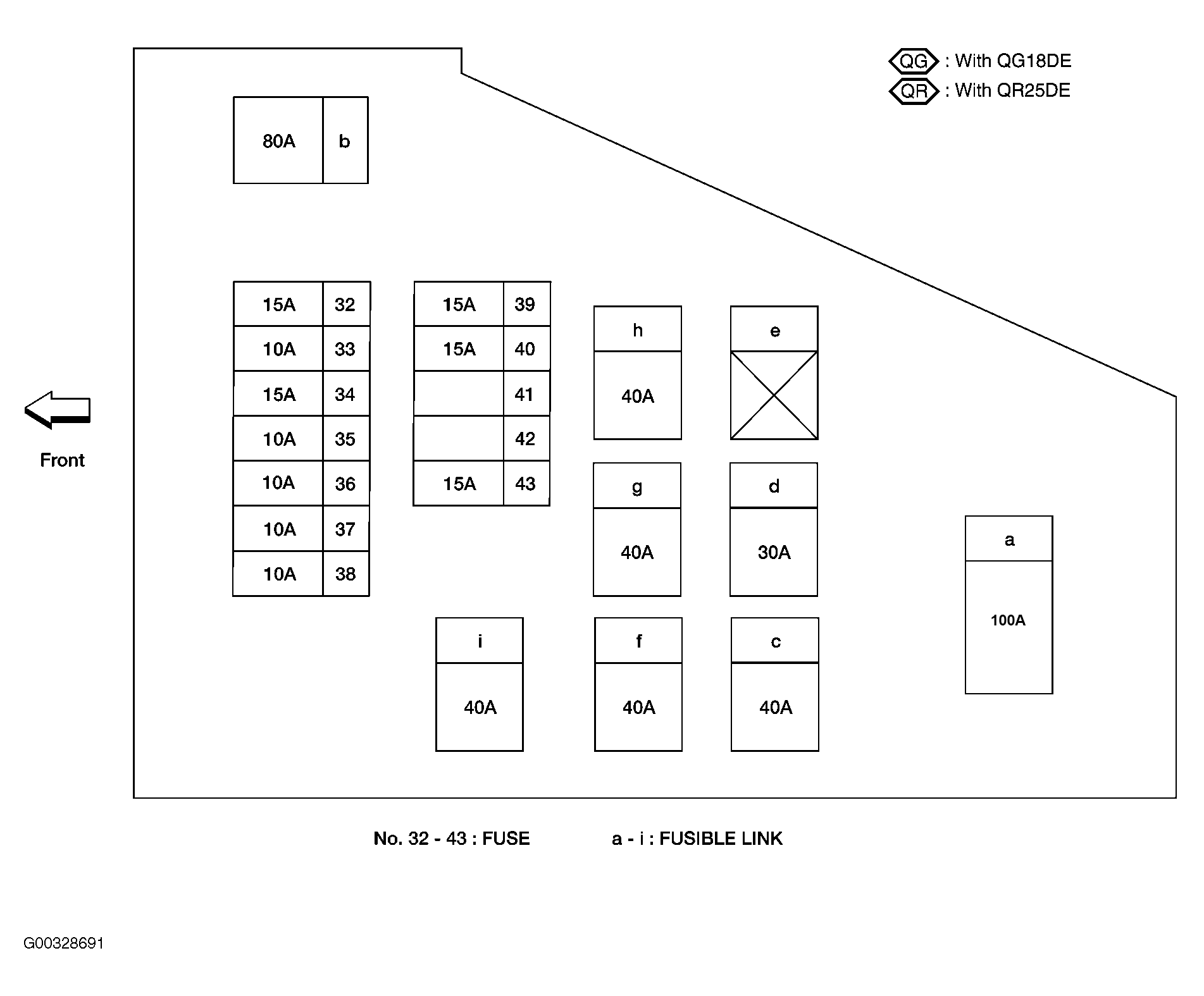

Fig 2: Identifying Fuse & Fusible Link Arrangement (2002-04 Models)

Courtesy of NISSAN MOTOR CO., U.S.A.
