Automatic Transaxle Re4F04B
>>
Trouble Diagnosis - Basic Inspection
>>
Line Pressure Test
>>
Judgement Of Line Pressure Test
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Judgement Of Line Pressure Test

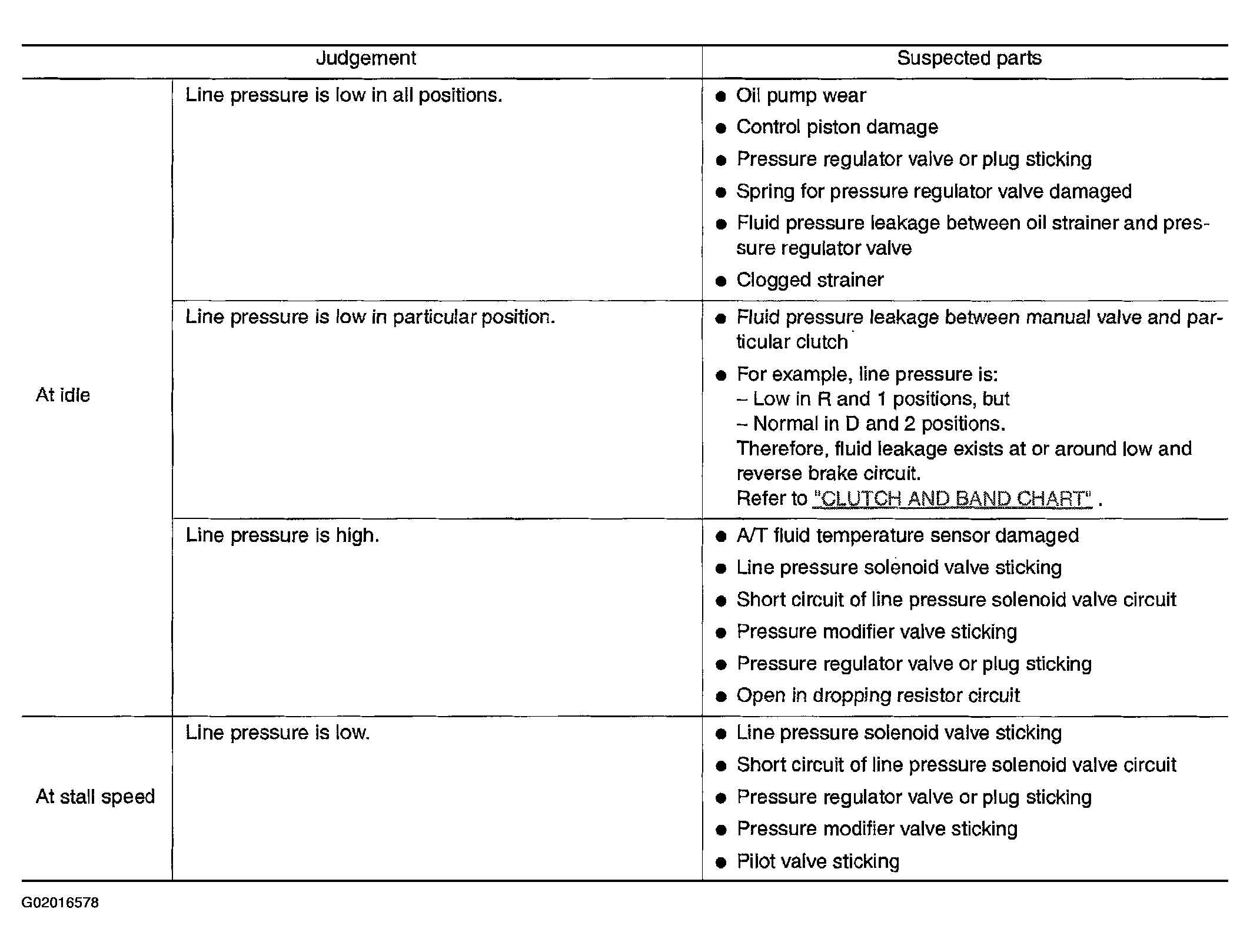

Fig 1: Line Pressure Test Judgement Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
