Differential Side Gear Thrust Washers

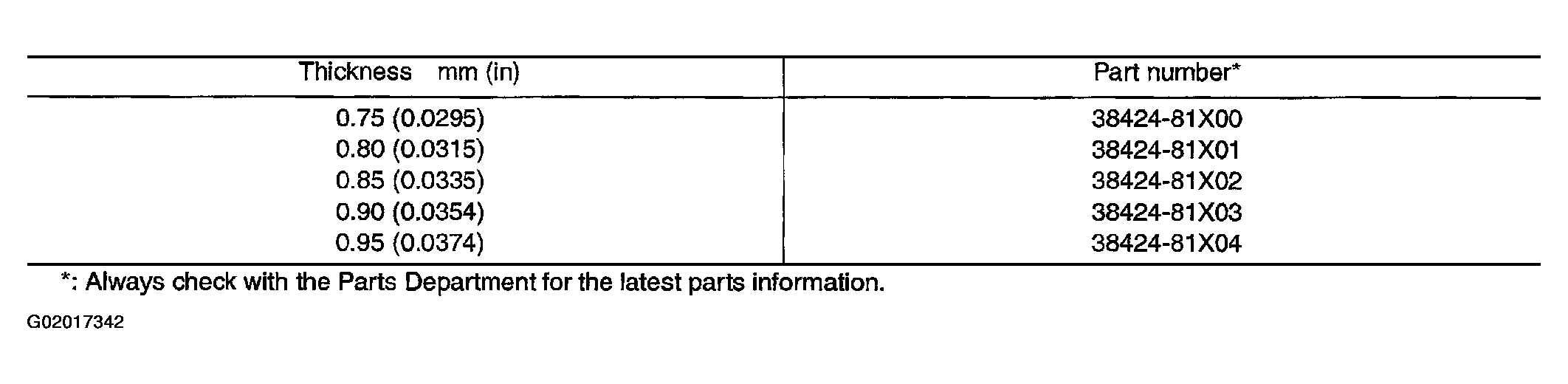

Fig 1: Differential Side Gear Thrust Washers Specifications
G02017342Courtesy of NISSAN MOTOR CO., U.S.A.
