Data Monitor Mode (A/T)

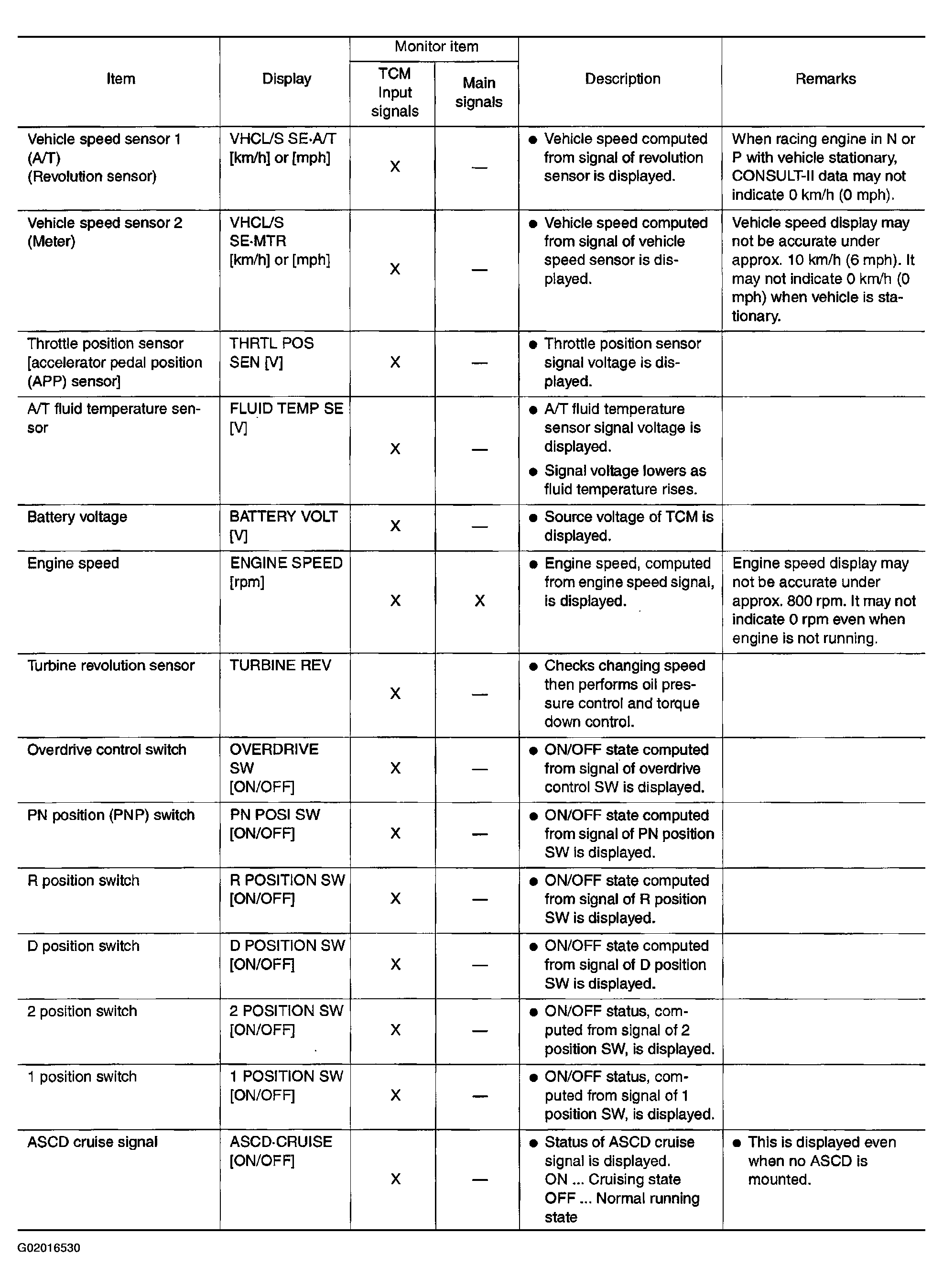

Fig 1: Data Monitor Mode Chart (1 Of 2)
G02016530Courtesy of NISSAN MOTOR CO., U.S.A.

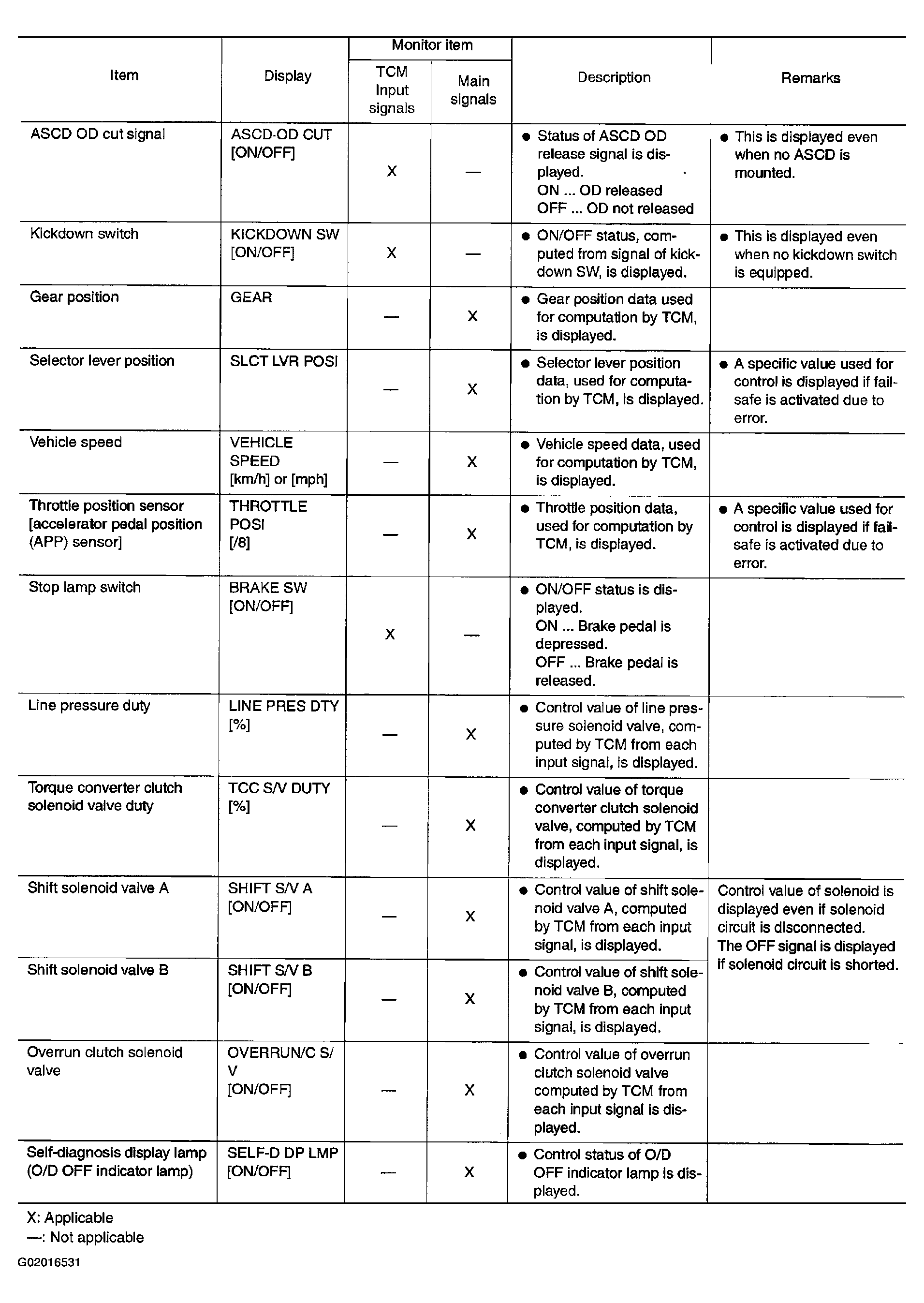

Fig 2: Data Monitor Mode Chart (2 Of 2)
G02016531Courtesy of NISSAN MOTOR CO., U.S.A.
