Bank 1

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

For complete wiring diagrams, see SYSTEM WIRING DIAGRAMS - TITAN article in ELECTRICAL.

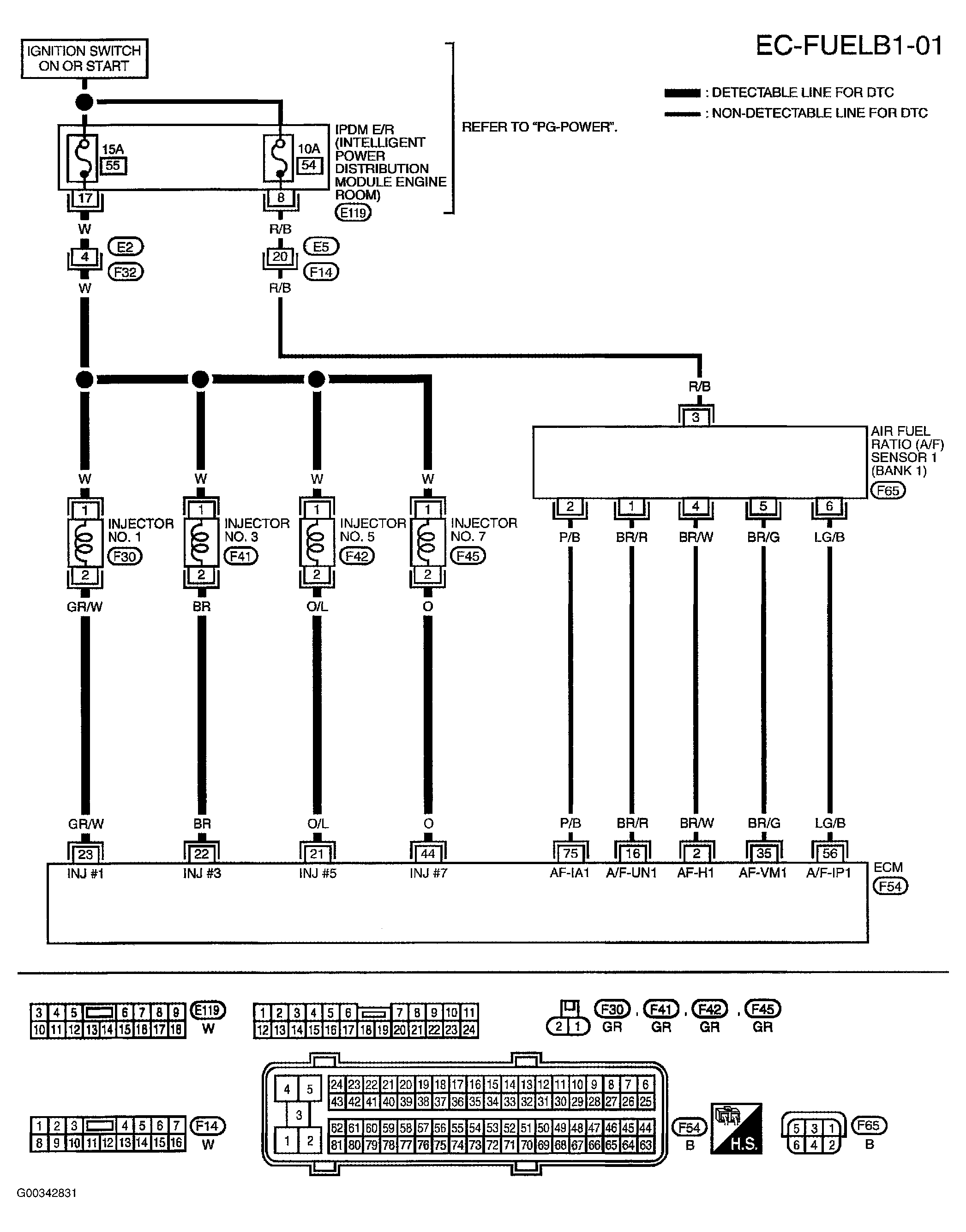

Fig 1: Bank 1 Circuit Diagram EC-FUELB1-01

Courtesy of NISSAN MOTOR CO., U.S.A.
