Removal and Installation of Hood Lock Control: Installation

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Pull the hood lock cable through the lower dash panel hole into the engine room.
Be careful not to bend the cable too much, keep the radius 100mm (3.94 in) or more.
Make sure the cable is not offset from the grommet, and push the grommet into the lower dash panel hole securely.
Install the hood release handle.
Apply sealant around the grommet at * mark.

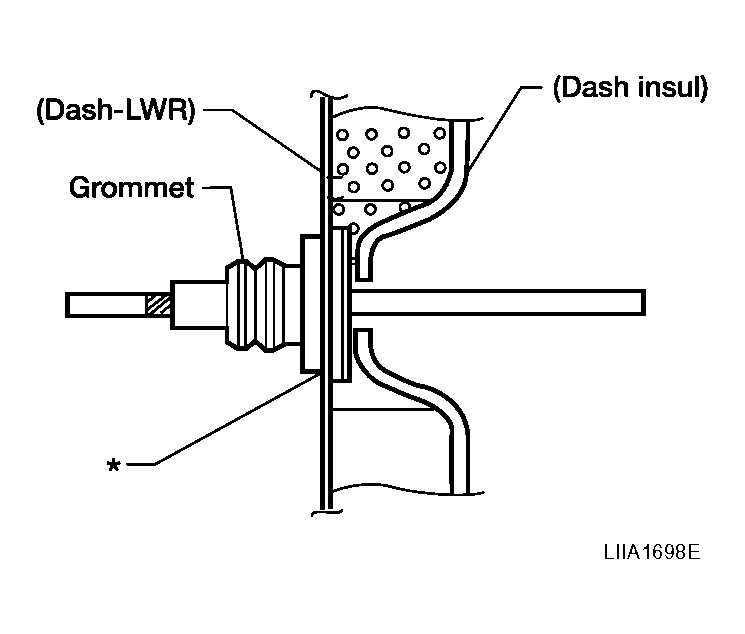

Fig 1: Installing Hood Release Handle
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the cable securely to the lock.
Adjust the hood lock. Refer to "HOOD LOCK ADJUSTMENT ".

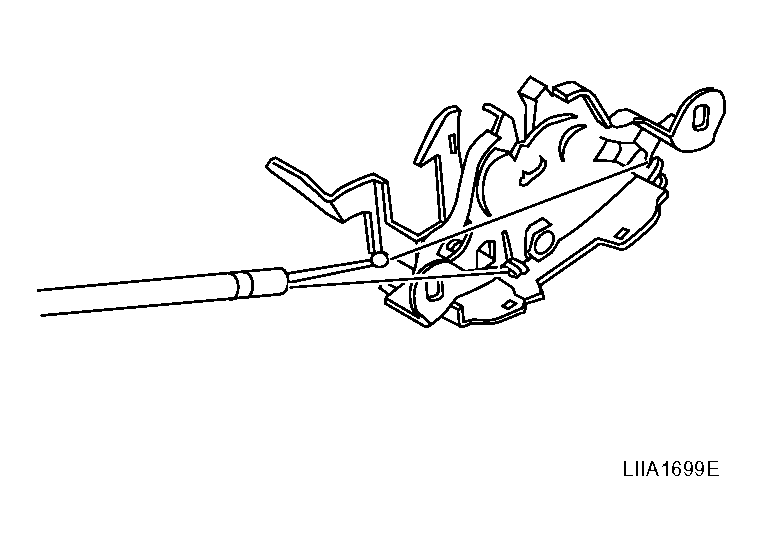

Fig 2: Installing Cable Securely To Lock

Courtesy of NISSAN MOTOR CO., U.S.A.
