Radiator Cooling Fan Control Module: Description and Operation

COOLANT OVERTEMPERATURE ENRICHMENT PROTECTION

System Description

Cooling Fan Control:




The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant pressure, and air conditioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].

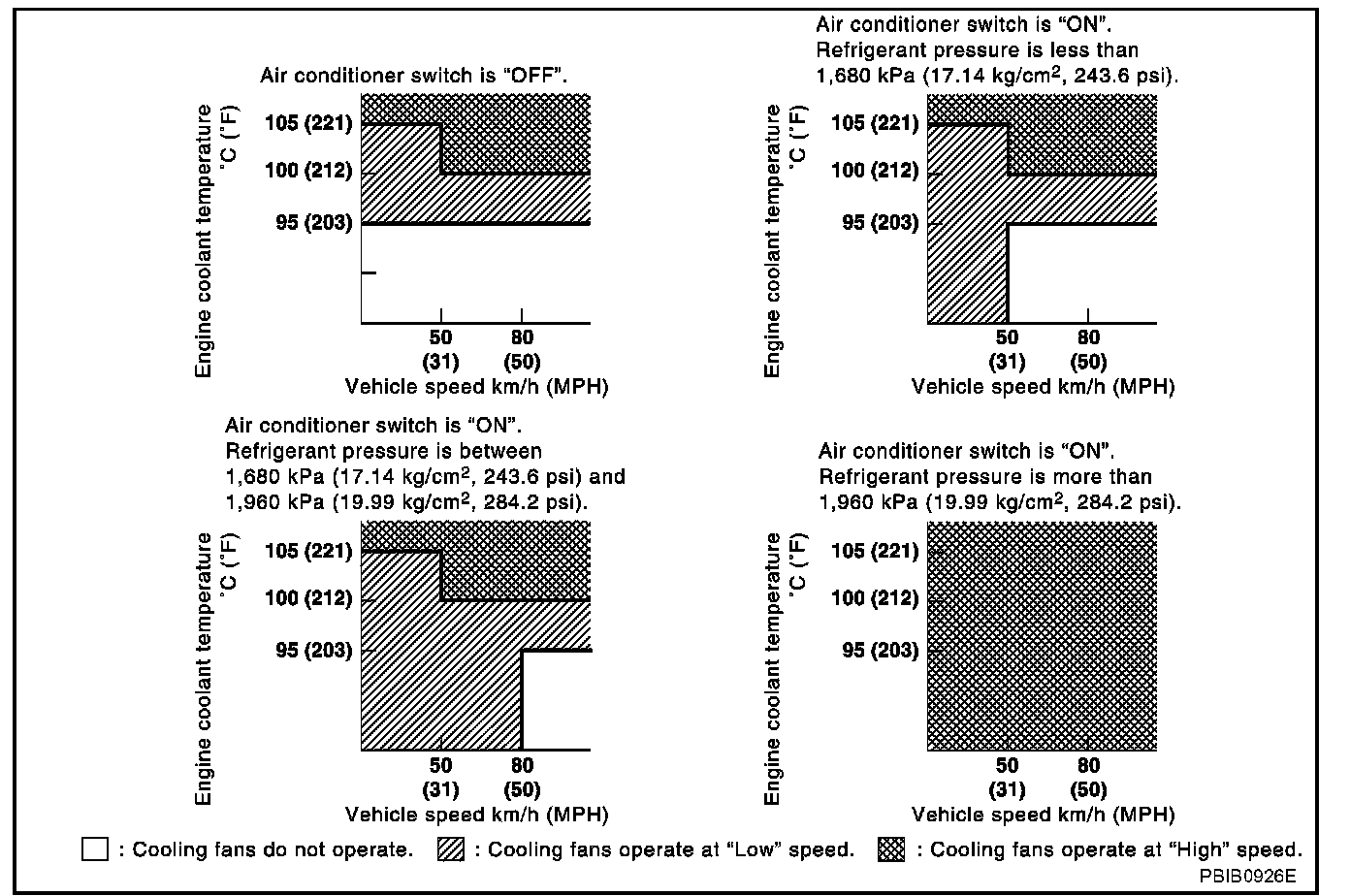

Operation:
