Pinout Values and Diagnostic Parameters

PREPARATION





- Measure voltage between each terminal and terminal 25 or 48 by following "TCM INSPECTION TABLE".





TCM HARNESS CONNECTOR TERMINAL LAYOUT

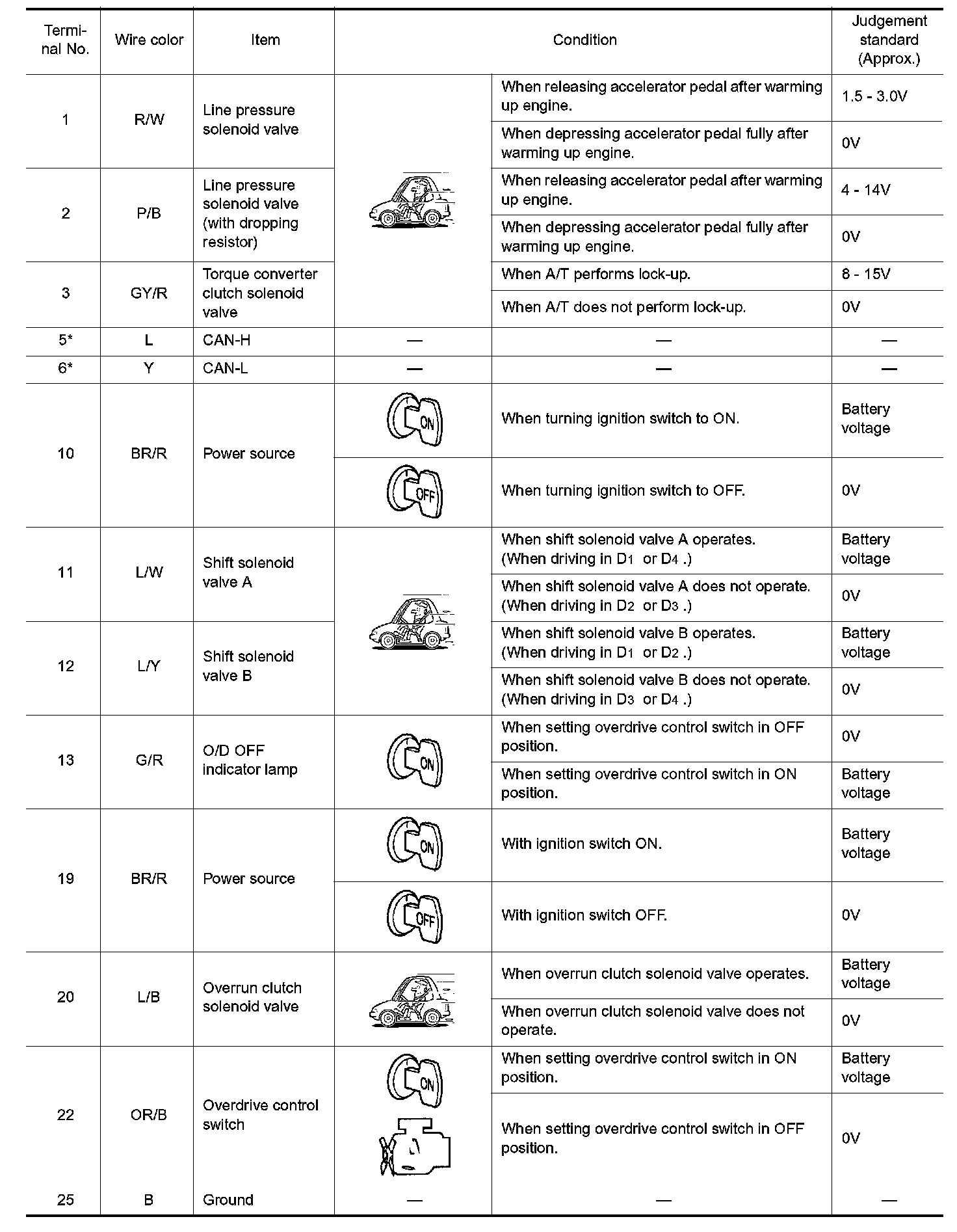

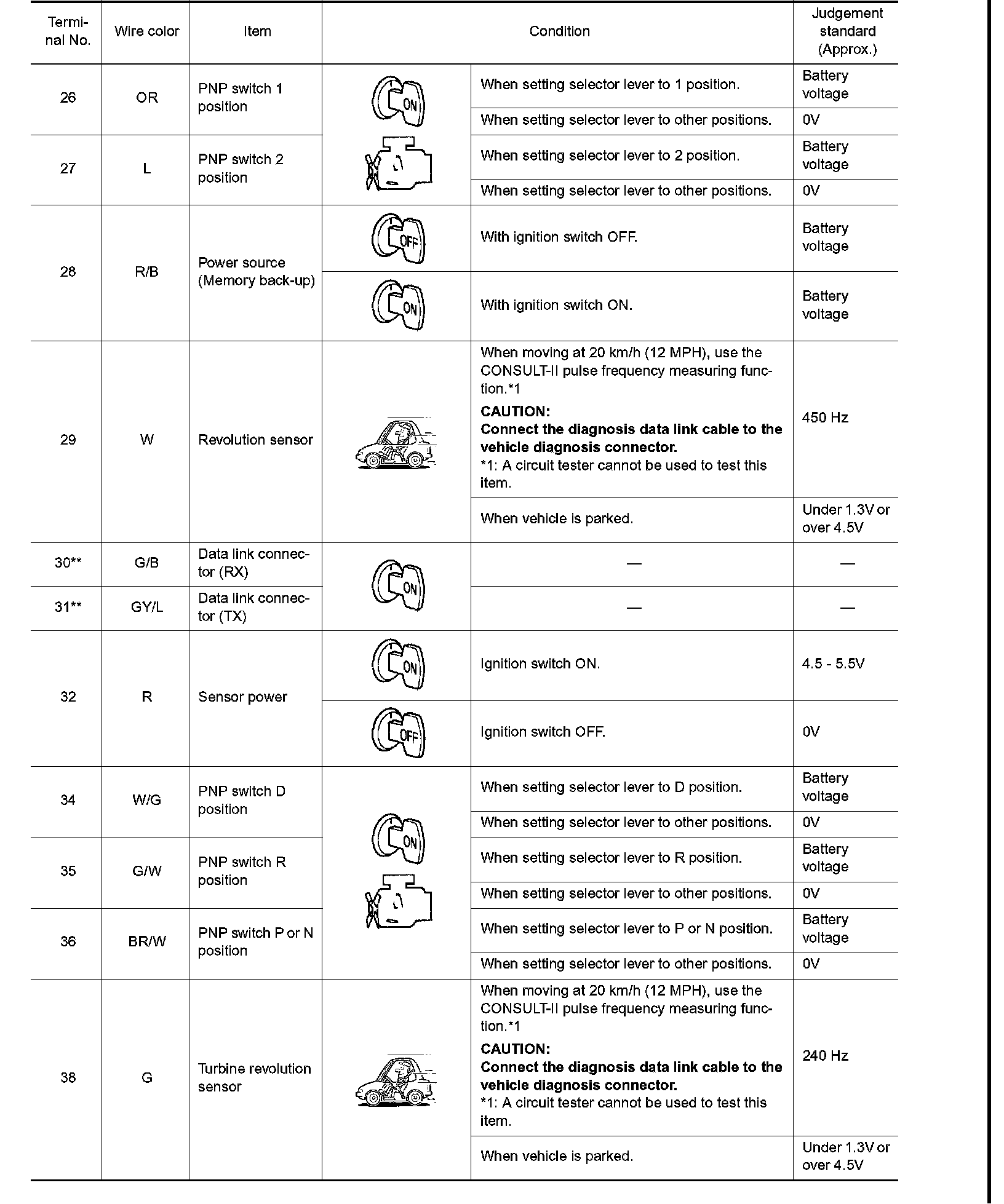

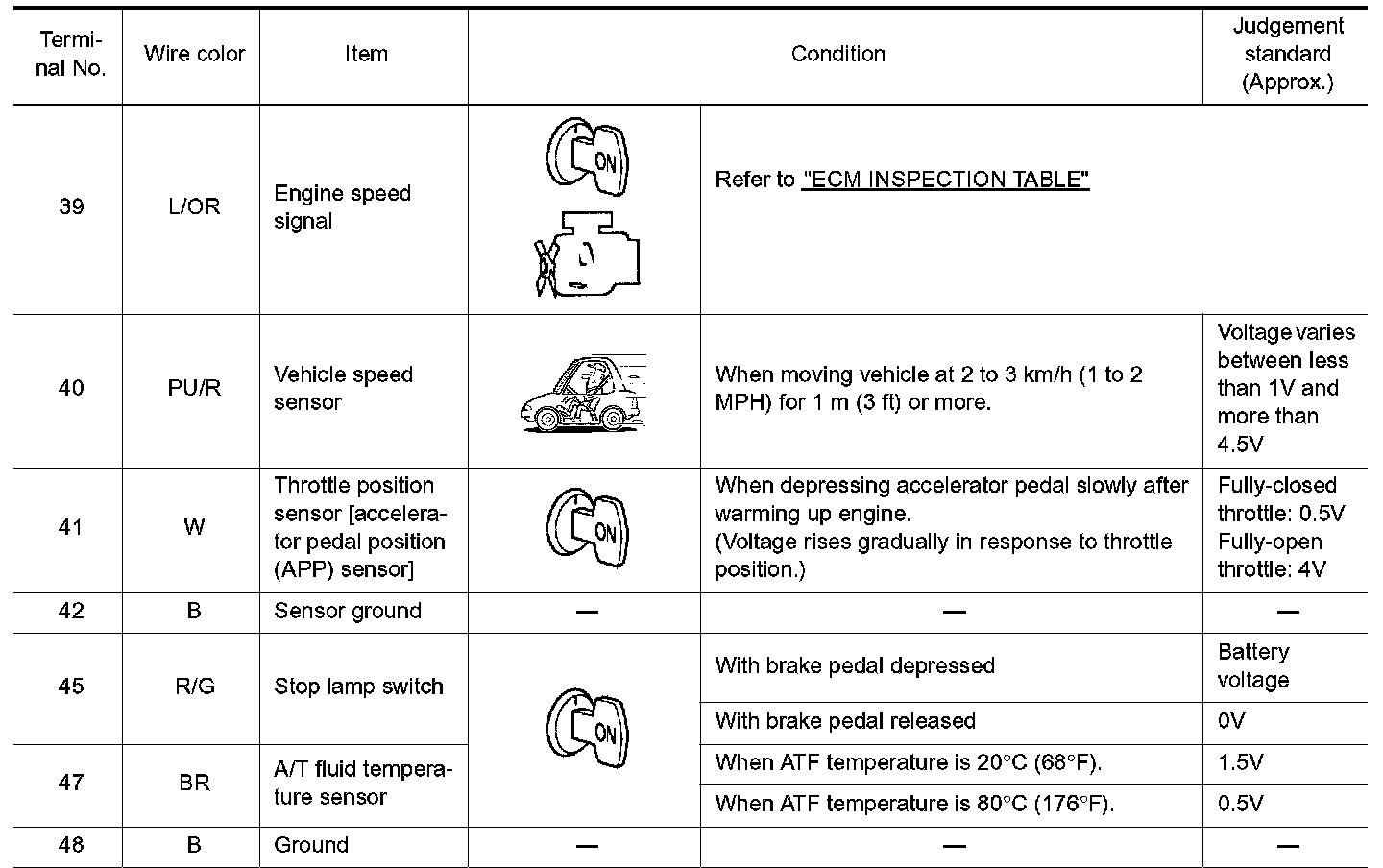

TCM INSPECTION TABLE
(Data are reference values.)
