Connector Views

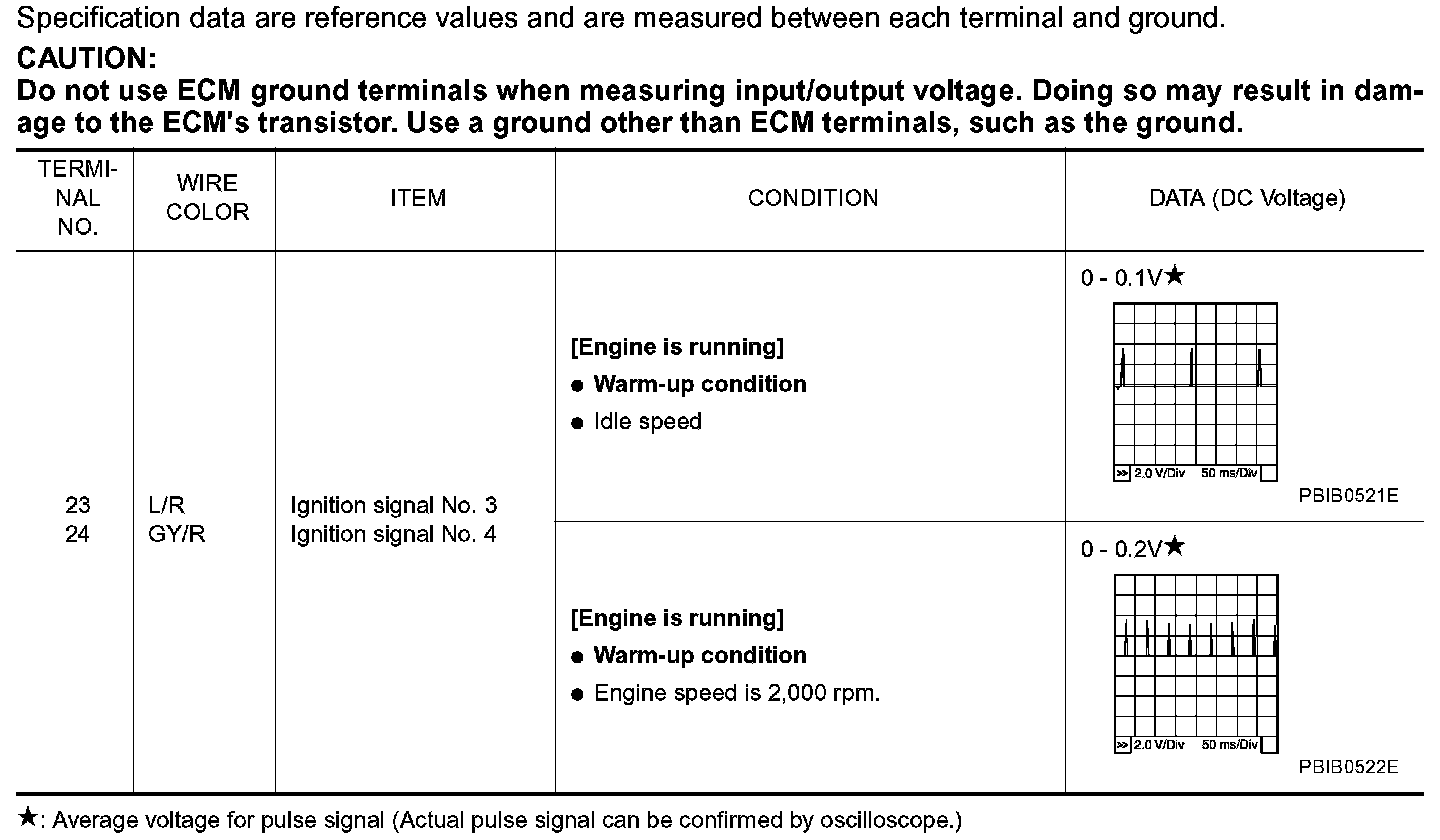

EC-IGNSYS-01 Connector Views:

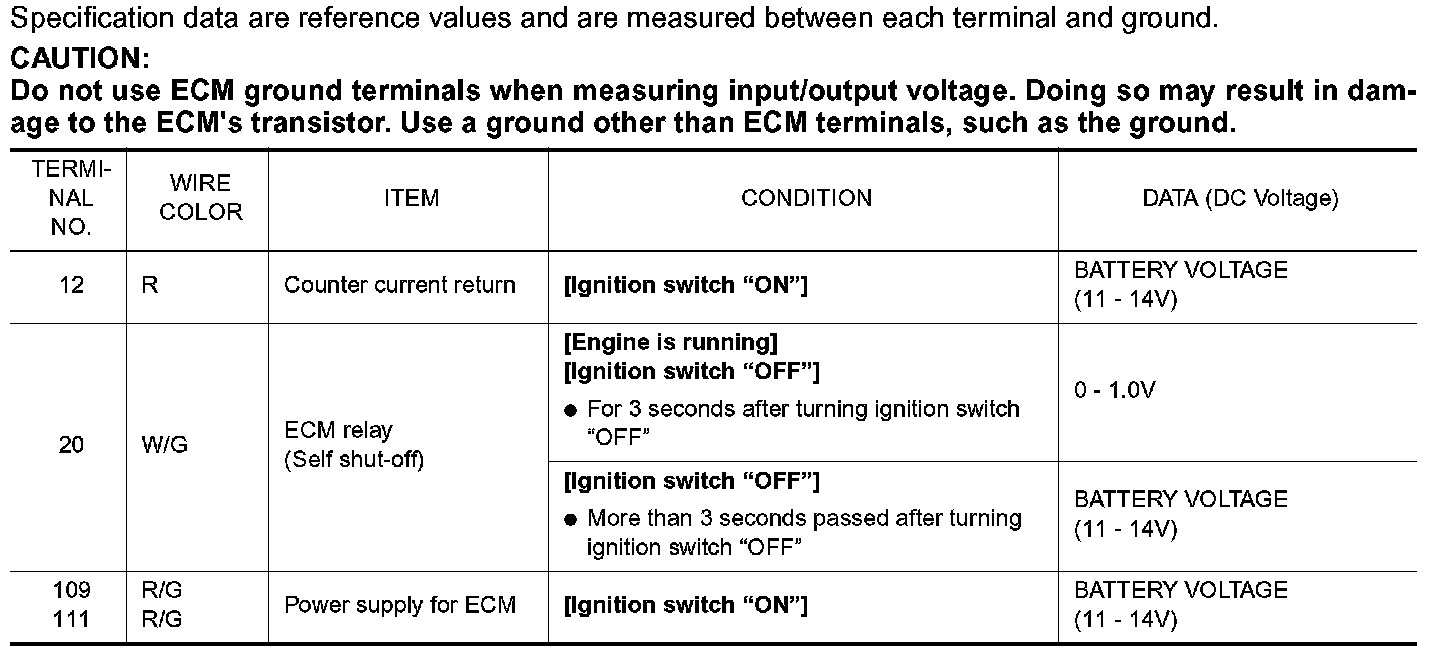

EC-IGNSYS-02 Connector Views:

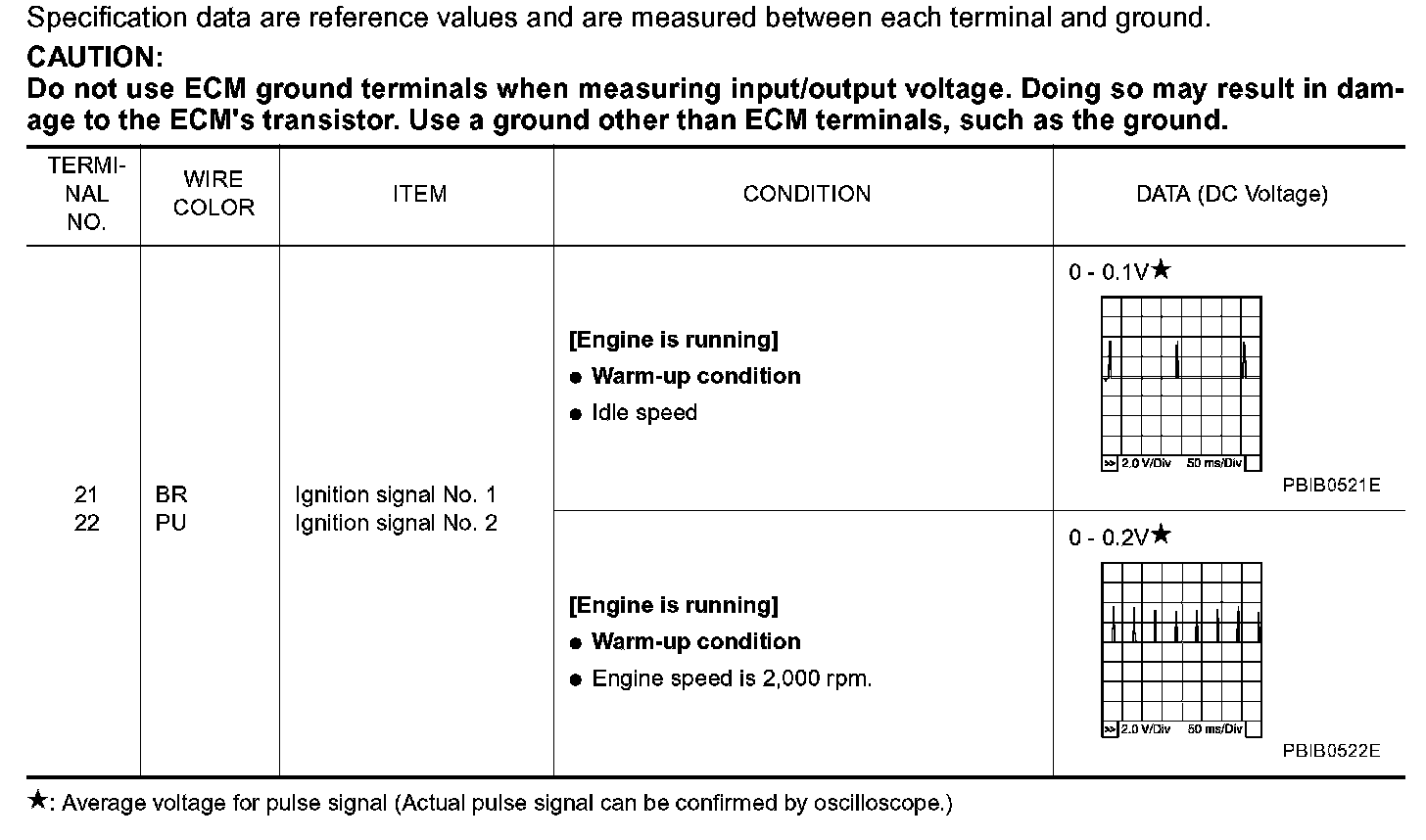

EC-IGNSYS-03 Connector Views:
