How to Read Relay Diagrams

Normal Open, Normal Closed And Mixed Type Relays:

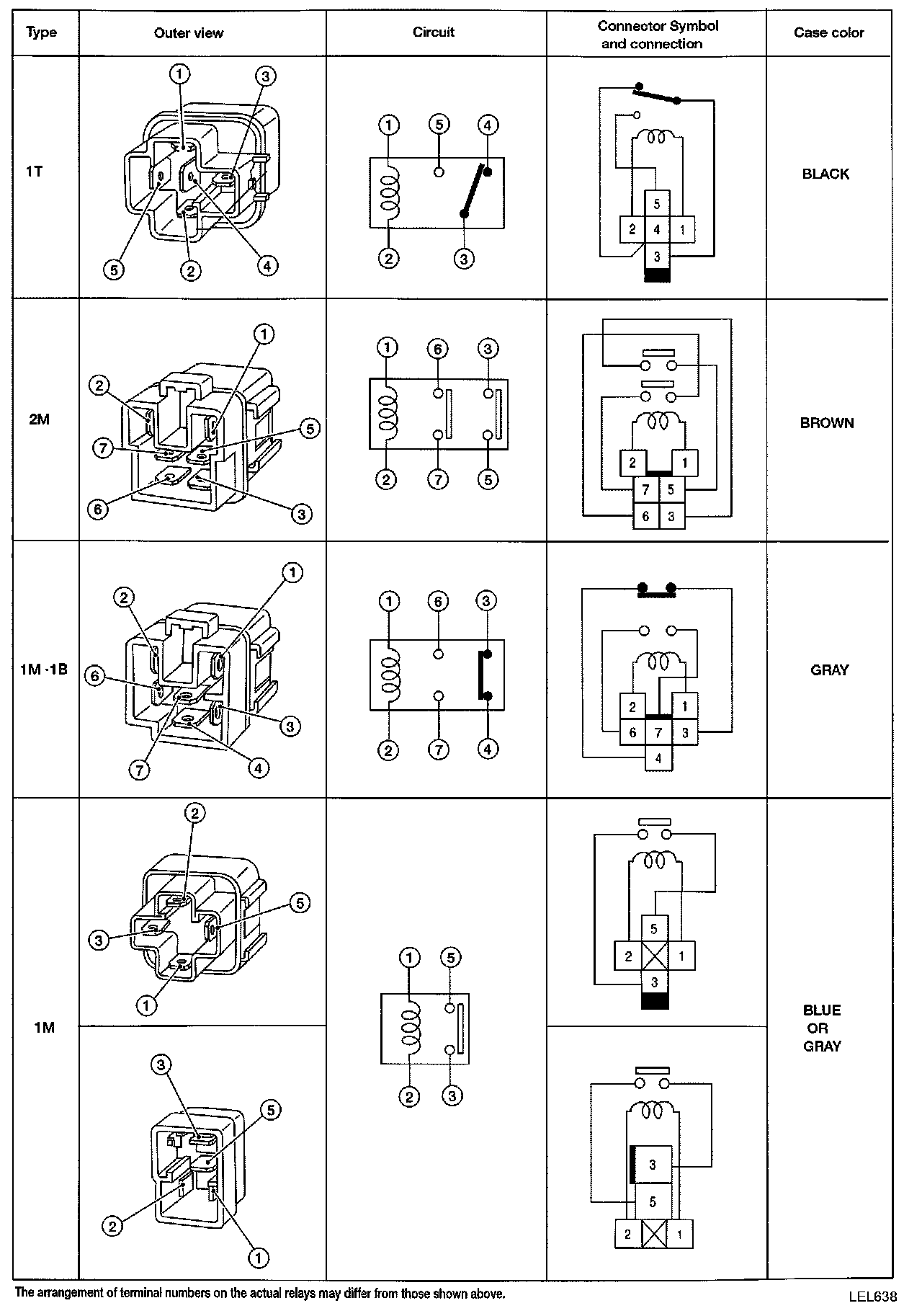

Type Of Standardized Relays Part 1:



Type Of Standardized Relays Part 2:
