Steering Wheel And Steering Column: Components

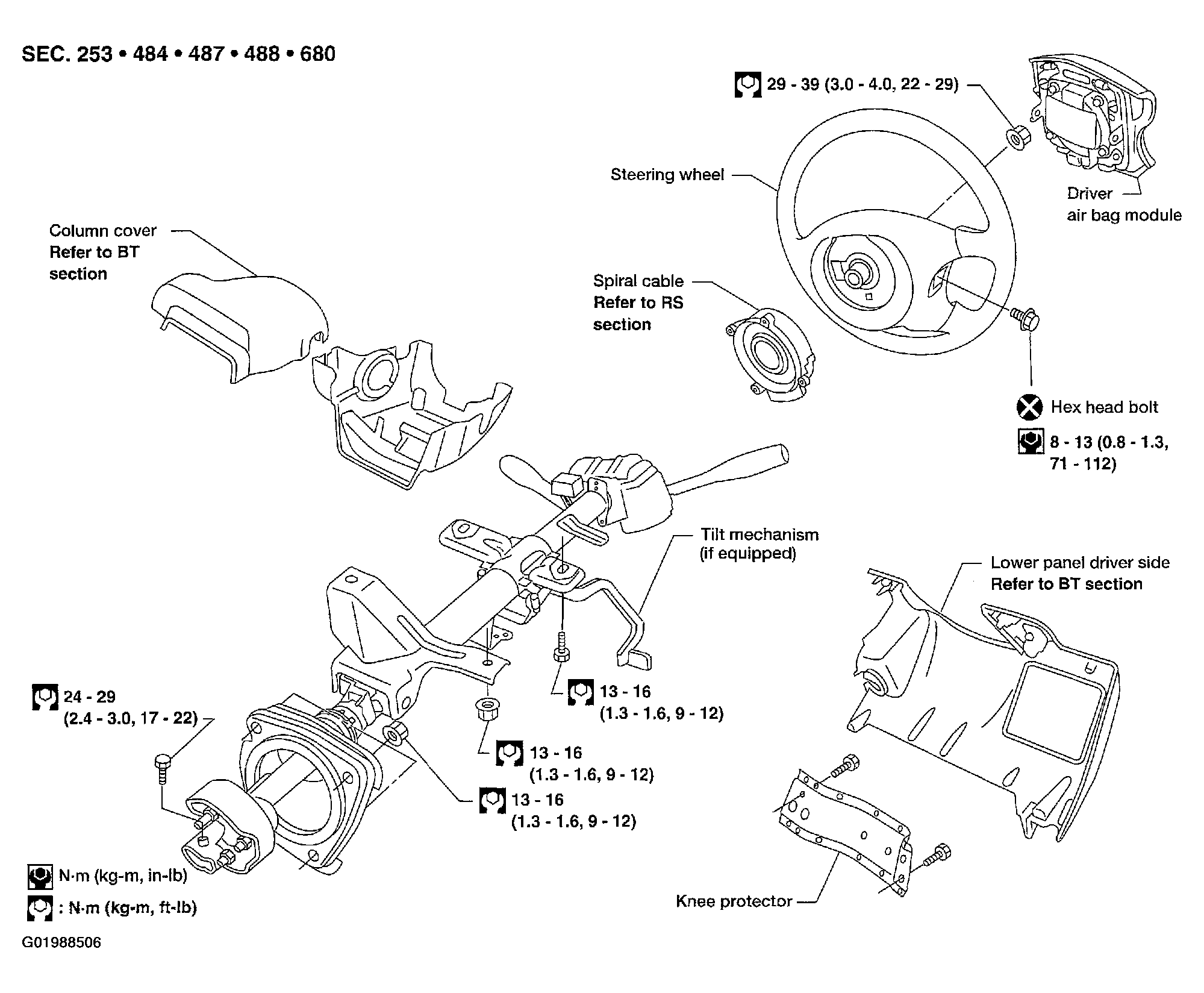

Fig 1: Exploded View Of Steering Wheel And Steering Column Components
G01988506Courtesy of NISSAN MOTOR CO., U.S.A.
