Function and System Application

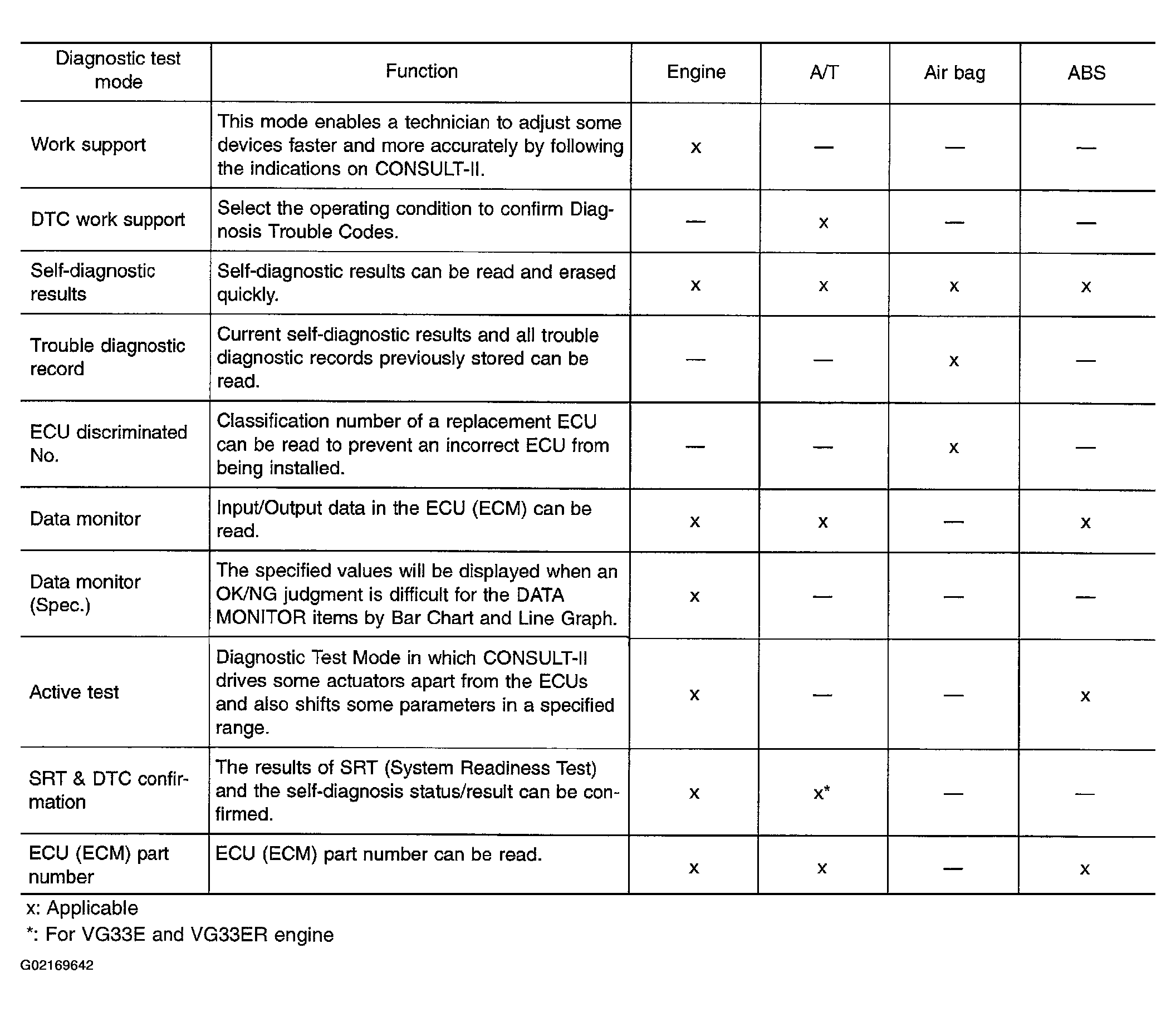

Fig 1: CONSULT-II Function And System Application Chart
G02169642Courtesy of NISSAN MOTOR CO., U.S.A.
