Door Switch Check

NOTE: For connector symbols, see HOW TO READ CONNECTOR SYMBOLS .

For door switch check, see Fig 1 and Fig 2 .

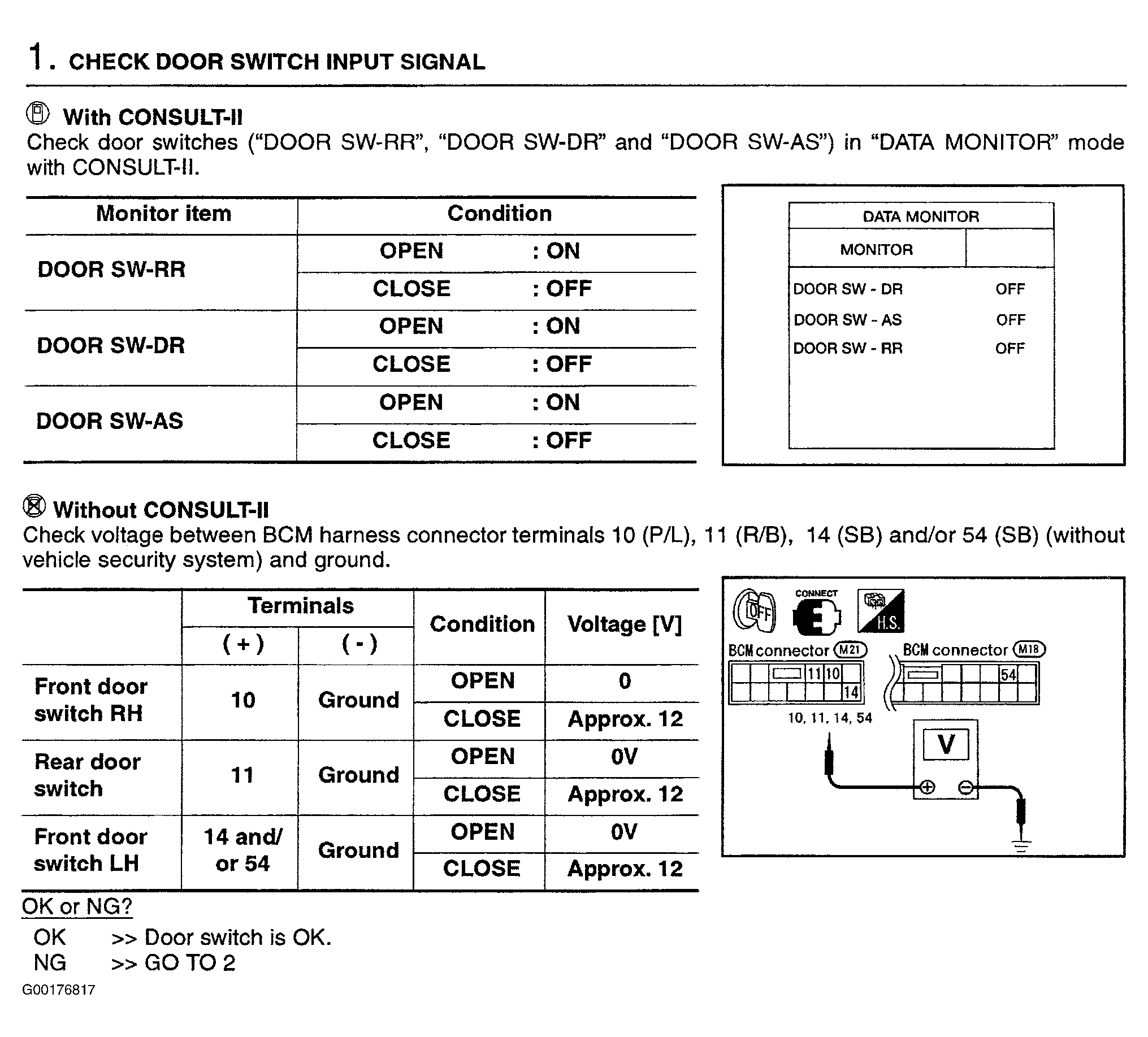

Fig 1: Identifying Door Switch Check, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

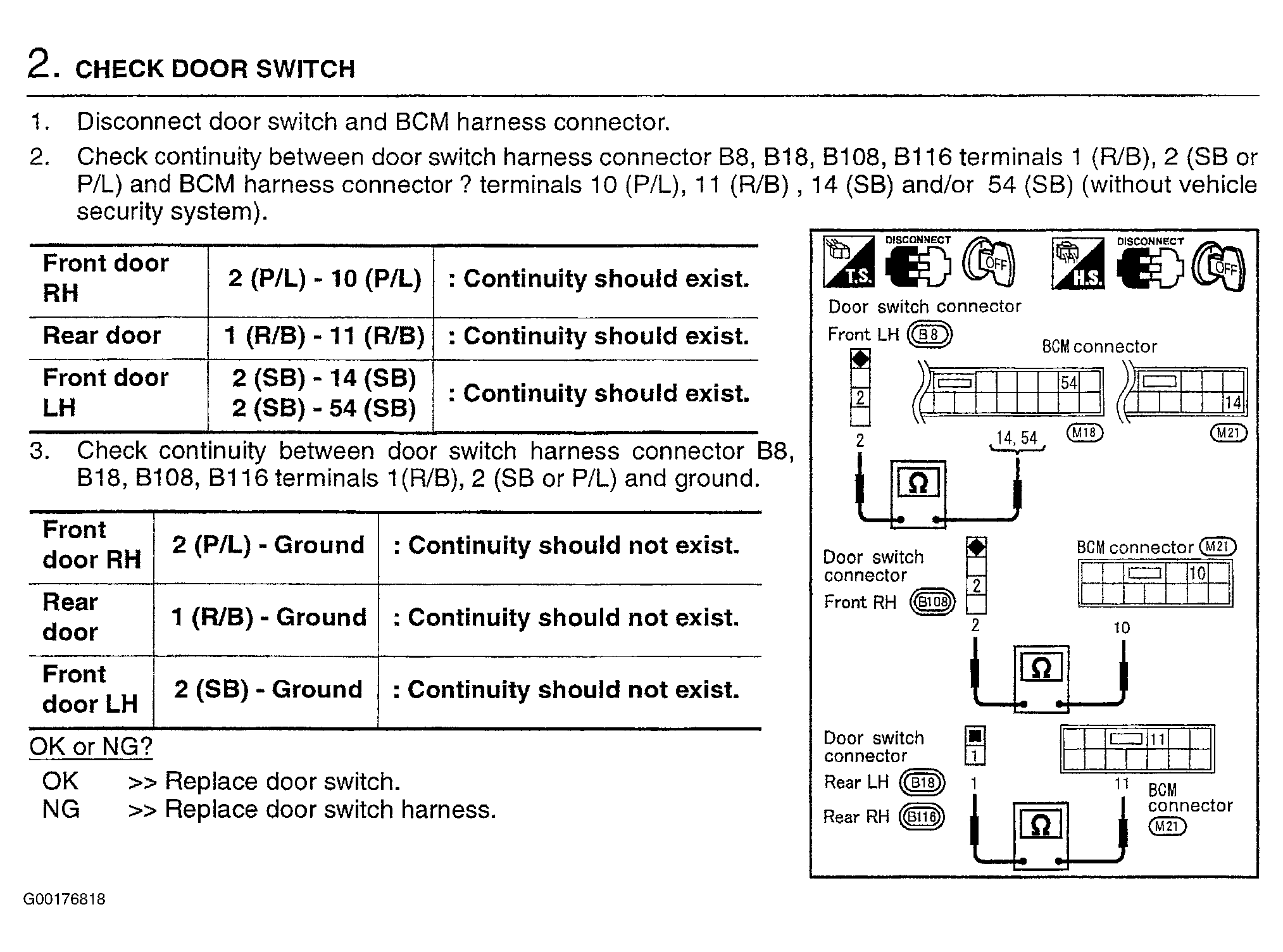

Fig 2: Identifying Door Switch Check, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
