Input/Output Signal Of TCM

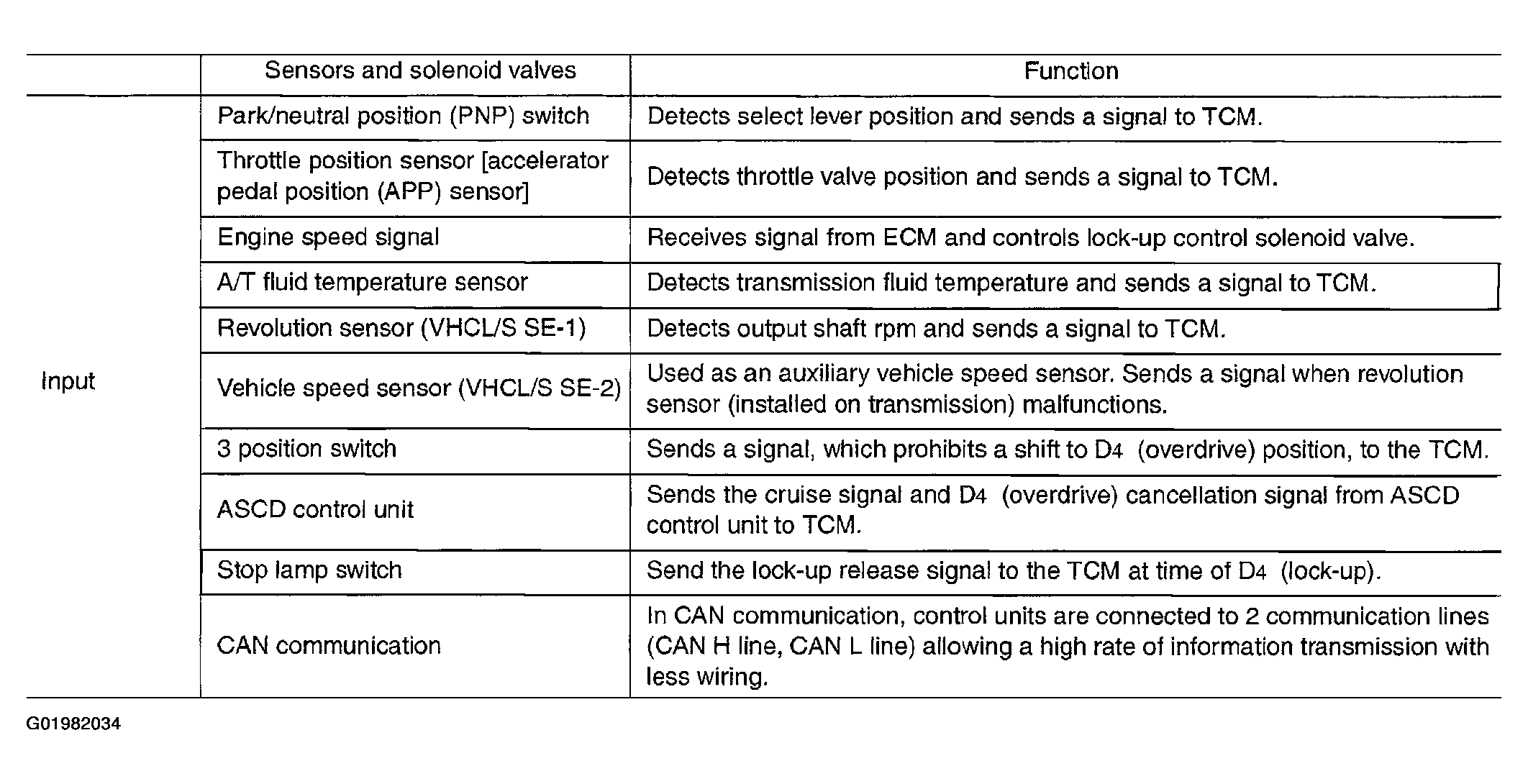

Fig 1: Input/Output Signal Of TCM Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

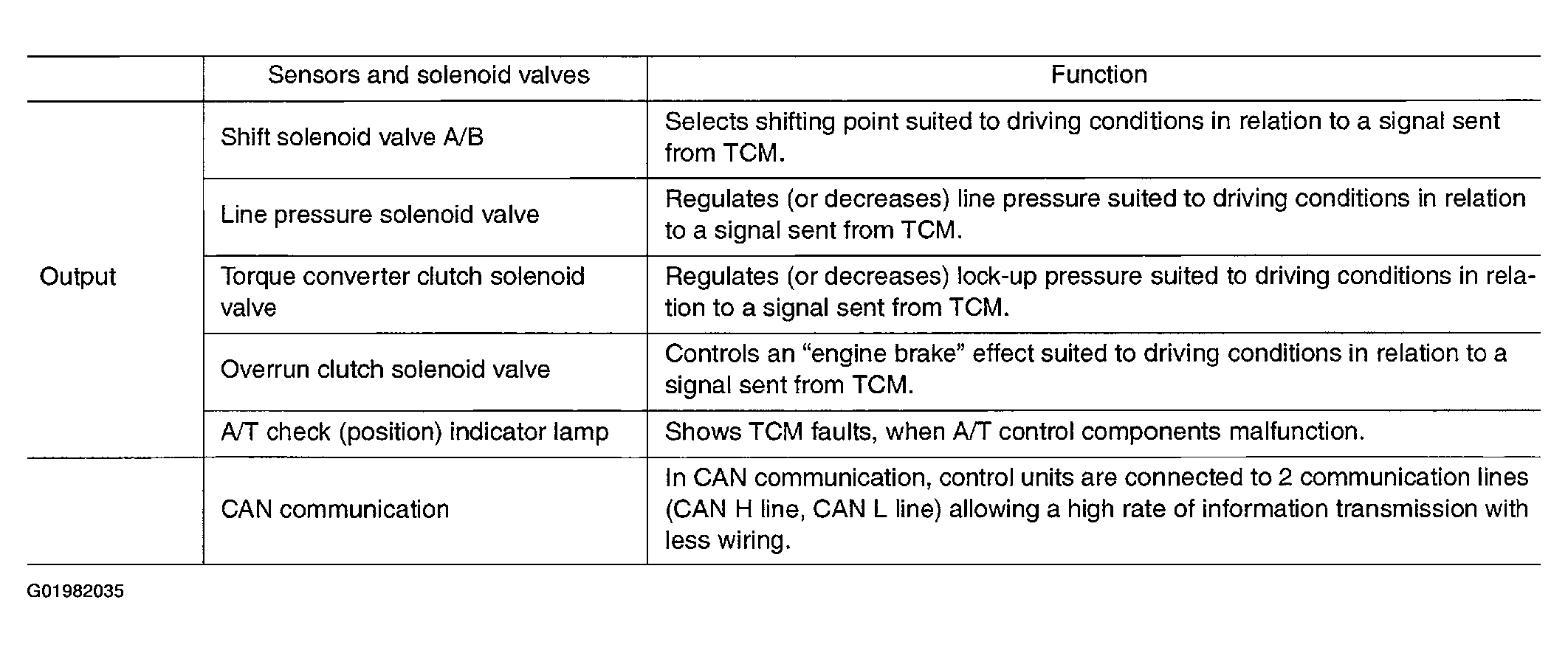

Fig 2: Input/Output Signal Of TCM Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
