Consult-II Reference Value In Data Monitor Mode

Remarks: Specification data are reference values.

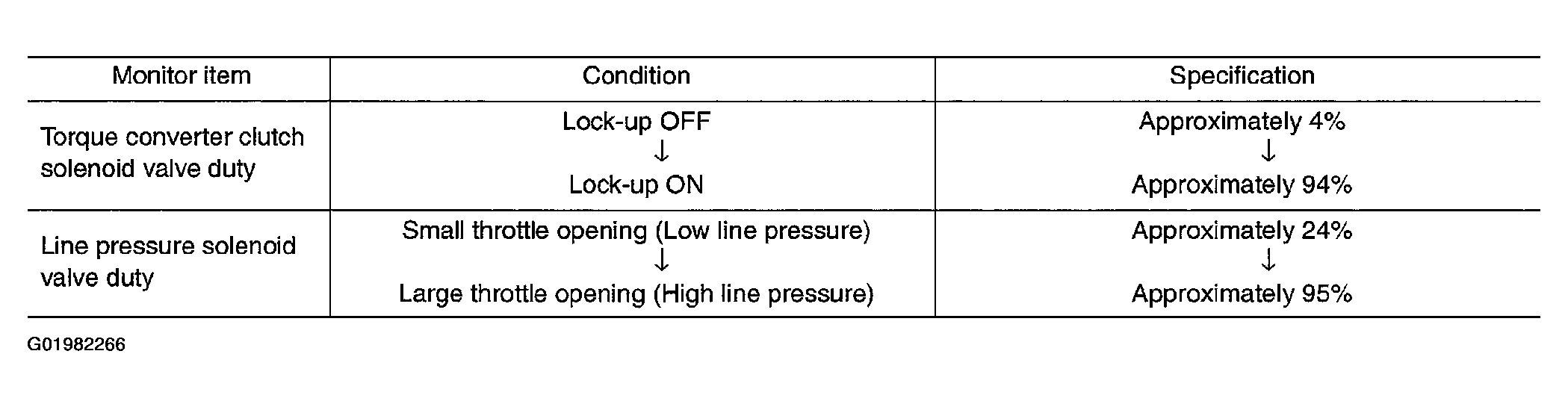

Fig 1: CONSULT-II Reference Value In Data Monitor Mode
G01982266Courtesy of NISSAN MOTOR CO., U.S.A.
