Fuel System Pressure Release

  1. Remove fuel pump fuse No. 3 from fuse/relay panel located under access cover at lower left side of dash. See Fig 1
  2. Start engine and allow to run until fuel is exhausted and engine stalls. Crank engine an additional 2 or 3 times to verify all pressure has dissipated. Turn ignition off. Install fuel pump fuse.

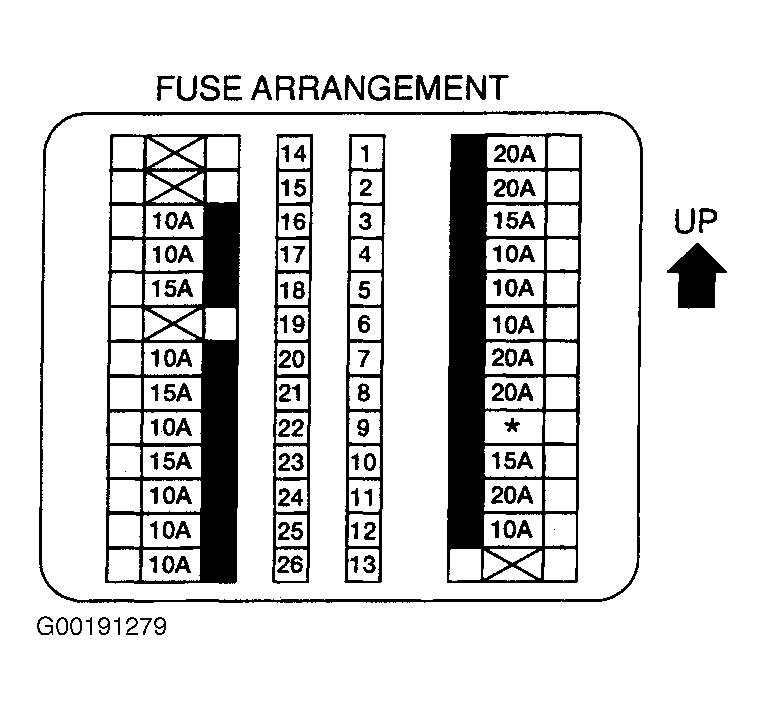

Fig 1: Locating Fuel Pump Fuse No. 3 In Passenger Compartment Fuse/Relay Panel
G00191279Courtesy of NISSAN MOTOR CO., U.S.A.
