Ignition Coil Resistance

Disconnect ignition coil connector. Check primary resistance between terminals "B" and "C" of ignition coil connector. See Fig 1. Resistance should be about 0.75 ohm. If resistance is not as specified, replace ignition coil.

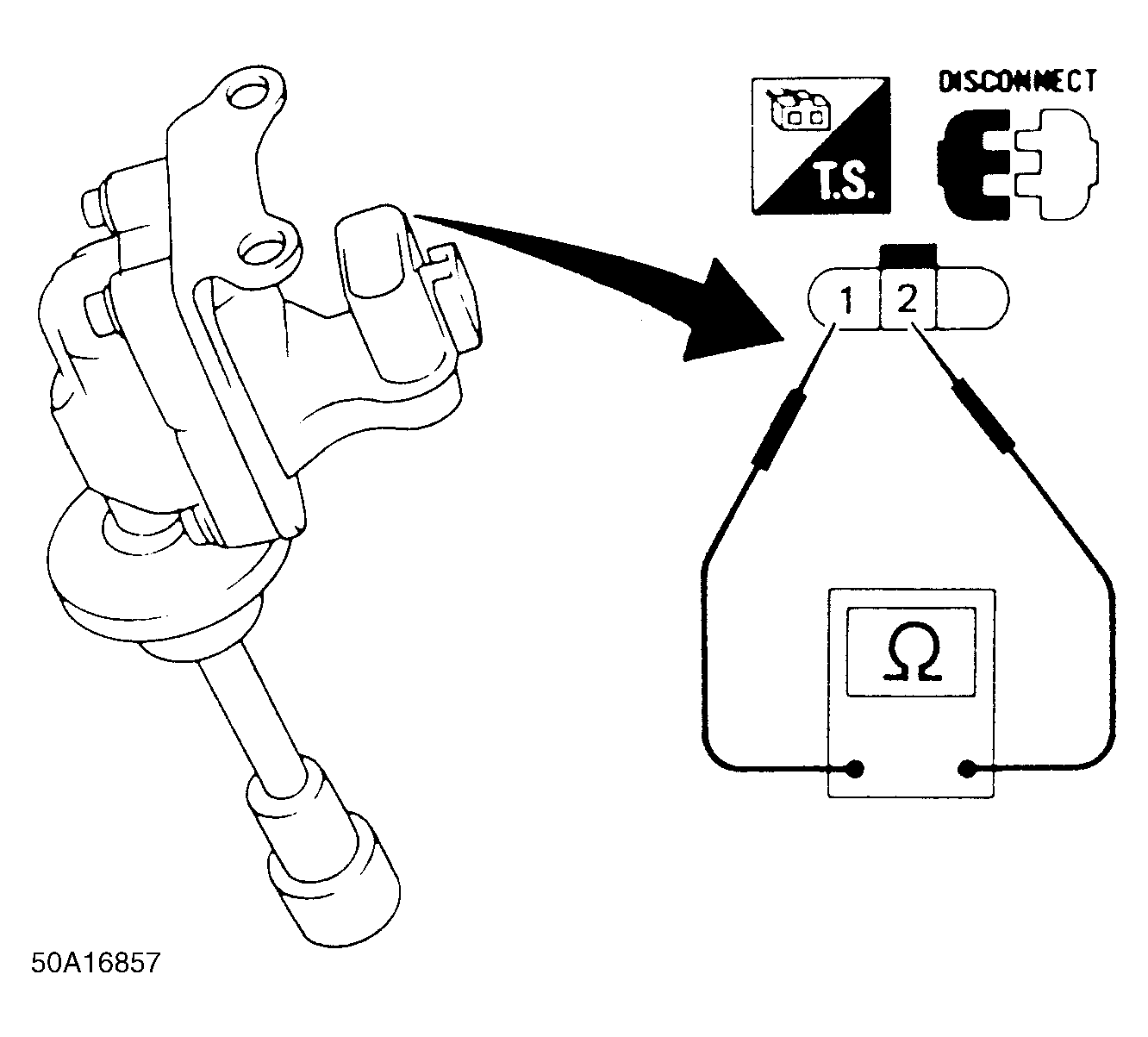

Fig 1: Identifying Ignition Coil Terminals
G50A16857Courtesy of NISSAN MOTOR CO., U.S.A.
