Radiator (Cooling) Fan Control (1.6L) Diagnostic Chart

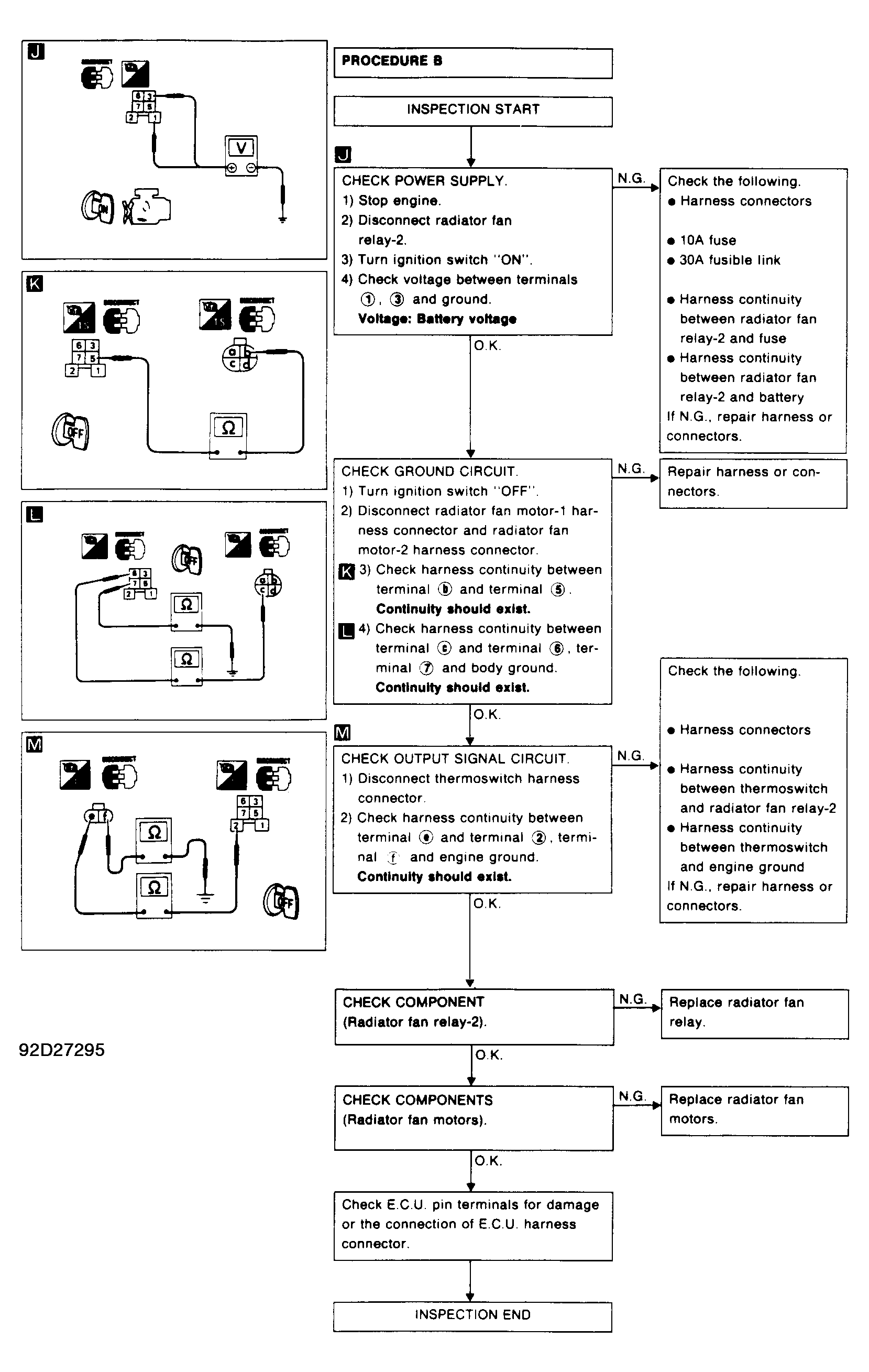

Fig 1: Radiator (Cooling) Fan Control (1.6L) (1 of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

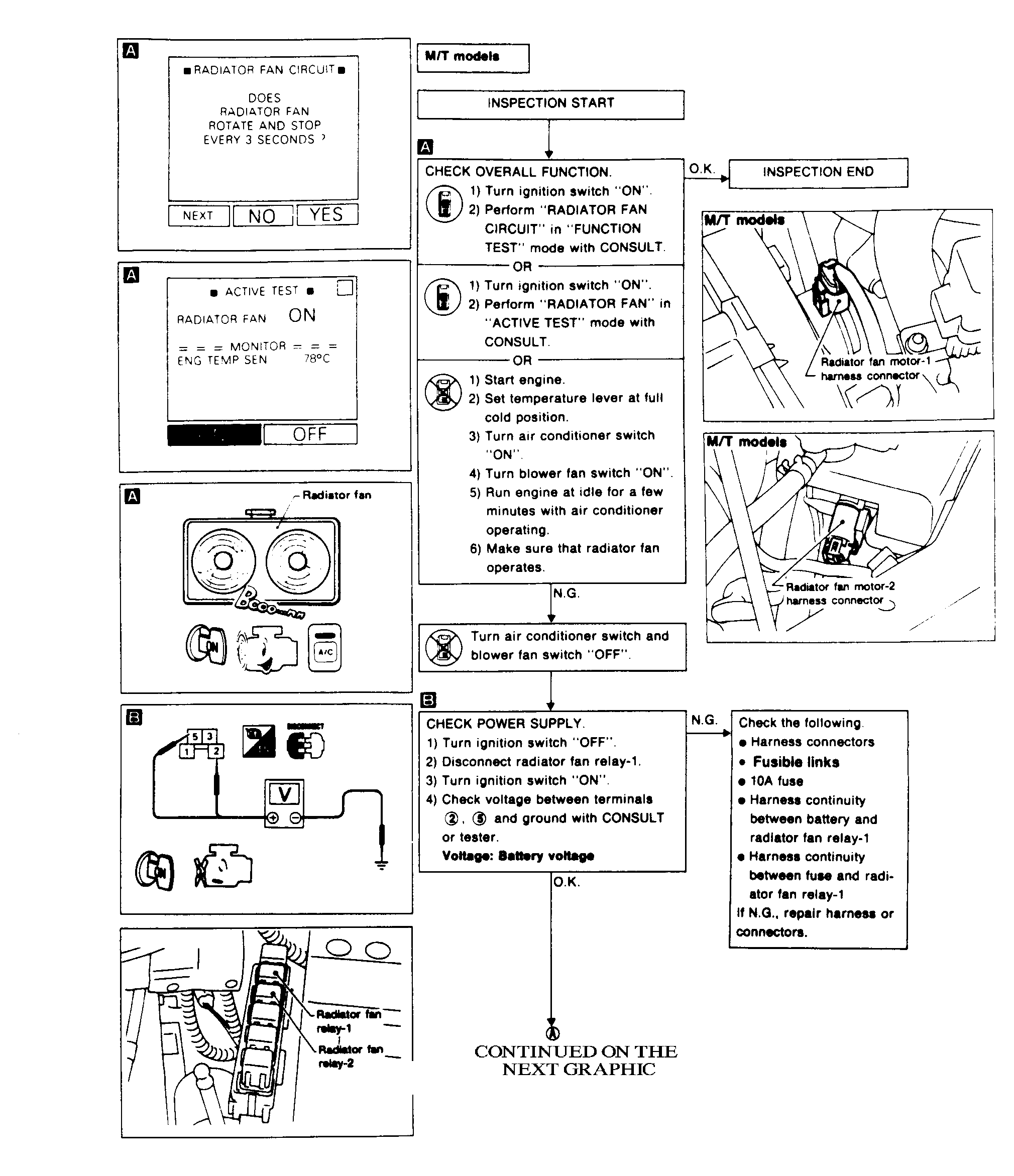

Fig 2: Radiator (Cooling) Fan Control (1.6L) (2 of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

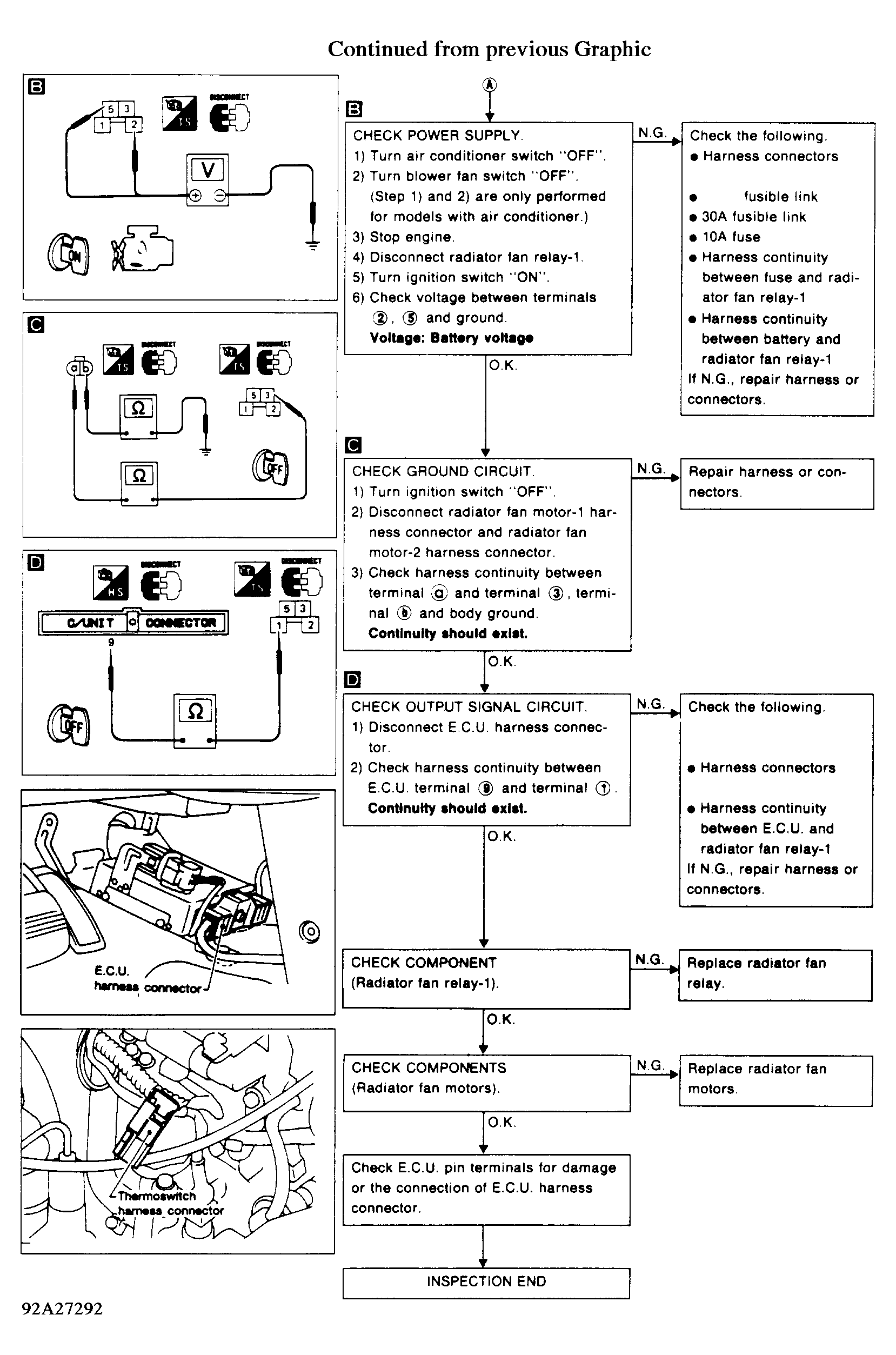

Fig 3: Radiator (Cooling) Fan Control (1.6L) (3 of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

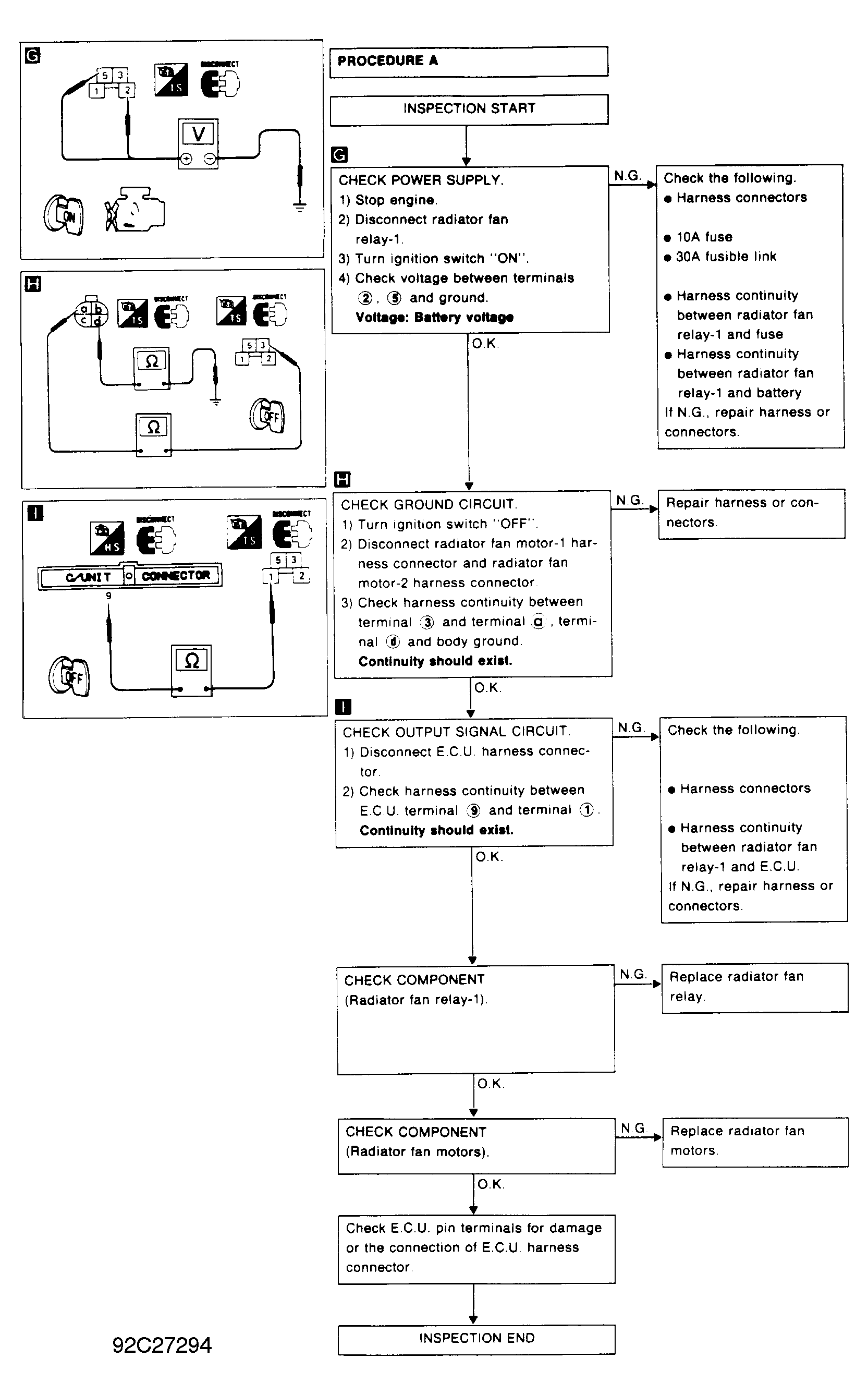

Fig 4: Radiator (Cooling) Fan Control (1.6L) (4 of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

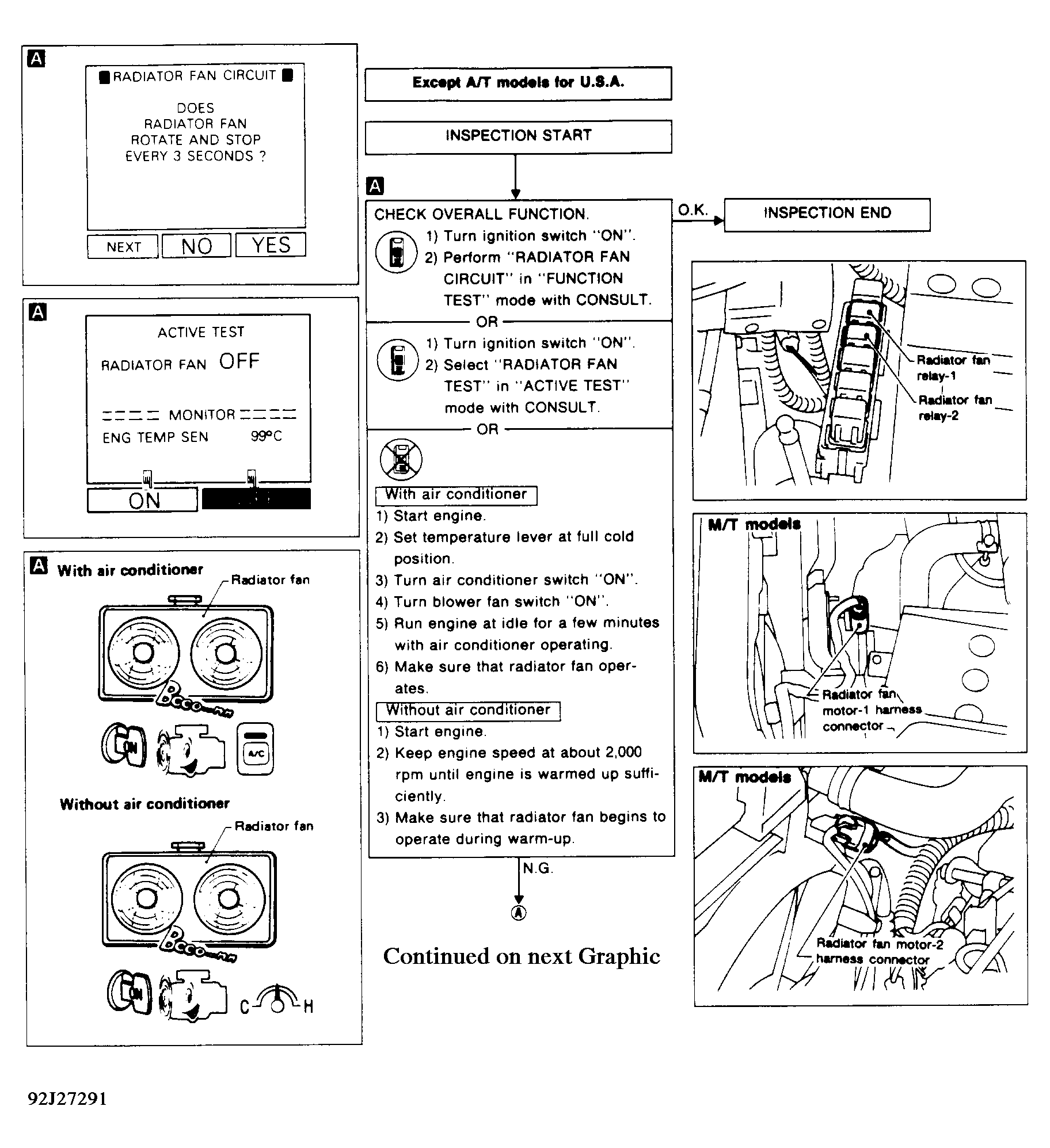

Fig 5: Radiator (Cooling) Fan Control (1.6L) (5 of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

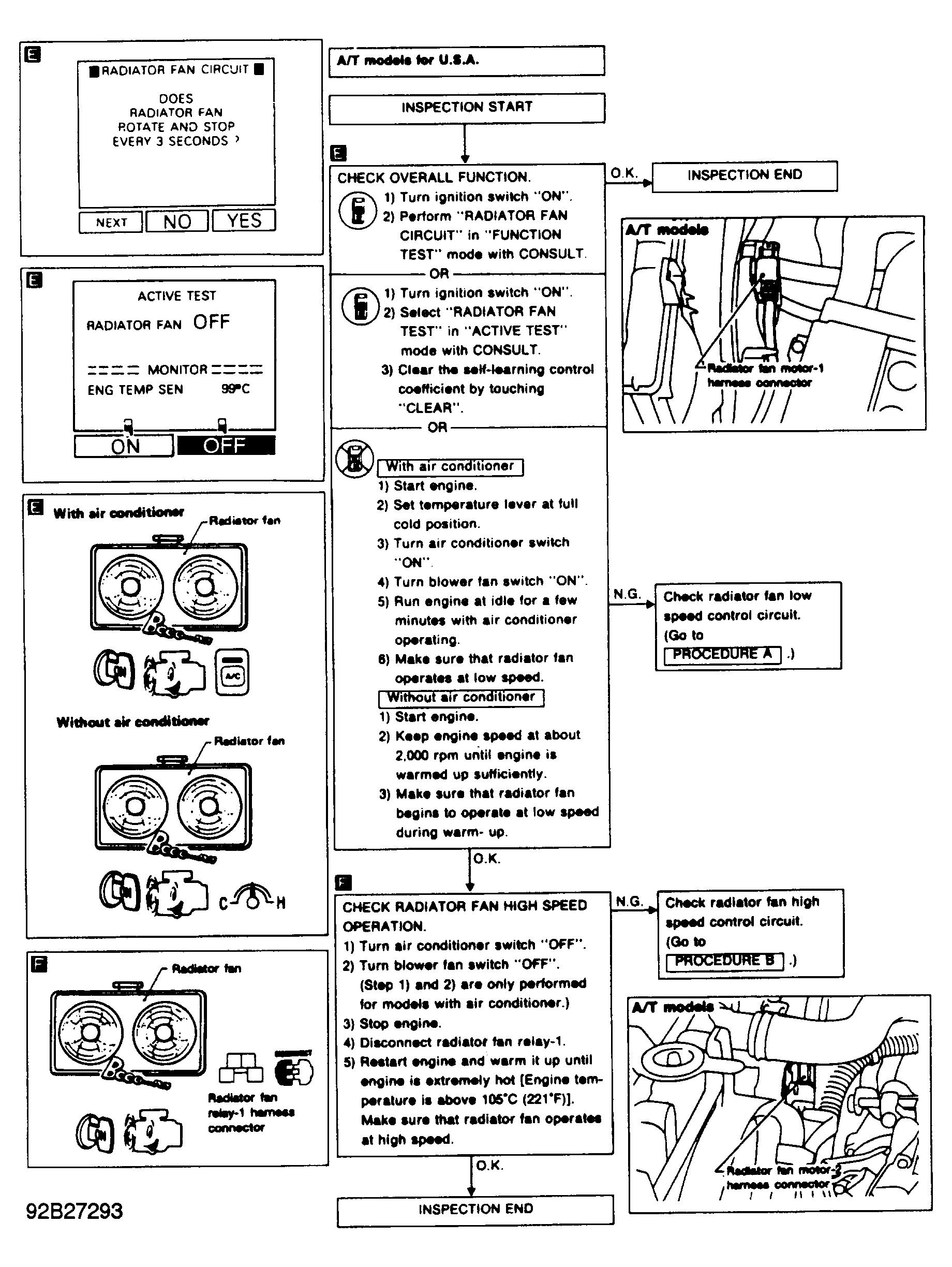

Fig 6: Radiator (Cooling) Fan Control (1.6L) (6 of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
