Power & Ground Circuits

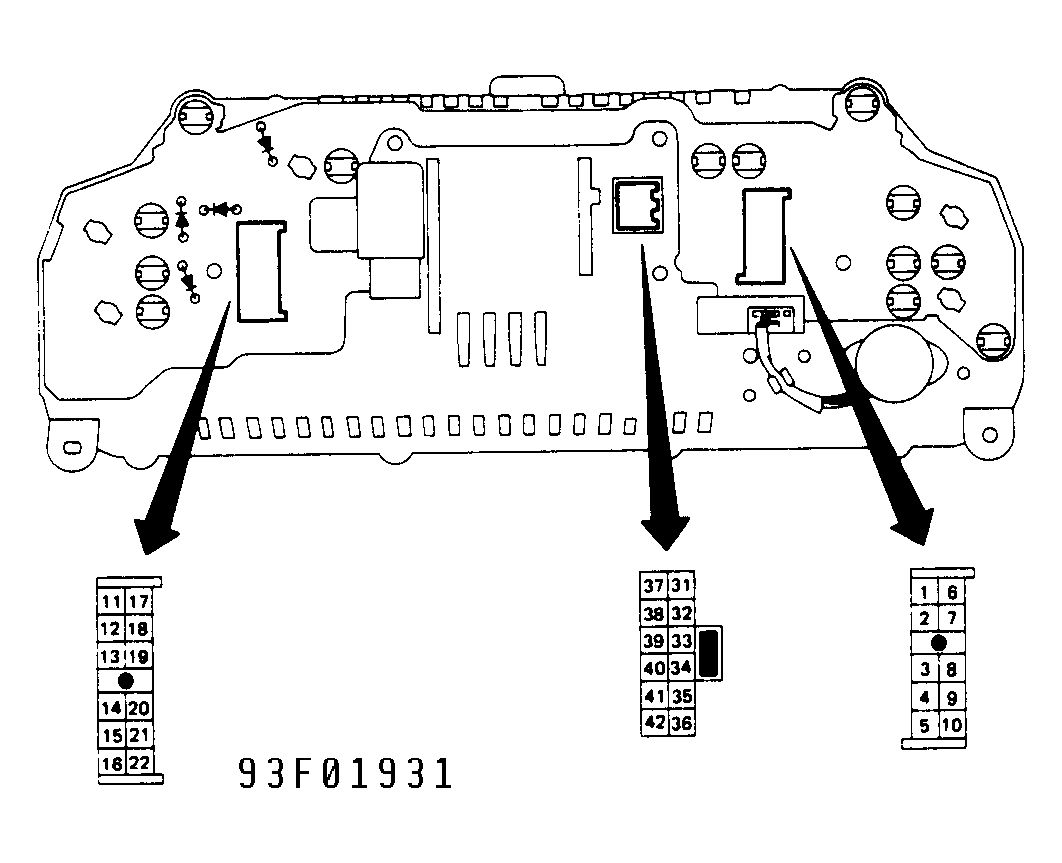

- Remove instrument cluster. Turn ignition on. Check voltage between ground and specified terminal of instrument cluster connector. See POWER CIRCUIT TEST table. See Figure . If battery voltage is not present, repair circuit.
- If battery voltage is present, turn ignition off. Check continuity between ground and instrument cluster connector terminal No. 34. If there is no continuity, repair circuit.
POWER CIRCUIT TEST (1)
| Terminal No. | Ignition Switch Position | Volts | ||
|---|---|---|---|---|
| 31 | OFF | 0 | ||
| 31 | ACC | 0 | ||
| 31 | ON | Battery | ||
| 36 | OFF | Battery | ||
| 36 | ACC | Battery | ||
| 36 | ON | Battery | ||
| 40 | OFF | 0 | ||
| 40 | ACC | Battery | ||
| 40 | ON | Battery | ||
|
||||
