Auxiliary Air Control Chart

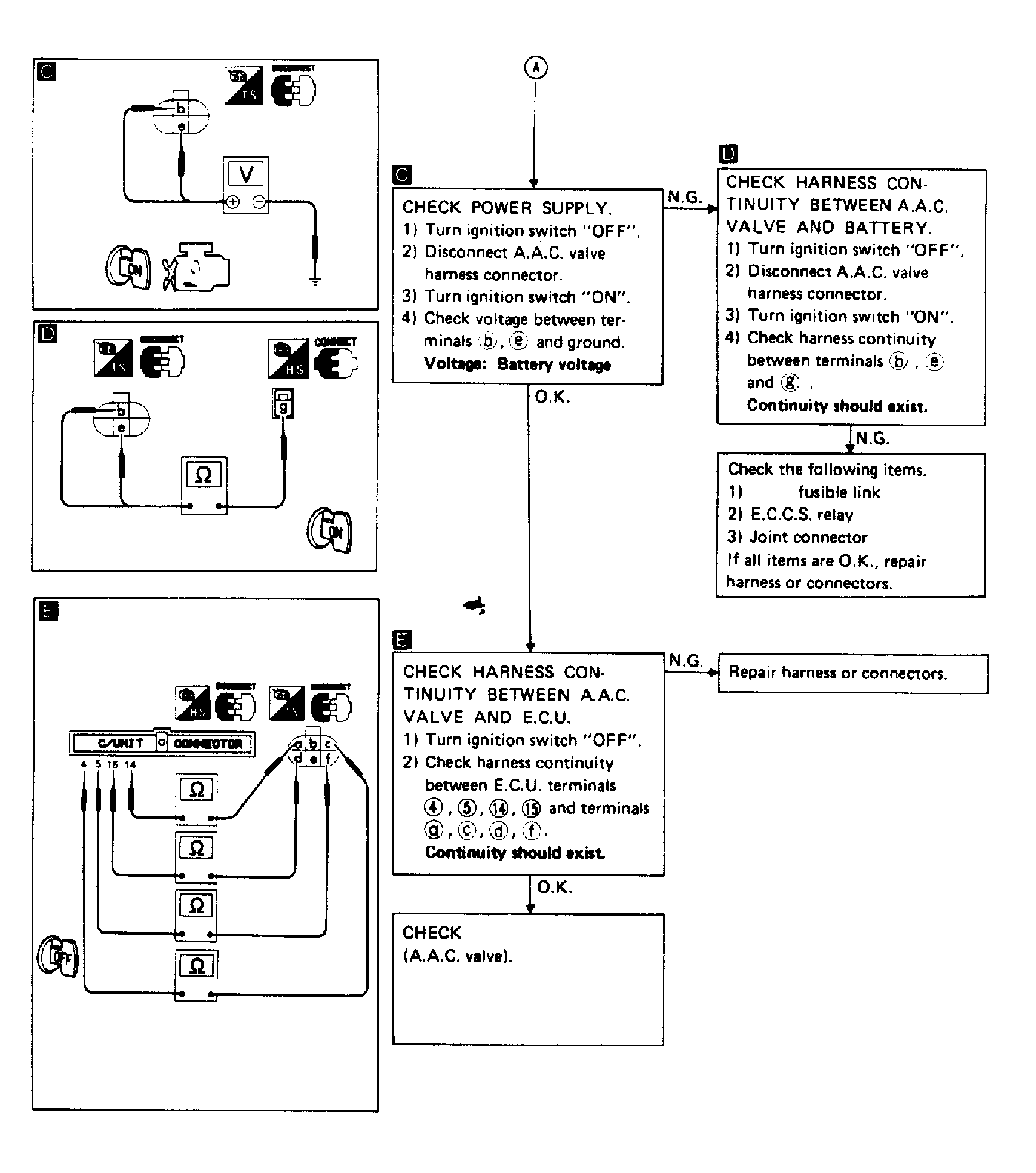

Fig 1: Auxiliary Air Control (AAC) Flow Chart (1 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

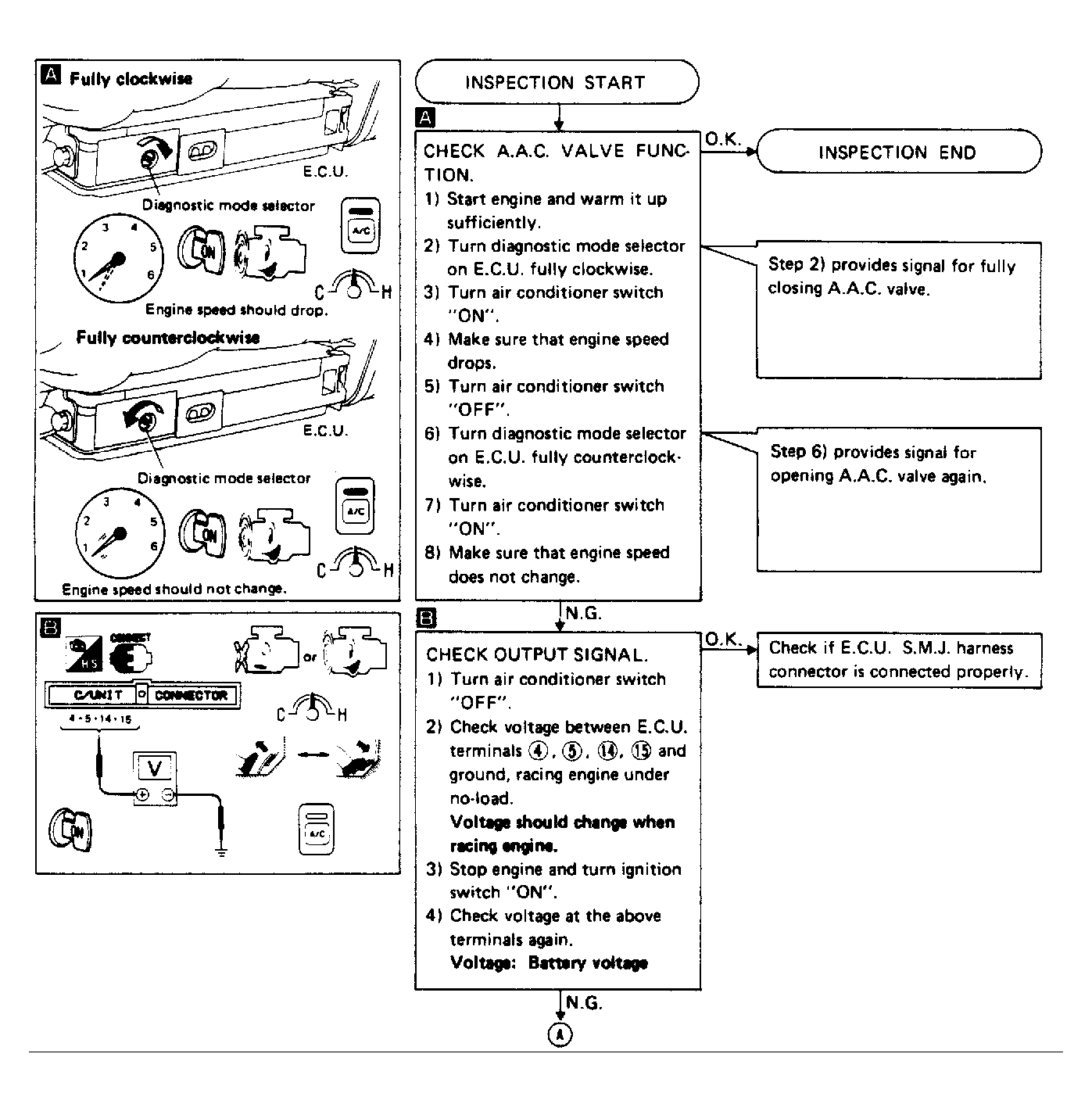

Fig 2: Auxiliary Air Control (AAC) Flow Chart (2 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

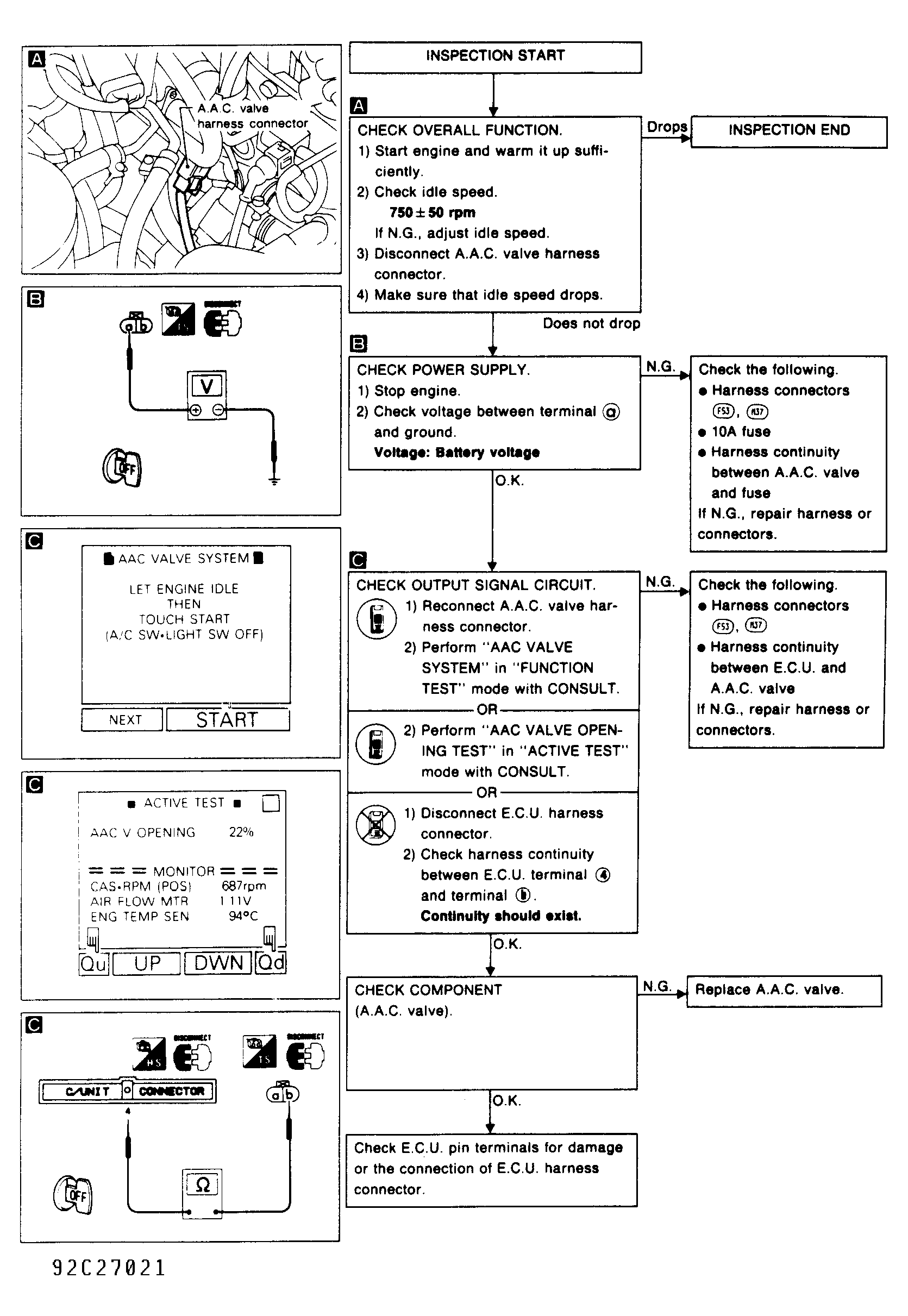

Fig 3: Auxiliary Air Control (AAC) Flow Chart Maxima SE (3 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
