Injector Malfunction Chart

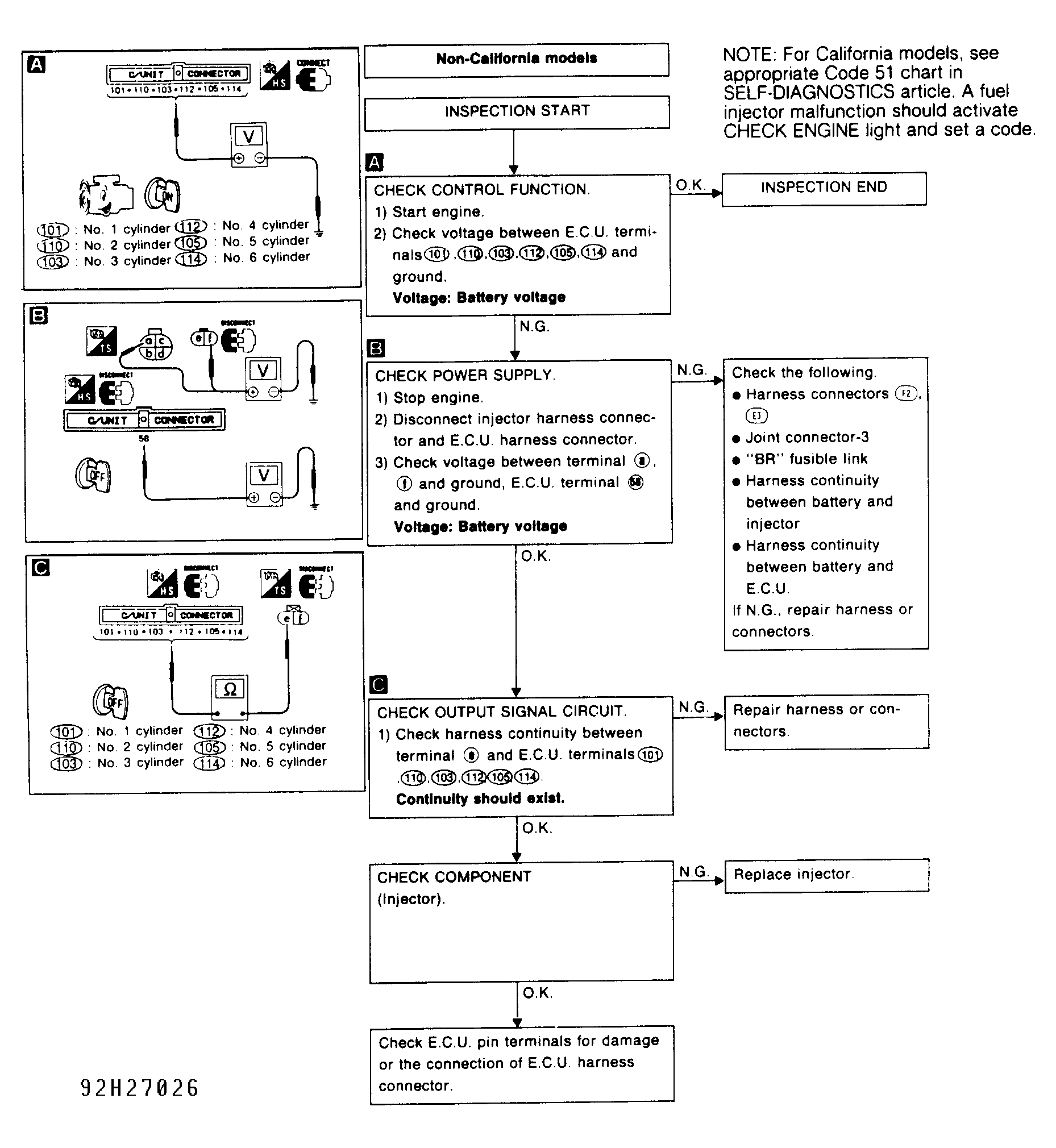

Fig 1: Injector Malfunction Flow Chart (1 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

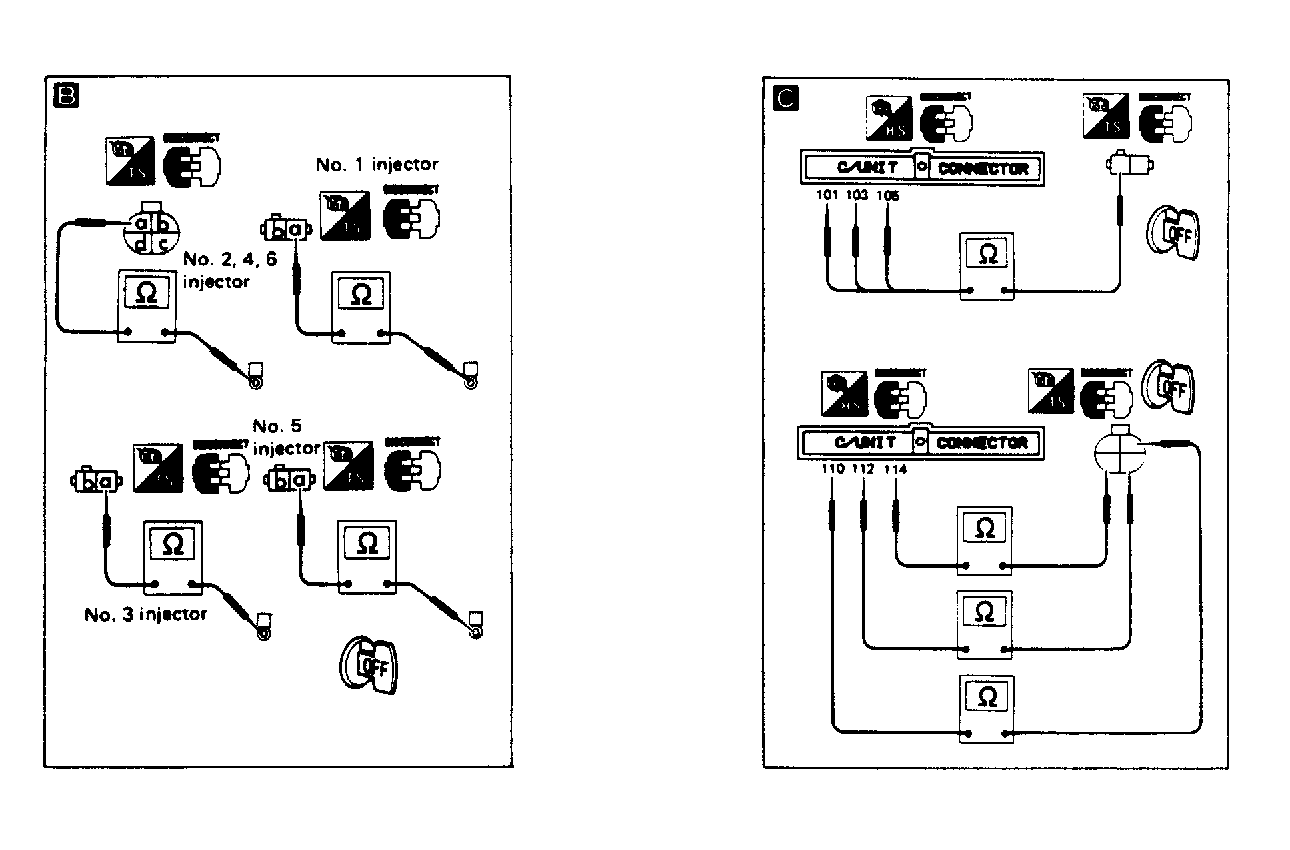

Fig 2: Injector Malfunction Flow Chart (2 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

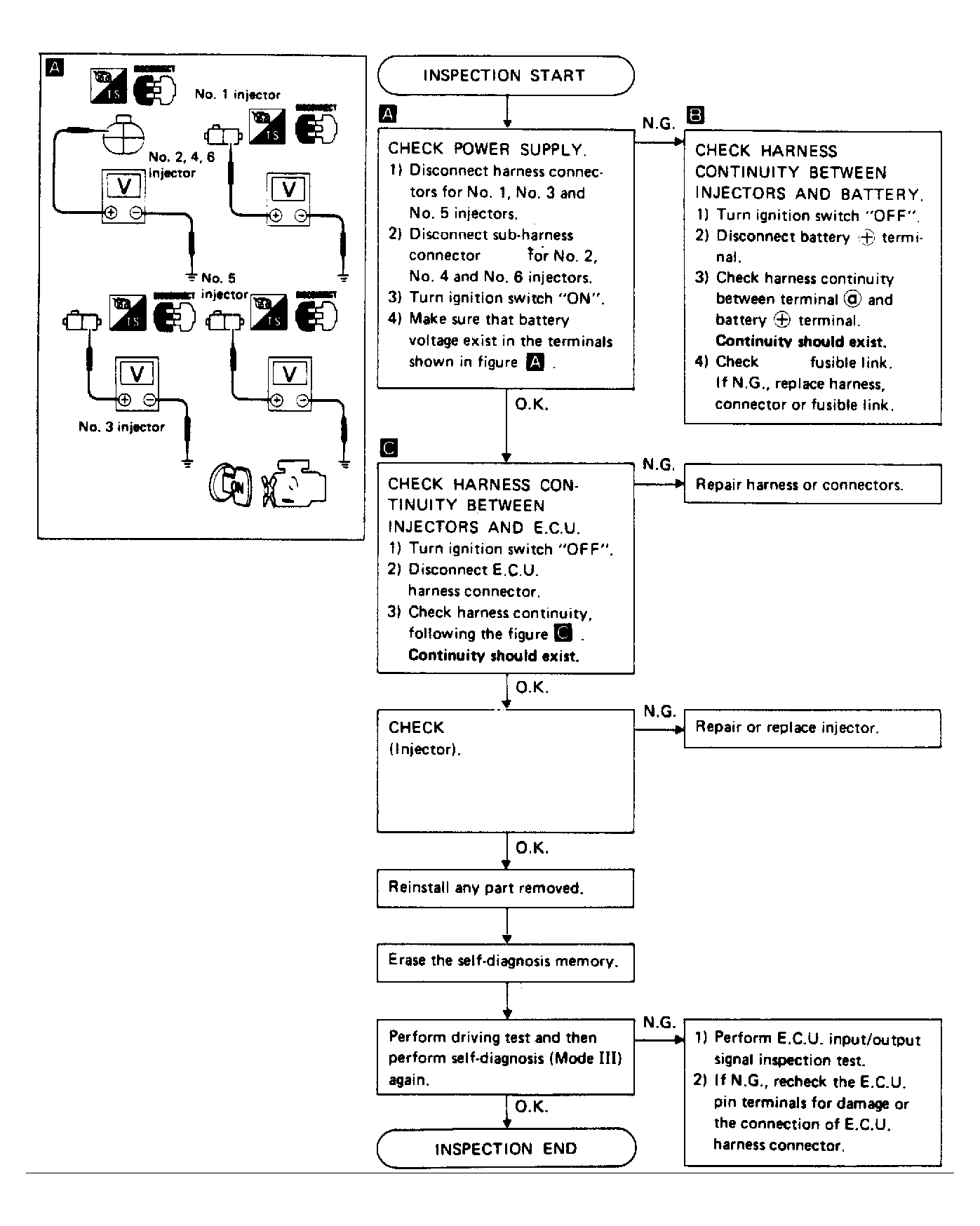

Fig 3: Injector Malfunction Flow Chart Maxima SE (3 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
