Neutral/Inhibitor Switch Chart

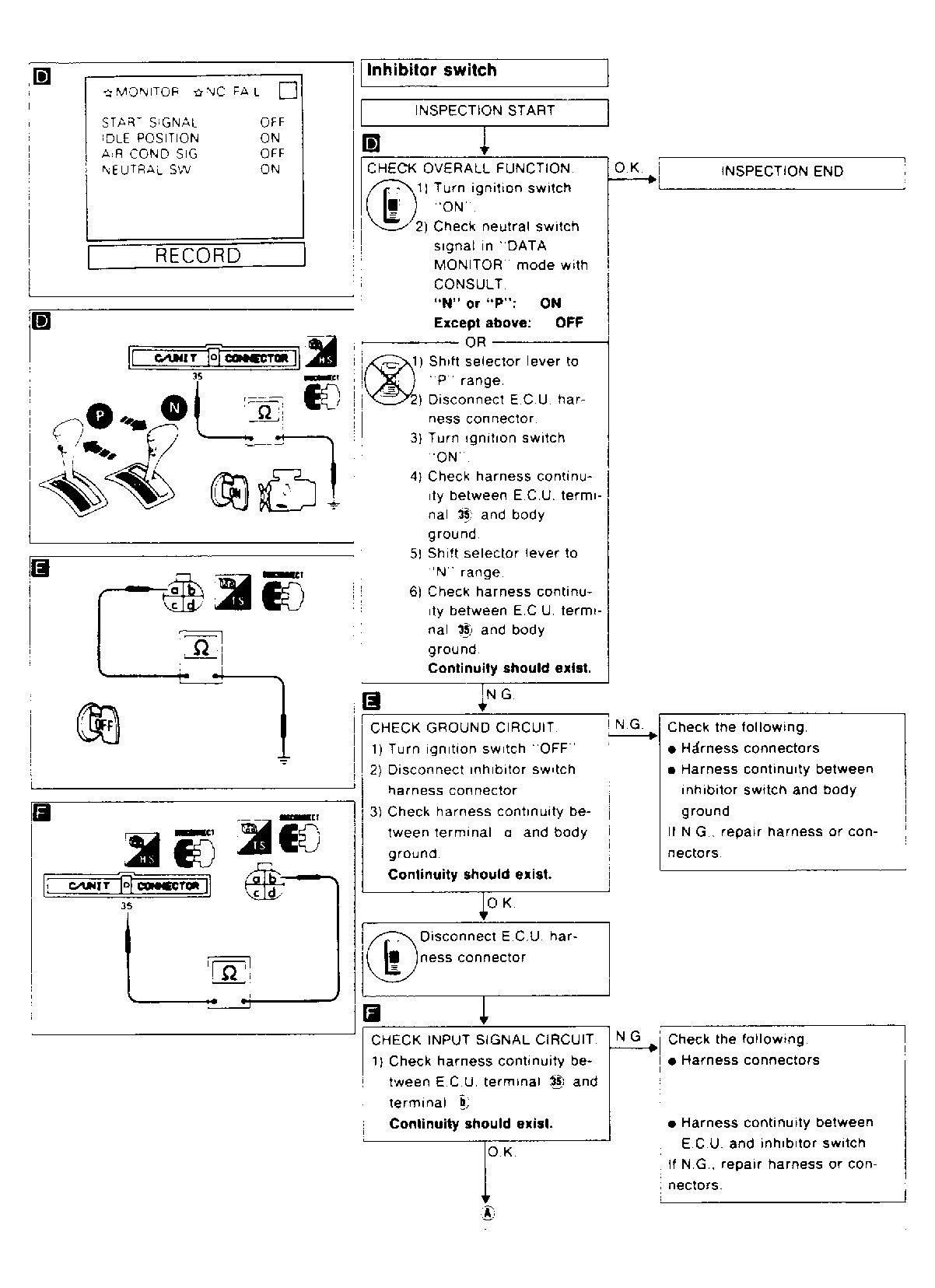

Fig 1: Neutral/Inhibitor Switch Diagnostic Chart (1 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

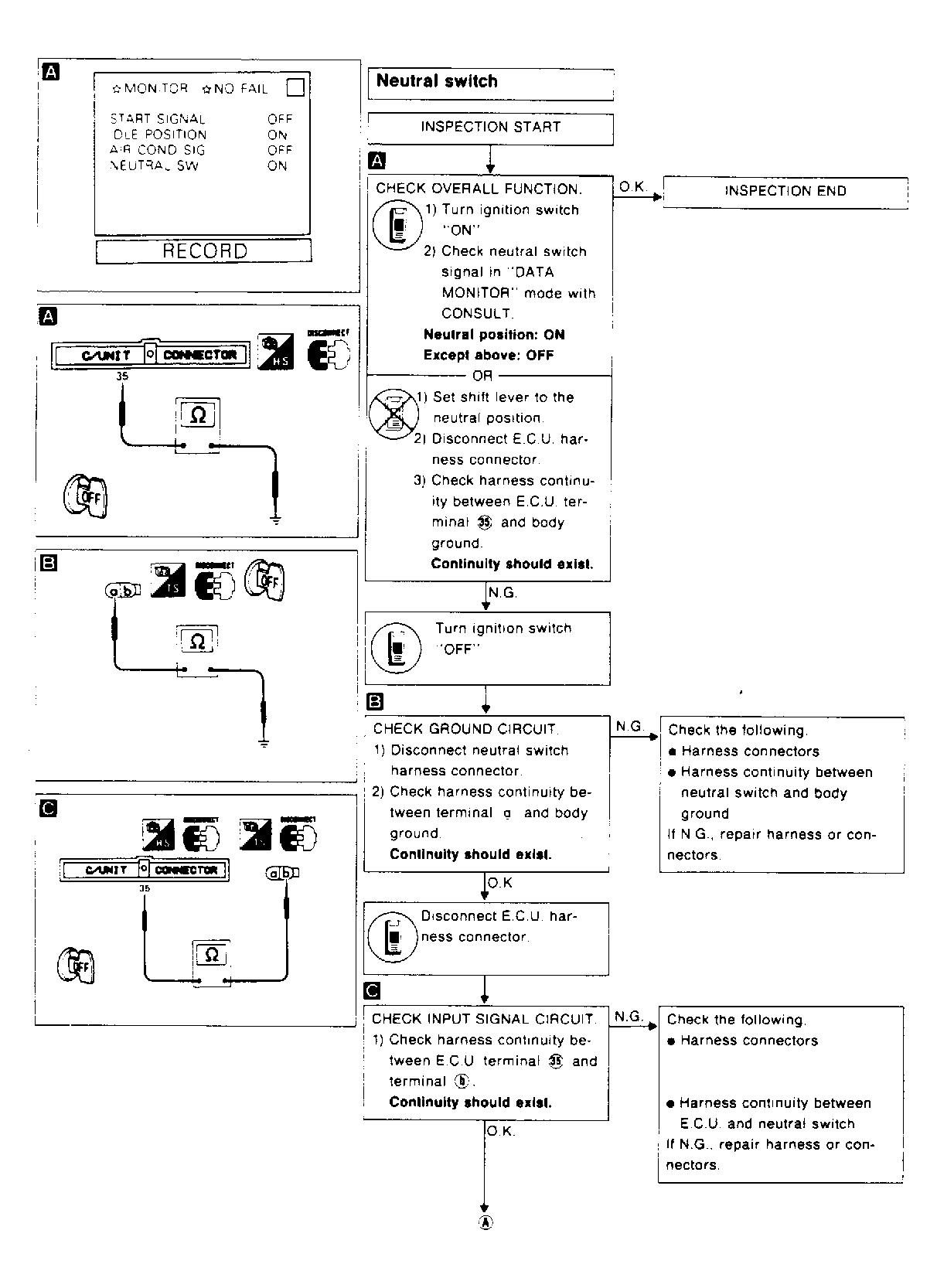

Fig 2: Neutral/Inhibitor Switch Diagnostic Chart (2 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Neutral/Inhibitor Switch Diagnostic Chart (3 of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
