Front Door Components

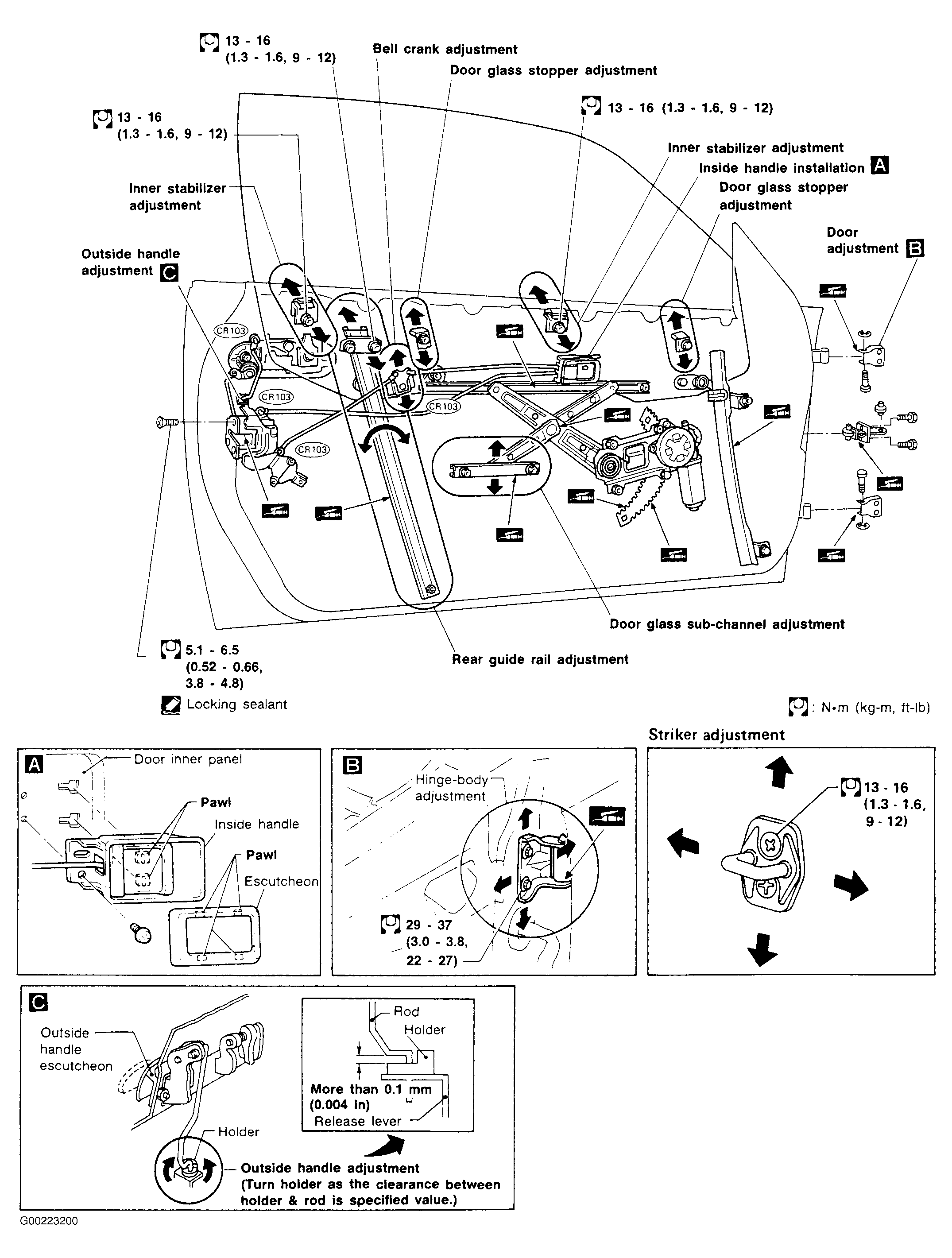

Fig 1: Exploded View Of Front Door Components (Coupe)
Courtesy of NISSAN MOTOR CO., U.S.A.

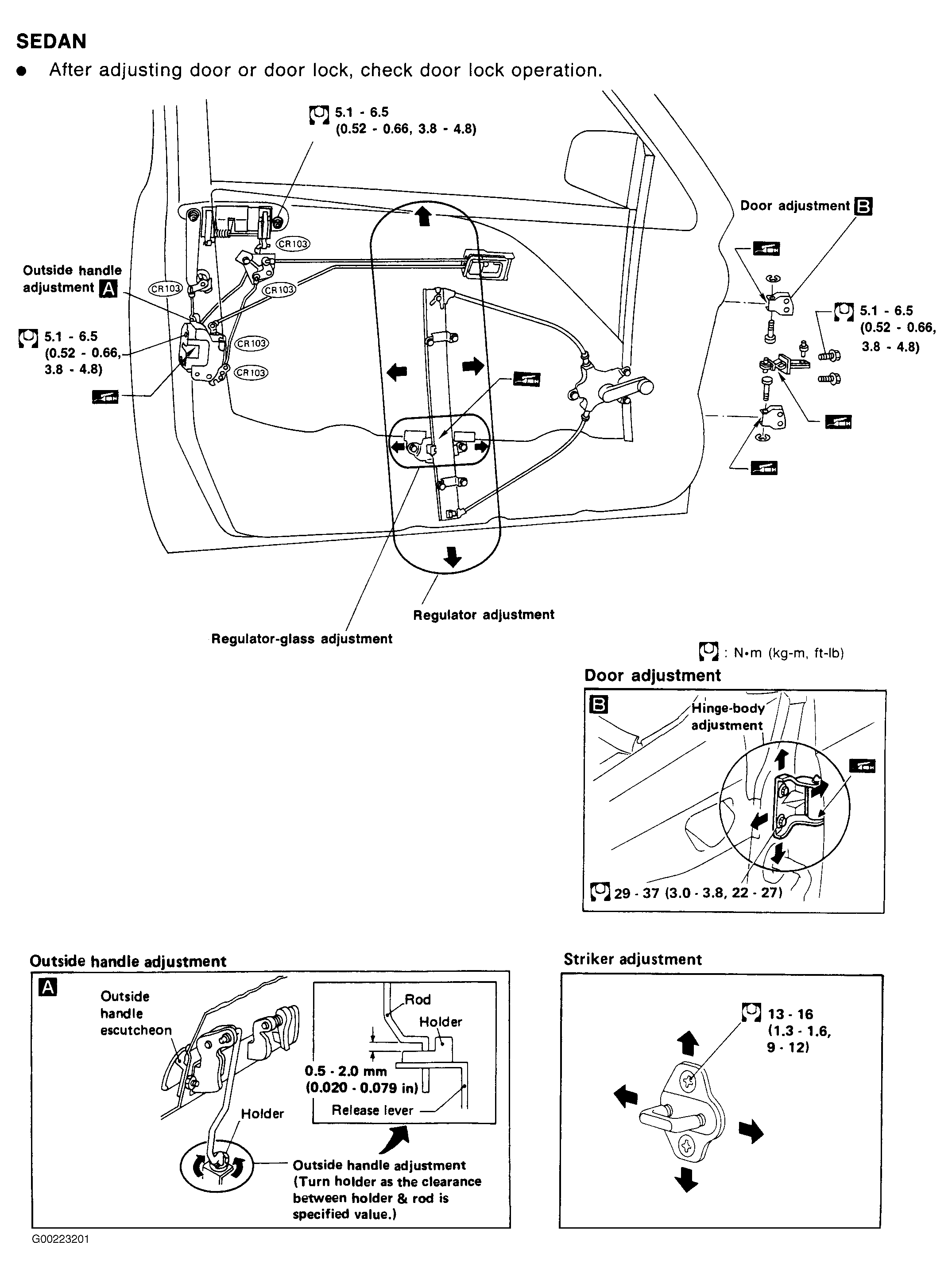

Fig 2: Exploded View Of Front Door Components (Sedan)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
