Injector Malfunction Chart

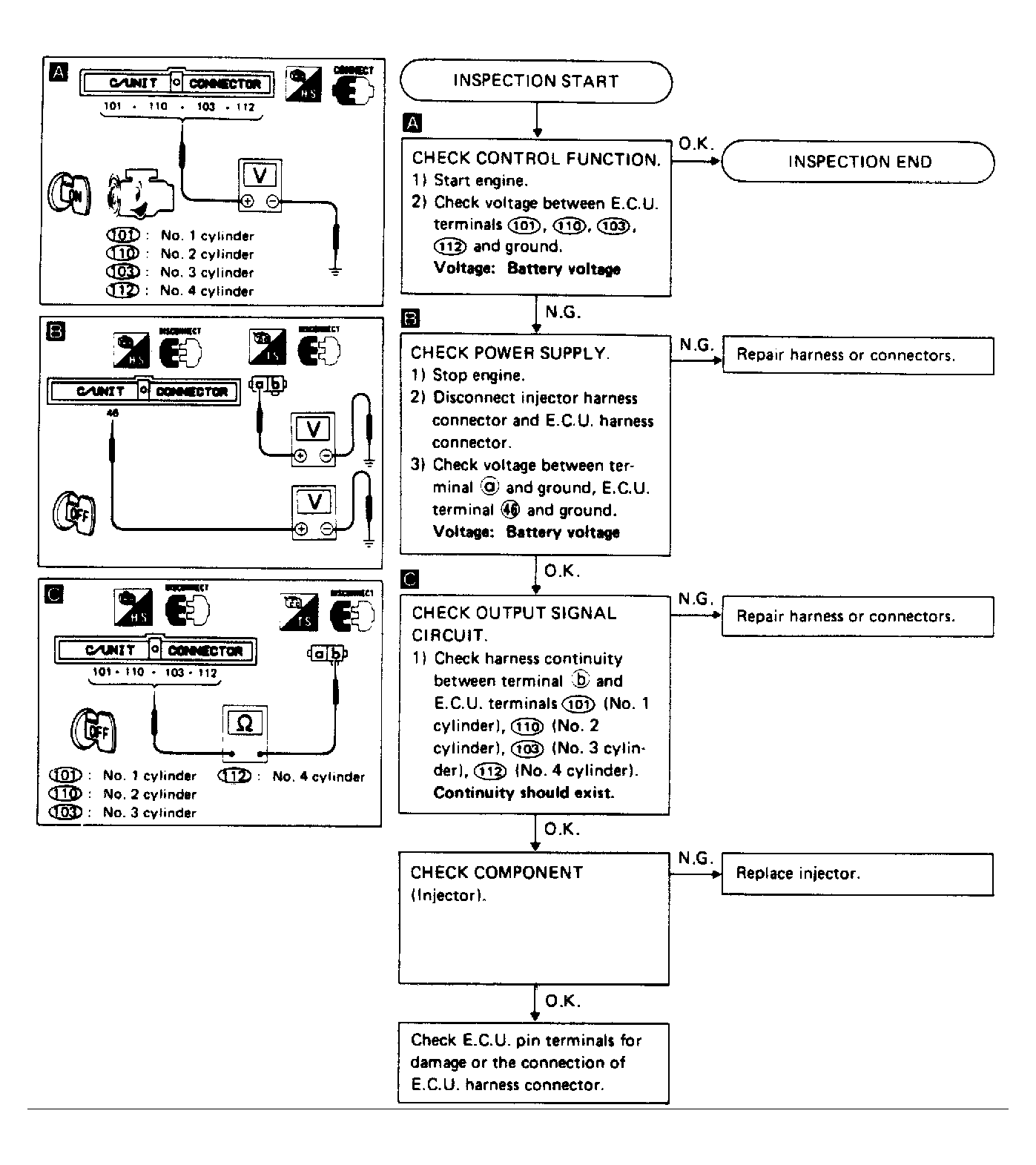

Fig 1: Injector Malfunction Diagnostic Chart (2.4L)

Courtesy of NISSAN MOTOR CO., U.S.A.

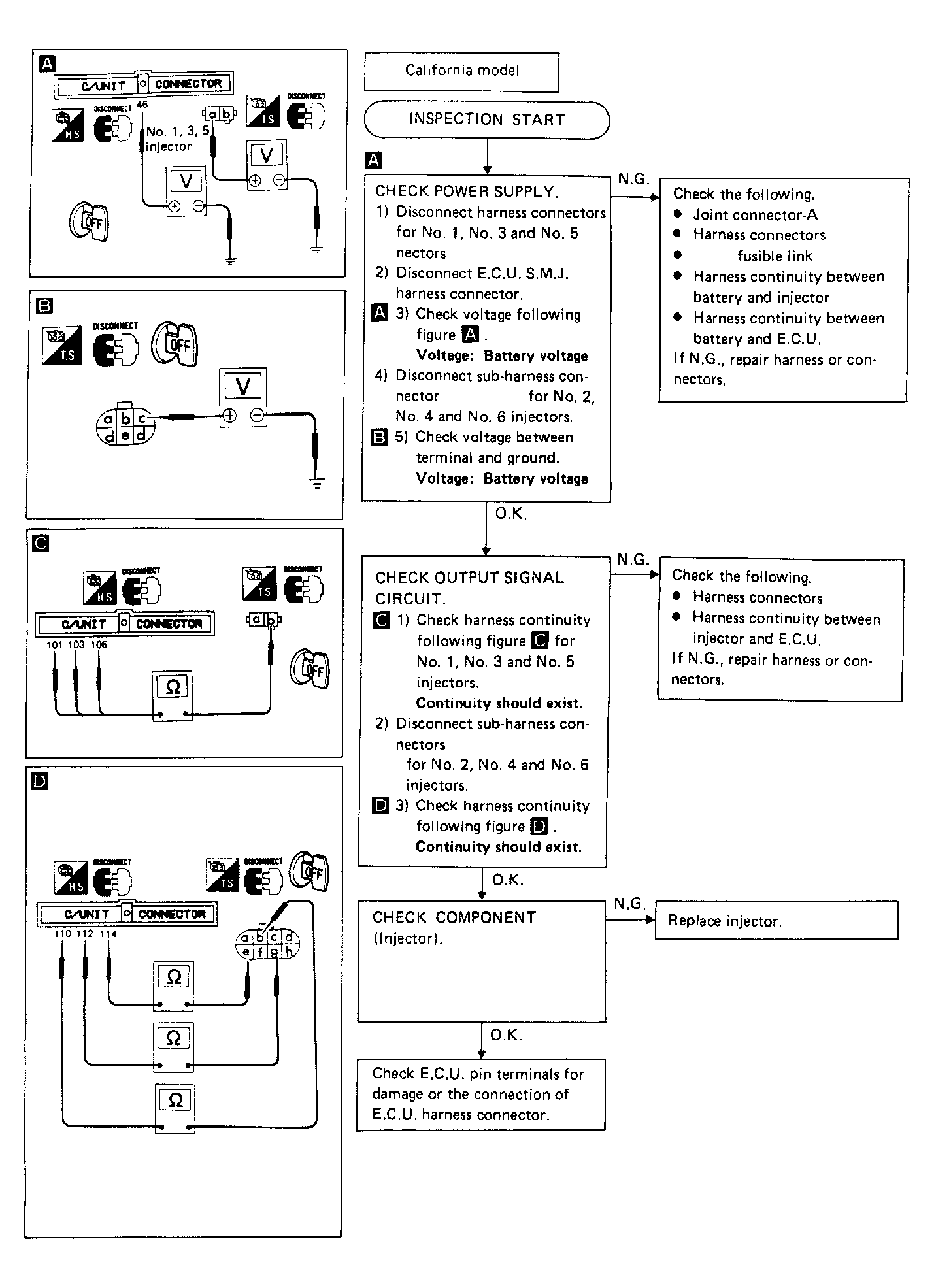

Fig 2: Injector Malfunction Diagnostic Chart (3.0L) (1 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

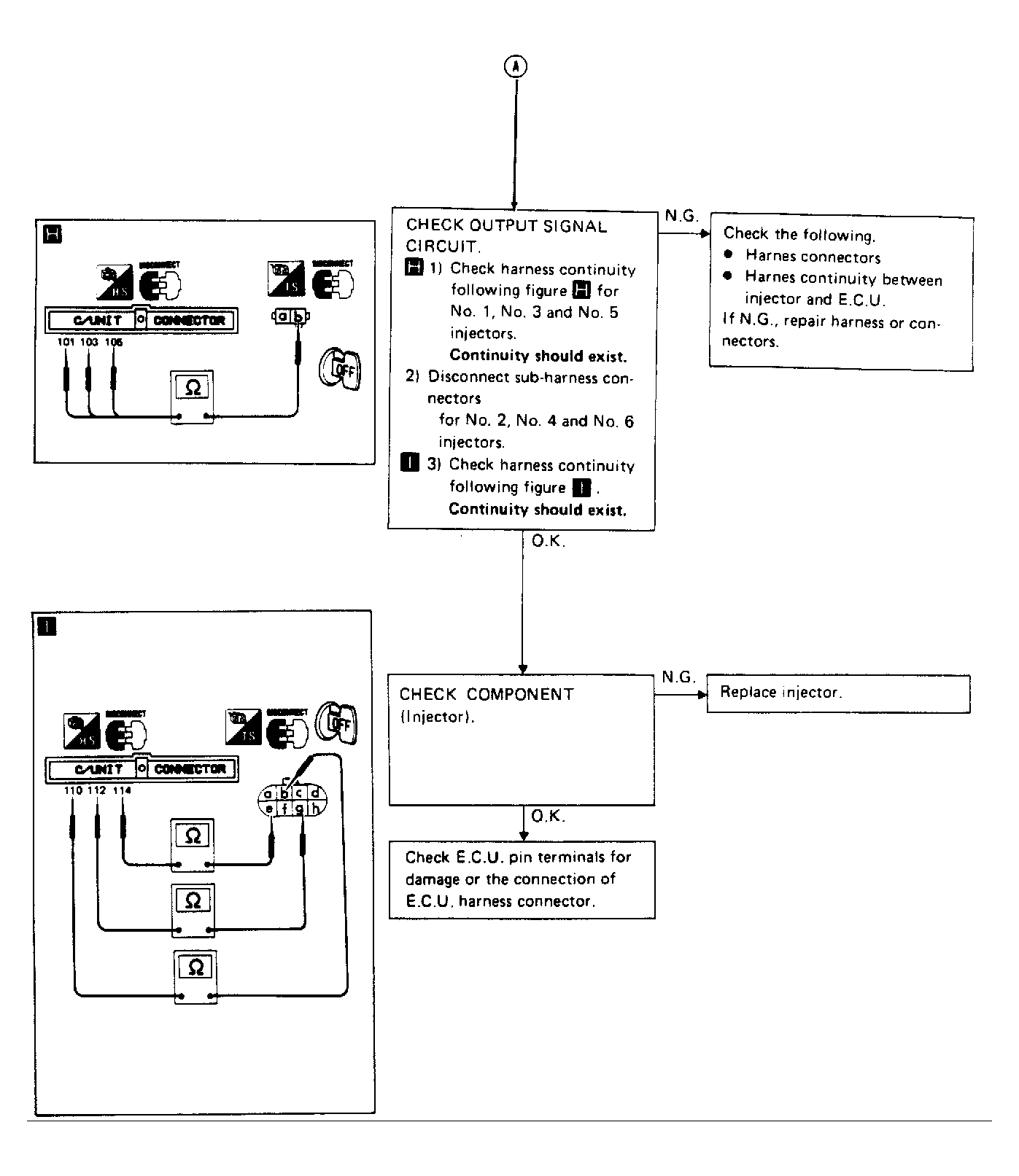

Fig 3: Injector Malfunction Diagnostic Chart (3.0L) (2 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

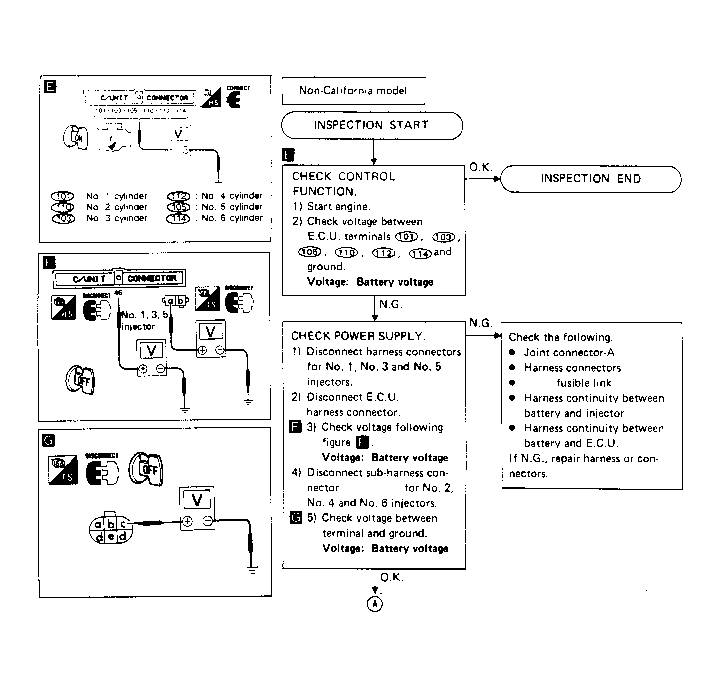

Fig 4: Injector Malfunction Diagnostick Chart (3.0L) (3 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
