Auxiliary Air Control Chart

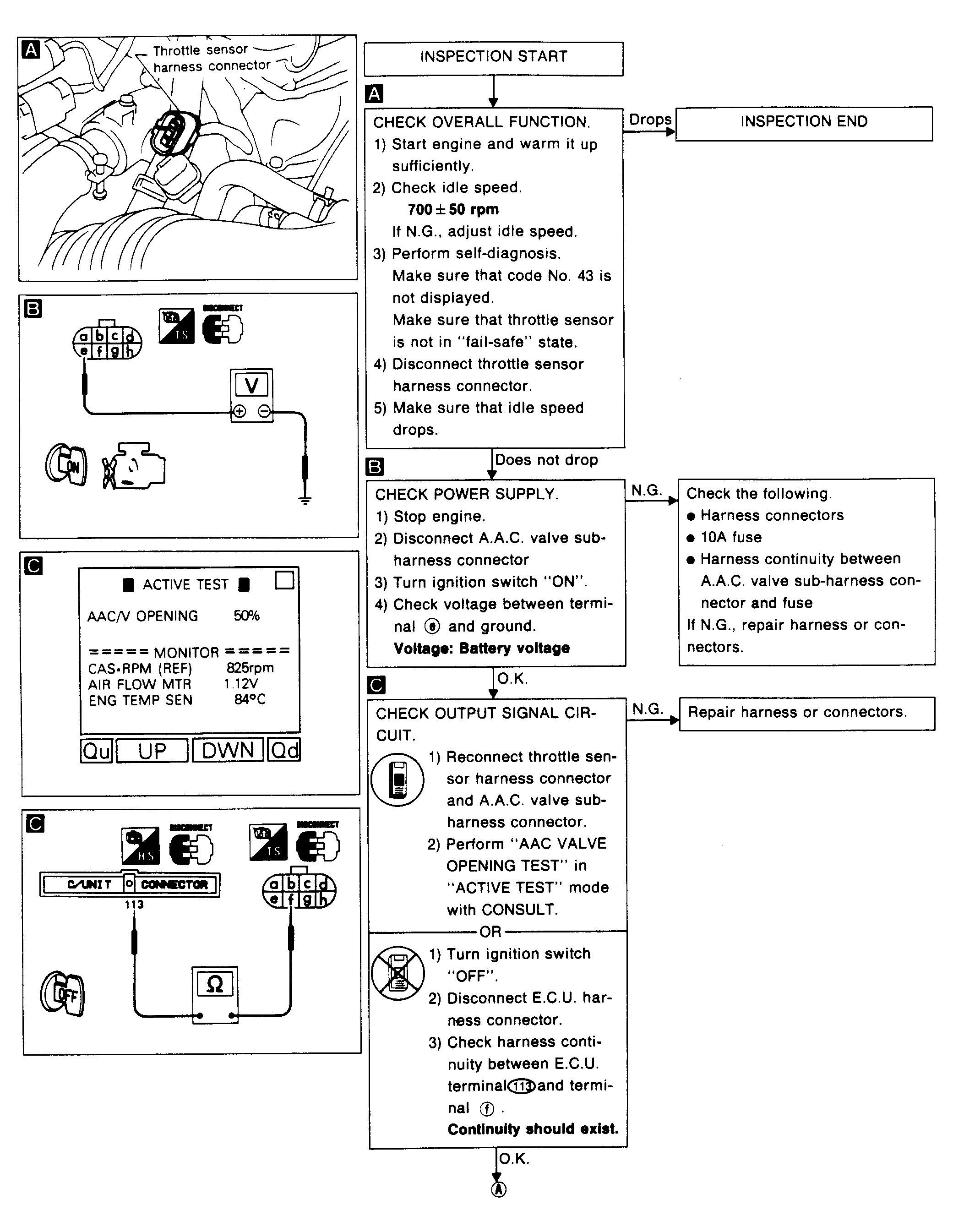

Fig 1: Auxiliary Air Control (AAC) Diagnostic Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Auxiliary Air Control (AAC) Diagnostic Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
