Fast Idle Control Device Chart

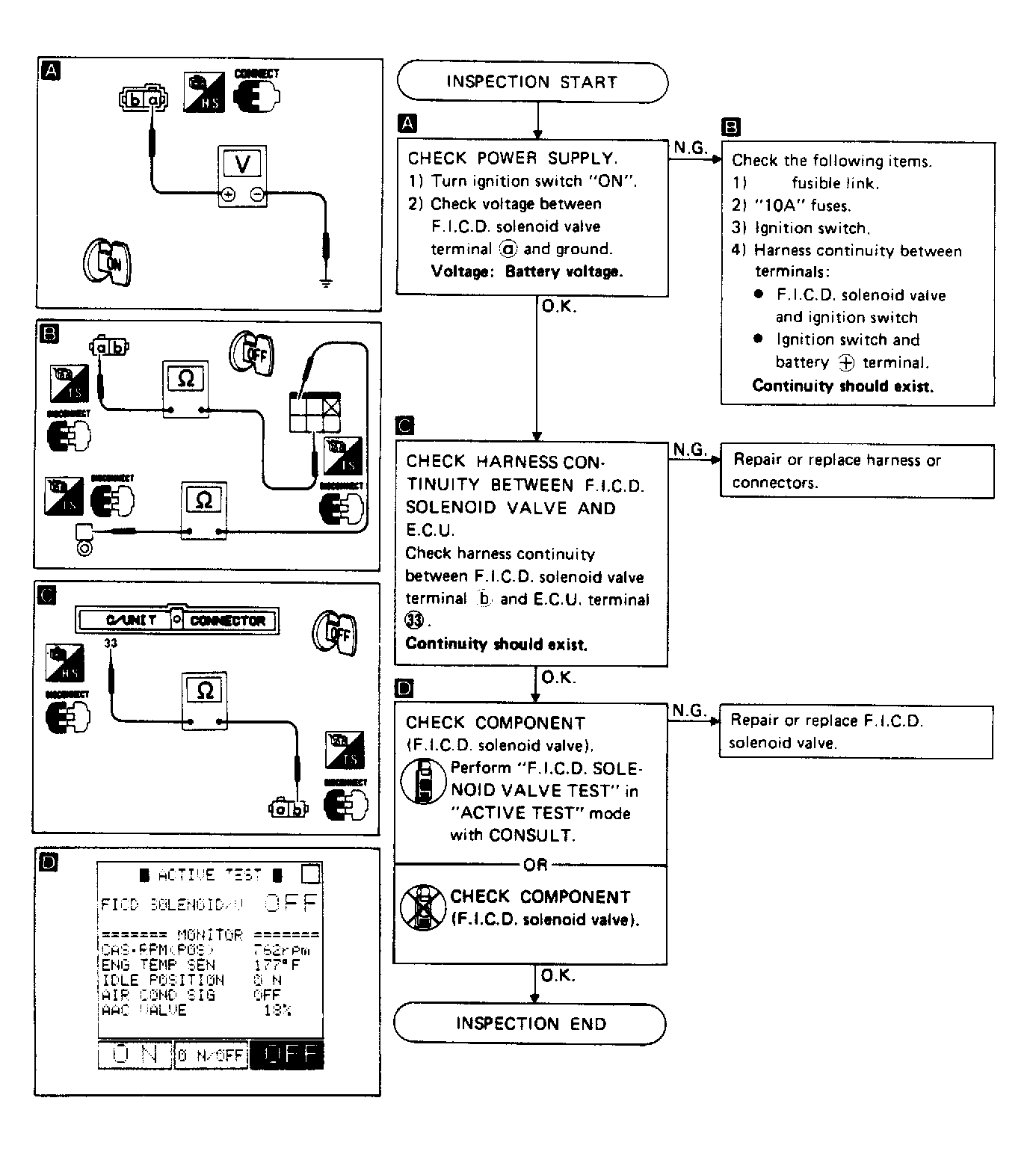

Fig 1: Fast Idle Control Device (FICD) Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
