Start Signal

WARNING: This page is about a different car, the 1989 Nissan 240SX. However, it is still accessible from the selected car via links, so may be relevant.

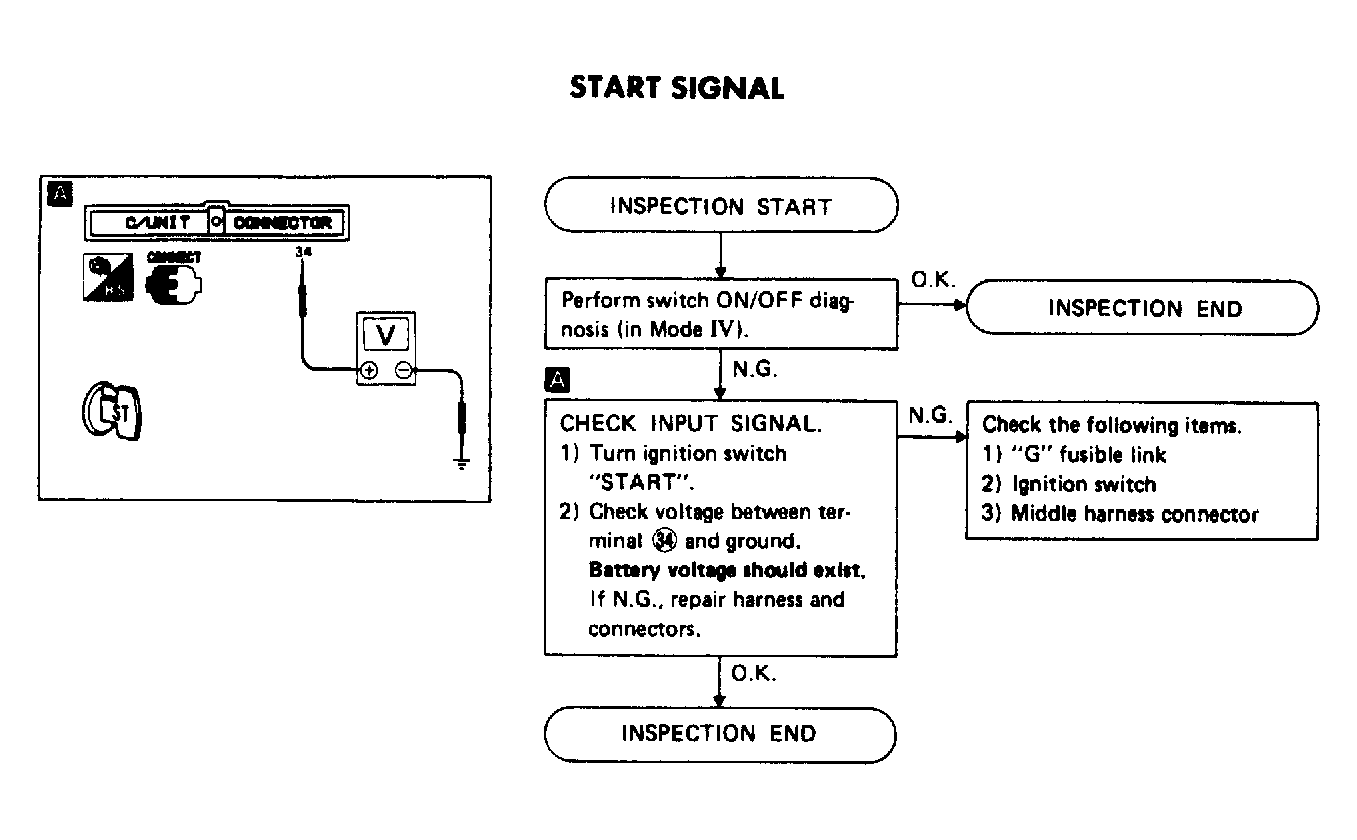

Start signal is used for ECU control of ignition system. See Figure .
