Removal And Installation
Pre-removal and Post-installation Operation
- Engine Cover Removal and Installation (Refer to ENGINE COVER ASSEMBLY ).
- Charge air cooler Outlet Air Pipe A Removal and Installation (Refer to CHARGE AIR COOLER ).
- Vacuum pipe Removal and Installation (Refer to TURBOCHARGER ASSEMBLY ).

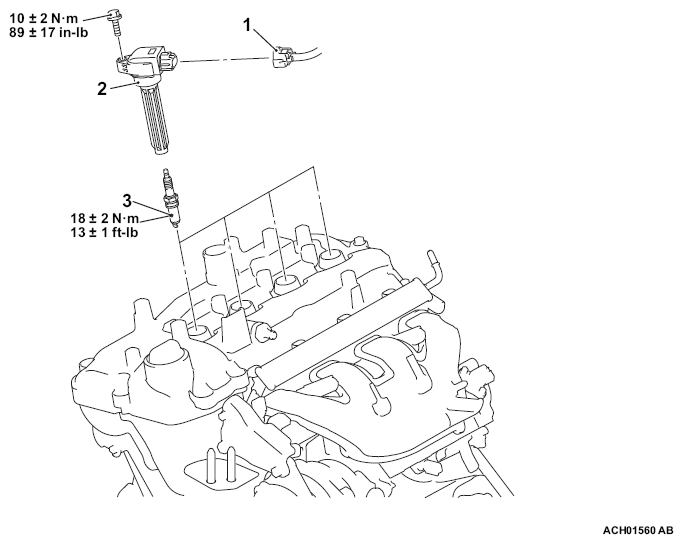

| Removal steps | |
|---|---|
| 1. | Ignition coil connector |
| 2. | Ignition coil |
| 3. | Spark plug |
