Removal And Installation: Notes

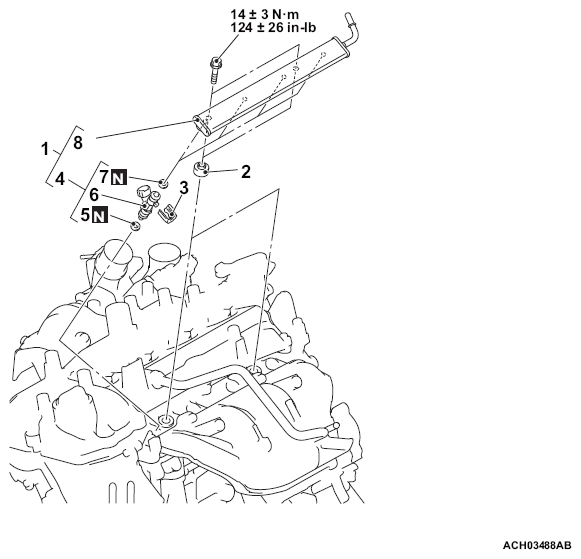

| Removal steps | |||
|---|---|---|---|
| <<A>> | >>E<< | 1. | Fuel fuel rail and fuel injector assembly |
| 2. | Fuel fuel rail insulator | ||
| >>D<< | 3. | Fuel injector support | |
| >>C<< | 4. | Fuel injector assembly | |
| >>B<< | 5. | O-ring | |
| 6. | Fuel injector | ||
| >>A<< | 7. | O-ring | |
| 8. | Fuel fuel rail | ||
Required Special Tools:
- MB992106: O-ring installer
