Removal And Installation: Notes
CAUTION:
- The wheel speed detection magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
- When removing and installing the front wheel hub assembly, make sure that the magnetic encoder for wheel speed detection (integrated with the inner oil seal) does not contact with surrounding parts to avoid damage.
- The parts indicated by * are the nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.
Post-installation operation
- Using your fingers, press the Ball Joint Dust Cover to check for a crack or damage.

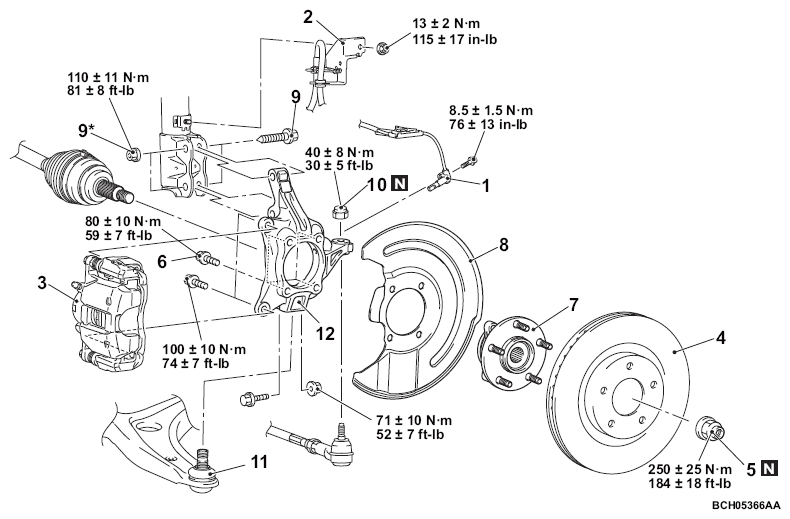

| Removal steps | |||
|---|---|---|---|
| 1. | Front wheel speed sensor | ||
| 2. | Brake hose bracket | ||
| <<A>> | 3- | Caliper assembly | |
| 4. | Brake disc | ||
| <<B>> | >>A<< | 5. | Driveshaft nut |
| <<C>> | 6. | Front hub assembly mounting bolt | |
| 7. | Front hub assembly | ||
| 8. | Dust shield | ||
| 9. | Knuckle assembly and strut mounting bolt and nuts | ||
| <<D>> | 10. | Self-locking nut (tie-rod end connection) | |
| 11. | Lower arm ball joint connection | ||
| 12. | Knuckle | ||
Required Special Tools:
- MB992700: Lock nut chisel
- MB990767: Front Hub and Flange Yoke Holder
- MB991897 or MB992011: Ball Joint Remover
