Removal And Installation: Notes

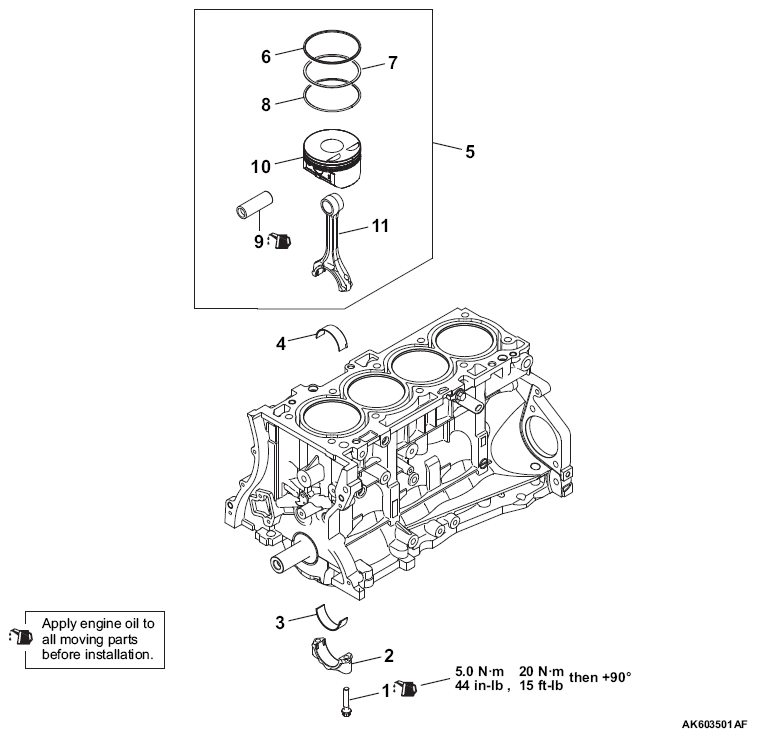

Fig 1: Removing/Installing Piston And Connecting Rod Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
	>>G<<	1.	Connecting rod cap bolt
<<A>>	>>F<<	2.	Connecting rod cap
	>>E<<	3.	Connecting rod bearing
	>>E<<	4.	Connecting rod bearing
	>>D<<	5.	Piston connecting rod assembly
	>>C<<	6.	Piston ring Number 1
	>>C<<	7.	Piston ring Number 2
	>>B<<	8.	Oil ring
<<B>>	>>A<<	9.	Piston pin
		10.	Piston
<<A>>		11.	Connecting rod

Required Special Tools :
